Extensions to 'ggplot2' providing low-level debug tools: statistics and geometries echoing their data argument. Layer manipulation: deletion, insertion, extraction and reordering of layers. Deletion of unused variables from the data object embedded in "ggplot" objects.
Details
The new facilities for cleanly defining new stats and geoms added to package 'ggplot2' in version 2.0.0 gave origin to this package. I needed tools to help me learn how layers work and to debug the extensions to 'ggplot2' that I was developing. I share them through this package in the hope that they will help other users of 'ggplot2' understand how this this very popular graphics package works internally. The vignettes provide examples of how to use these tools both for debugging and learning how ggplots are stored.
Extensions provided:
"Debug" stats and a "debug" geom that print to the console a summary of their
datainput.Functions for inspecting and manipulating the list of layers of a ggplot object.
Functions for exploring and manipulating the data embedded in ggplot objects, including dropping unused variables.
References
Package 'tidyverse' web site at https://www.tidyverse.org/
Package 'ggplot2' documentation at https://ggplot2.tidyverse.org/
Package 'ggplot2' source code at https://github.com/tidyverse/ggplot2
Author
Maintainer: Pedro J. Aphalo pedro.aphalo@helsinki.fi (ORCID)
Examples
# echo the 'data' and 'params' as received by 'draw_panel()'
ggplot(mtcars, aes(cyl, mpg, color = factor(cyl))) +
geom_point() +
geom_debug_panel()
#> [1] "PANEL 1; group(s) 1, 2, 3; 'draw_panel()' input 'data' (head):"
#> colour x y PANEL group
#> 1 #00BA38 6 21.0 1 2
#> 2 #00BA38 6 21.0 1 2
#> 3 #F8766D 4 22.8 1 1
#> 4 #00BA38 6 21.4 1 2
#> 5 #619CFF 8 18.7 1 3
#> 6 #00BA38 6 18.1 1 2
#> [1] "PANEL 1; group(s) 1, 2, 3; 'draw_panel()' input 'params' (summary):"
#> Length Class Mode
#> x 11 ViewScale environment
#> x.sec 11 ViewScale environment
#> x.range 2 -none- numeric
#> y 11 ViewScale environment
#> y.sec 11 ViewScale environment
#> y.range 2 -none- numeric
#> guides 4 Guides environment

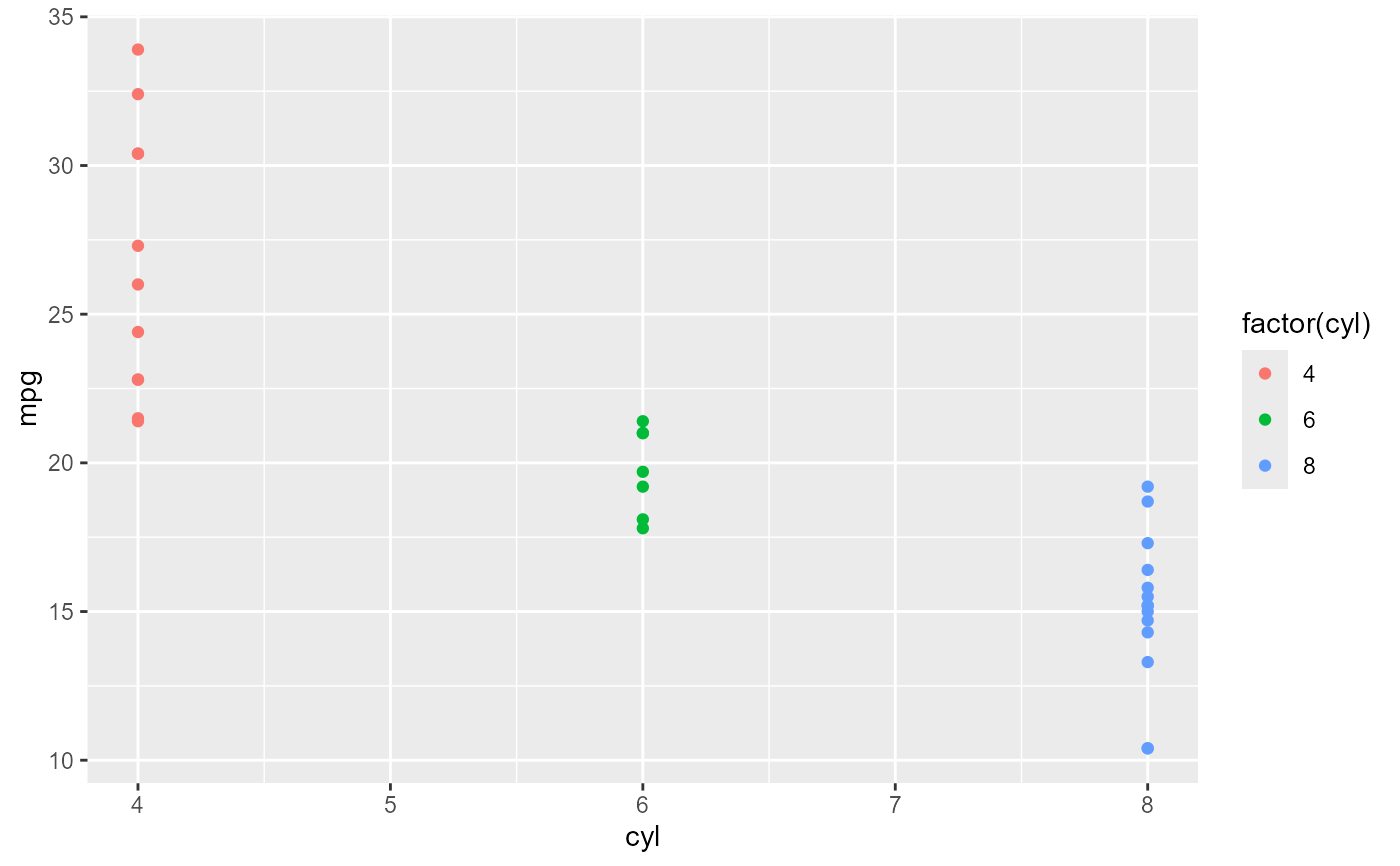

# echo the 'data' and 'params' as received by 'draw_group()'
ggplot(mtcars, aes(cyl, mpg, color = factor(cyl))) +
geom_point() +
geom_debug_group()
#> [1] "PANEL 1; group(s) 1; 'draw_group()' input 'data' (head):"
#> colour x y PANEL group
#> 3 #F8766D 4 22.8 1 1
#> 8 #F8766D 4 24.4 1 1
#> 9 #F8766D 4 22.8 1 1
#> 18 #F8766D 4 32.4 1 1
#> 19 #F8766D 4 30.4 1 1
#> 20 #F8766D 4 33.9 1 1
#> [1] "PANEL 1; group(s) 1; 'draw_group()' input 'params' (summary):"
#> Length Class Mode
#> x 11 ViewScale environment
#> x.sec 11 ViewScale environment
#> x.range 2 -none- numeric
#> y 11 ViewScale environment
#> y.sec 11 ViewScale environment
#> y.range 2 -none- numeric
#> guides 4 Guides environment
#> [1] "PANEL 1; group(s) 2; 'draw_group()' input 'data' (head):"
#> colour x y PANEL group
#> 1 #00BA38 6 21.0 1 2
#> 2 #00BA38 6 21.0 1 2
#> 4 #00BA38 6 21.4 1 2
#> 6 #00BA38 6 18.1 1 2
#> 10 #00BA38 6 19.2 1 2
#> 11 #00BA38 6 17.8 1 2
#> [1] "PANEL 1; group(s) 2; 'draw_group()' input 'params' (summary):"
#> Length Class Mode
#> x 11 ViewScale environment
#> x.sec 11 ViewScale environment
#> x.range 2 -none- numeric
#> y 11 ViewScale environment
#> y.sec 11 ViewScale environment
#> y.range 2 -none- numeric
#> guides 4 Guides environment
#> [1] "PANEL 1; group(s) 3; 'draw_group()' input 'data' (head):"
#> colour x y PANEL group
#> 5 #619CFF 8 18.7 1 3
#> 7 #619CFF 8 14.3 1 3
#> 12 #619CFF 8 16.4 1 3
#> 13 #619CFF 8 17.3 1 3
#> 14 #619CFF 8 15.2 1 3
#> 15 #619CFF 8 10.4 1 3
#> [1] "PANEL 1; group(s) 3; 'draw_group()' input 'params' (summary):"
#> Length Class Mode
#> x 11 ViewScale environment
#> x.sec 11 ViewScale environment
#> x.range 2 -none- numeric
#> y 11 ViewScale environment
#> y.sec 11 ViewScale environment
#> y.range 2 -none- numeric
#> guides 4 Guides environment

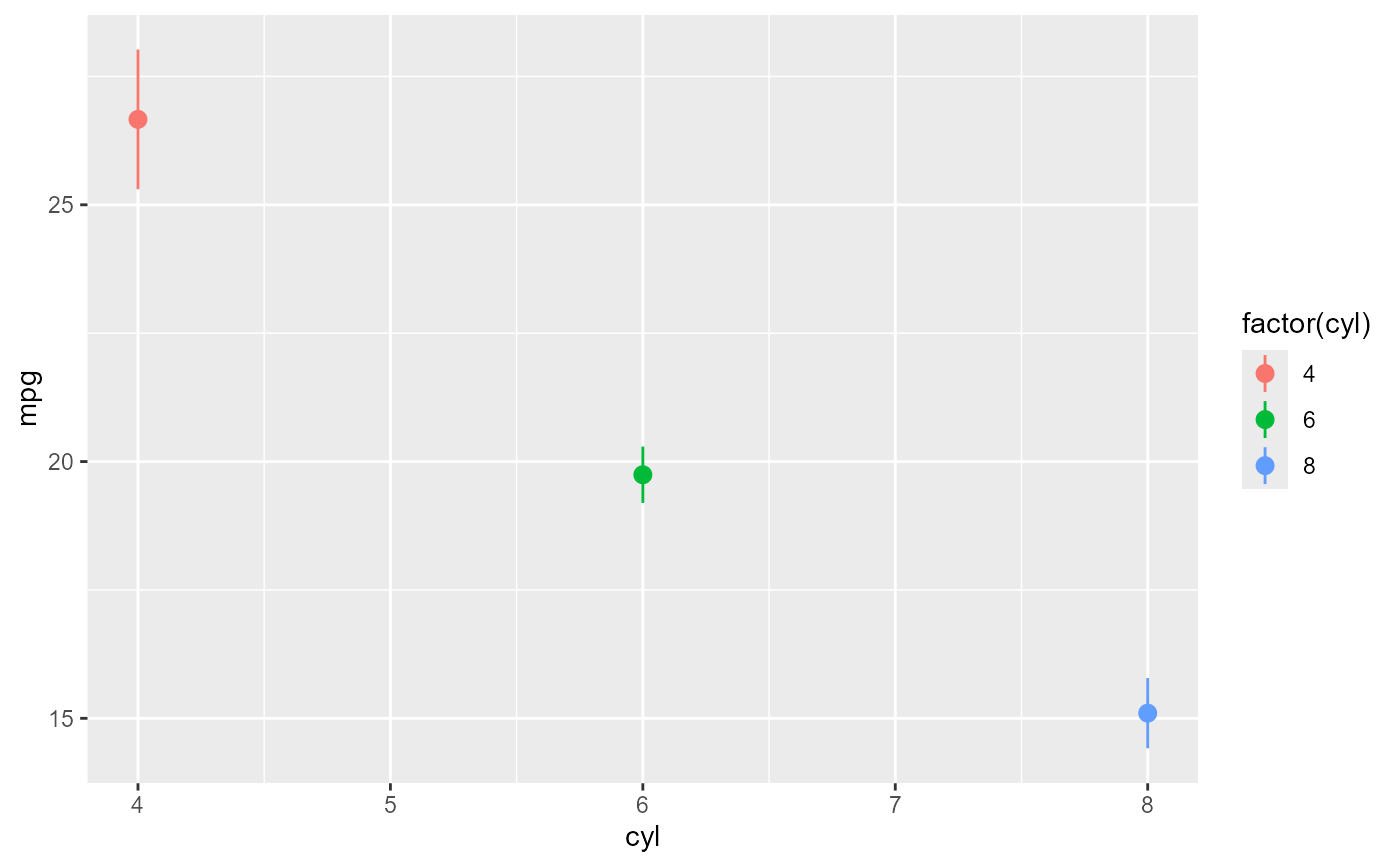

# echo the 'data' and 'params' as received by 'draw_panel()'
ggplot(mtcars, aes(cyl, mpg, colour = factor(cyl))) +
stat_summary(fun.data = "mean_se") +
stat_summary(fun.data = "mean_se", geom = "debug_panel")
#> [1] "PANEL 1; group(s) 1, 2, 3; 'draw_function()' input 'data' (head):"
#> colour x group y ymin ymax PANEL flipped_aes orientation
#> 1 #F8766D 4 1 26.66364 25.30387 28.02340 1 FALSE NA
#> 2 #00BA38 6 2 19.74286 19.19346 20.29225 1 FALSE NA
#> 3 #619CFF 8 3 15.10000 14.41580 15.78420 1 FALSE NA
# echo the 'data' received by 'compute_panel()'
ggplot(mtcars, aes(cyl, mpg, color = factor(cyl))) +
geom_point() +
stat_debug_panel()
#> [1] "PANEL 1; group(s) 1, 2, 3; 'compute_panel()' input 'data' (head):"
#> x y colour PANEL group
#> 1 6 21.0 6 1 2
#> 2 6 21.0 6 1 2
#> 3 4 22.8 4 1 1
#> 4 6 21.4 6 1 2
#> 5 8 18.7 8 1 3
#> 6 6 18.1 6 1 2
# echo the 'data' received by 'compute_group()'
ggplot(mtcars, aes(cyl, mpg, color = factor(cyl))) +
geom_point() +
stat_debug_group()
#> [1] "PANEL 1; group(s) 1; 'compute_group()' input 'data' (head):"
#> x y colour PANEL group
#> 3 4 22.8 4 1 1
#> 8 4 24.4 4 1 1
#> 9 4 22.8 4 1 1
#> 18 4 32.4 4 1 1
#> 19 4 30.4 4 1 1
#> 20 4 33.9 4 1 1
#> [1] "PANEL 1; group(s) 2; 'compute_group()' input 'data' (head):"
#> x y colour PANEL group
#> 1 6 21.0 6 1 2
#> 2 6 21.0 6 1 2
#> 4 6 21.4 6 1 2
#> 6 6 18.1 6 1 2
#> 10 6 19.2 6 1 2
#> 11 6 17.8 6 1 2
#> [1] "PANEL 1; group(s) 3; 'compute_group()' input 'data' (head):"
#> x y colour PANEL group
#> 5 8 18.7 8 1 3
#> 7 8 14.3 8 1 3
#> 12 8 16.4 8 1 3
#> 13 8 17.3 8 1 3
#> 14 8 15.2 8 1 3
#> 15 8 10.4 8 1 3
