Nudge labels to new positions

position_nudge_to() is generally useful for adjusting the position of labels or text, both on a discrete or continuous scale. position_nudge_to() differs from position_nudge in that the coordinates of the new position are given directly, rather than as a displacement from the original location. It optionally sets an even distance among positions. As other position functions in this package, it preserves the original position to allow the text to be linked back to its original position with a segment or arrow.

Usage

position_nudge_to(
  x = NULL,
  y = NULL,
  x.action = c("none", "spread"),
  y.action = c("none", "spread"),
  x.distance = "equal",
  y.distance = "equal",
  x.expansion = 0,
  y.expansion = 0,
  kept.origin = c("original", "none")
)

Arguments

x, y

Coordinates of the destination position. A vector of mode numeric, that is extended if needed, to the same length as rows there are in data. The default, NULL, leaves the original coordinates unchanged.

x.action, y.action

character string, one of "none", or "spread". With "spread" distributing the positions within the range of argument x or y, if non-null, or the range the variable mapped to x or y, otherwise.

x.distance, y.distance

character or numeric Currently only "equal" is implemented.

x.expansion, y.expansion

numeric vectors of length 1 or 2, as a fraction of width of the range.

kept.origin

One of "original" or "none".

Value

A "Position" object.

Details

The nudged to x and/or y values replace the original ones in data, while the original coordinates are returned in x_orig and y_orig. Values supported are those of mode numeric, thus including dates and times.

If the length of x and/or y is more than one but less than rows are present in the data, the vector is both recycled and reordered so that the nudges are applied sequentially based on the data values. If their length matches the number of rows in data, they are assumed to be already in data order.

Note

Irrespective of the action, the ordering of rows in data is preserved.

See also

position_nudge, position_nudge_repel.

Other position adjustments: position_dodgenudge(), position_jitternudge(), position_nudge_center(), position_nudge_keep(), position_nudge_line(), position_stacknudge()

Examples

df <- data.frame(
  x = c(1,3,2,5,4,2.5),
  y = c(2, 1, 2.5, 1.8, 2.8, 1.5),
  label = c("abc","cd","d","c","bcd","a")
)

# default does nothing
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text(position = position_nudge_to())

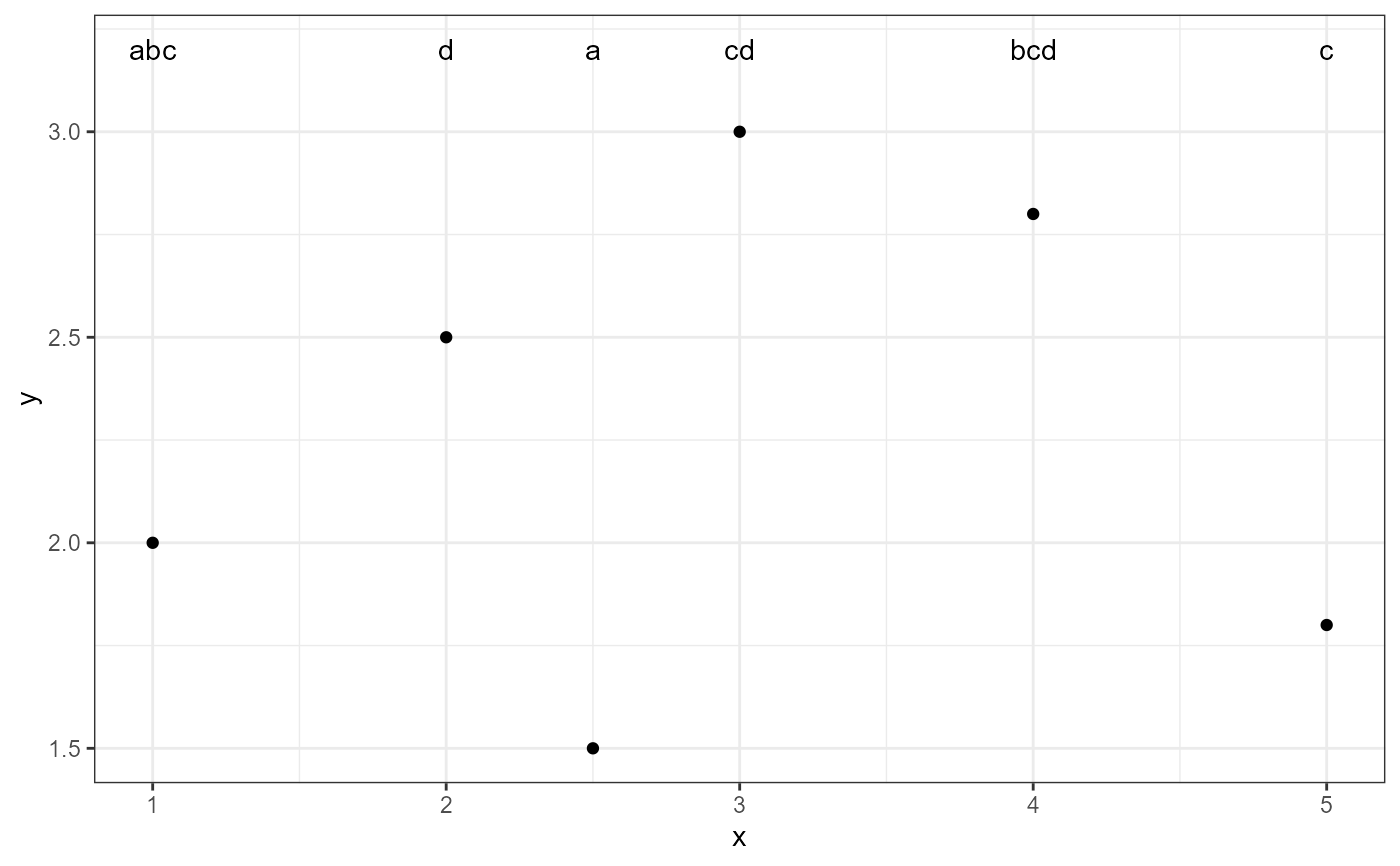

# a single y (or x) value nudges all observations to this data value
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text(position = position_nudge_to(y = 3))


# with a suitable geom, segments or arrows can be added
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position = position_nudge_to(y = 3))

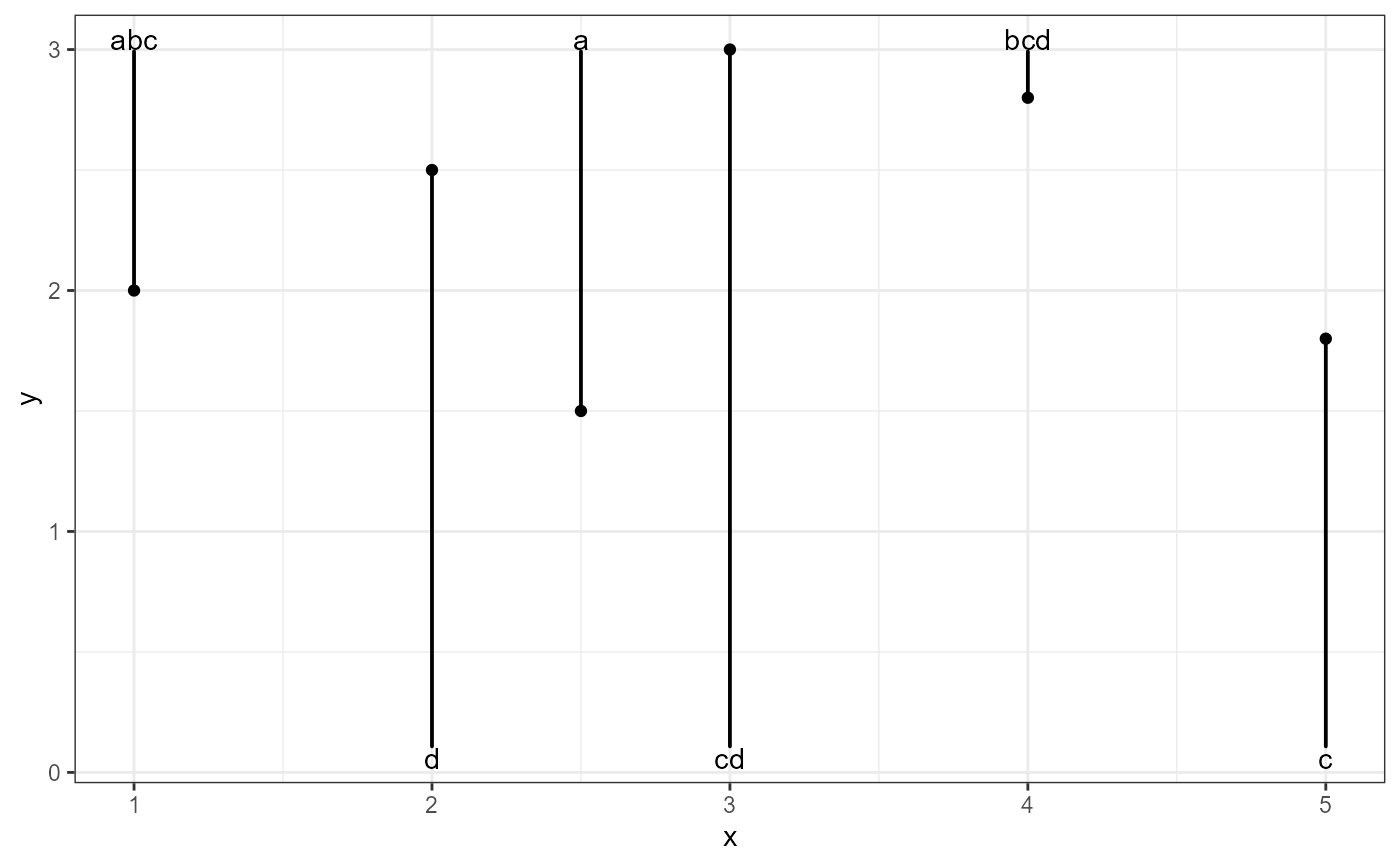

# alternating in y value order because y has fewer values than rows in data
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position = position_nudge_to(y = c(3, 0)))


ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position = position_nudge_to(y = c(0, 3)))


# in data row order because y has as many values as rows in data
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position = position_nudge_to(y = rep_len(c(0, 3), 6)))

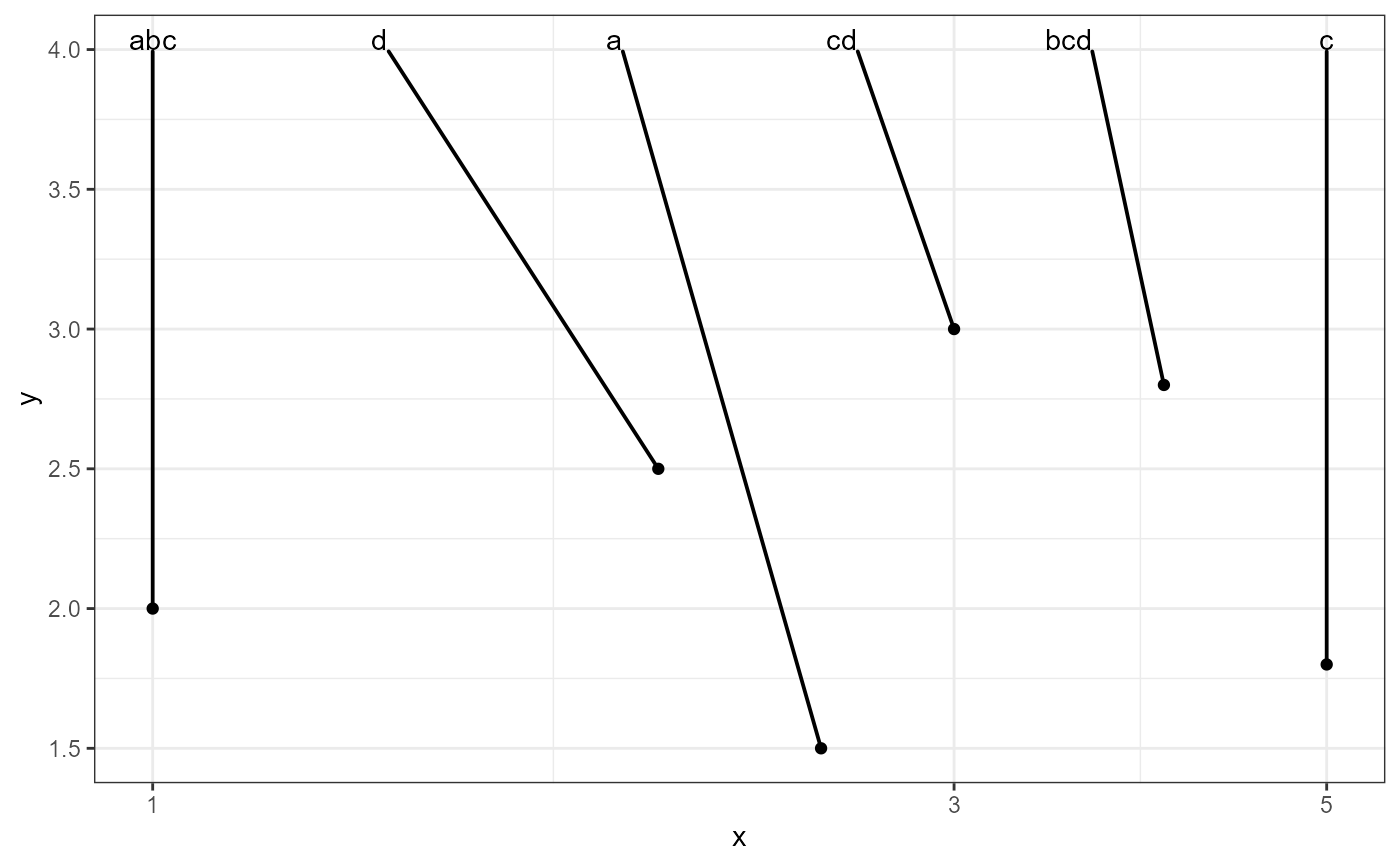

# spread the values at equal distance within the available space
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position =
    position_nudge_to(y = 3, x.action = "spread"))


# spread the values at equal distance within the expanded available space
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position =
    position_nudge_to(y = 3, x.action = "spread", x.expansion = 0.1))

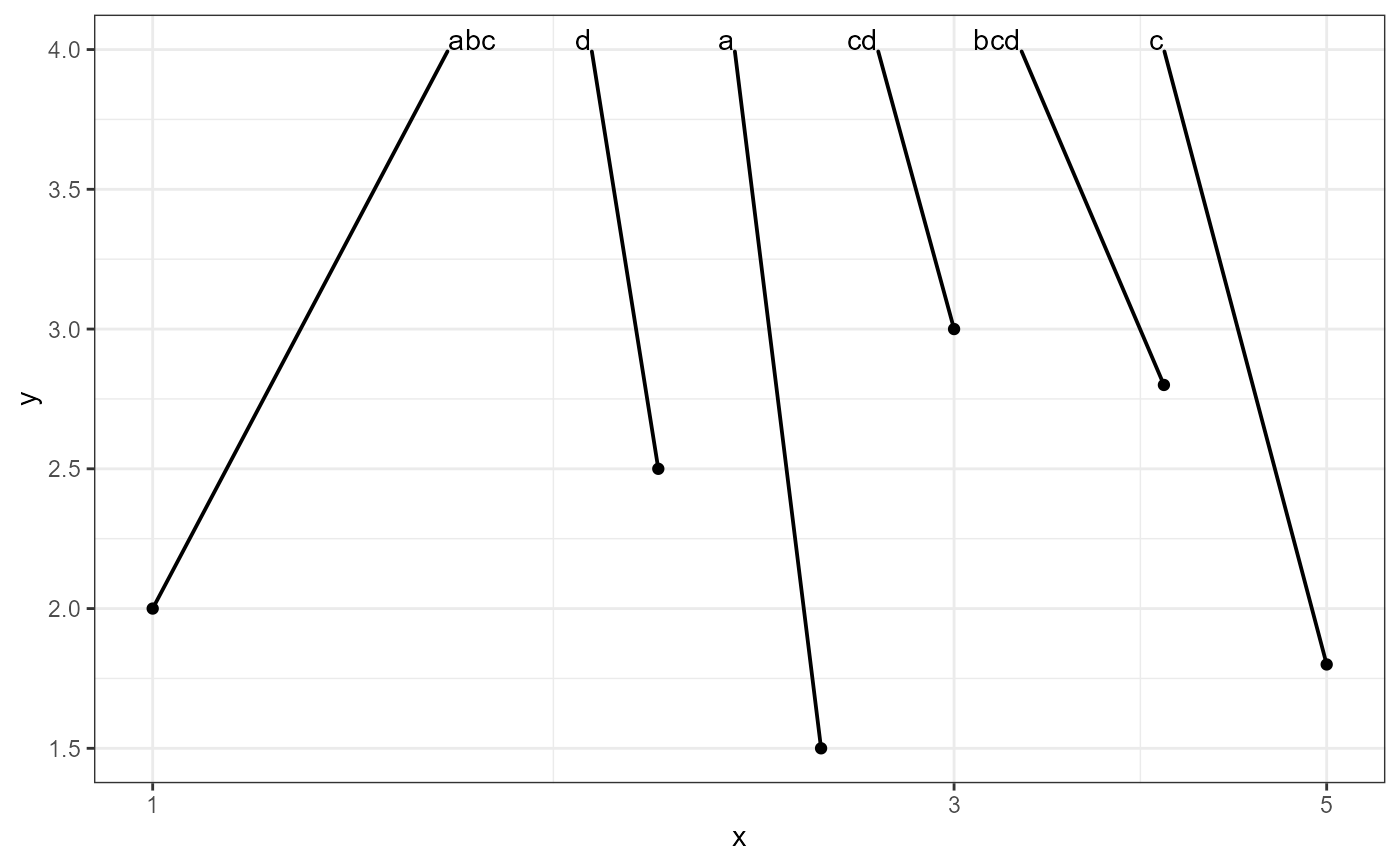

# spread the values at equal distance within the contracted available space
ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position =
    position_nudge_to(y = 3, x.action = "spread", x.expansion = -0.1))


# spread the values at equal distance within the range given by x

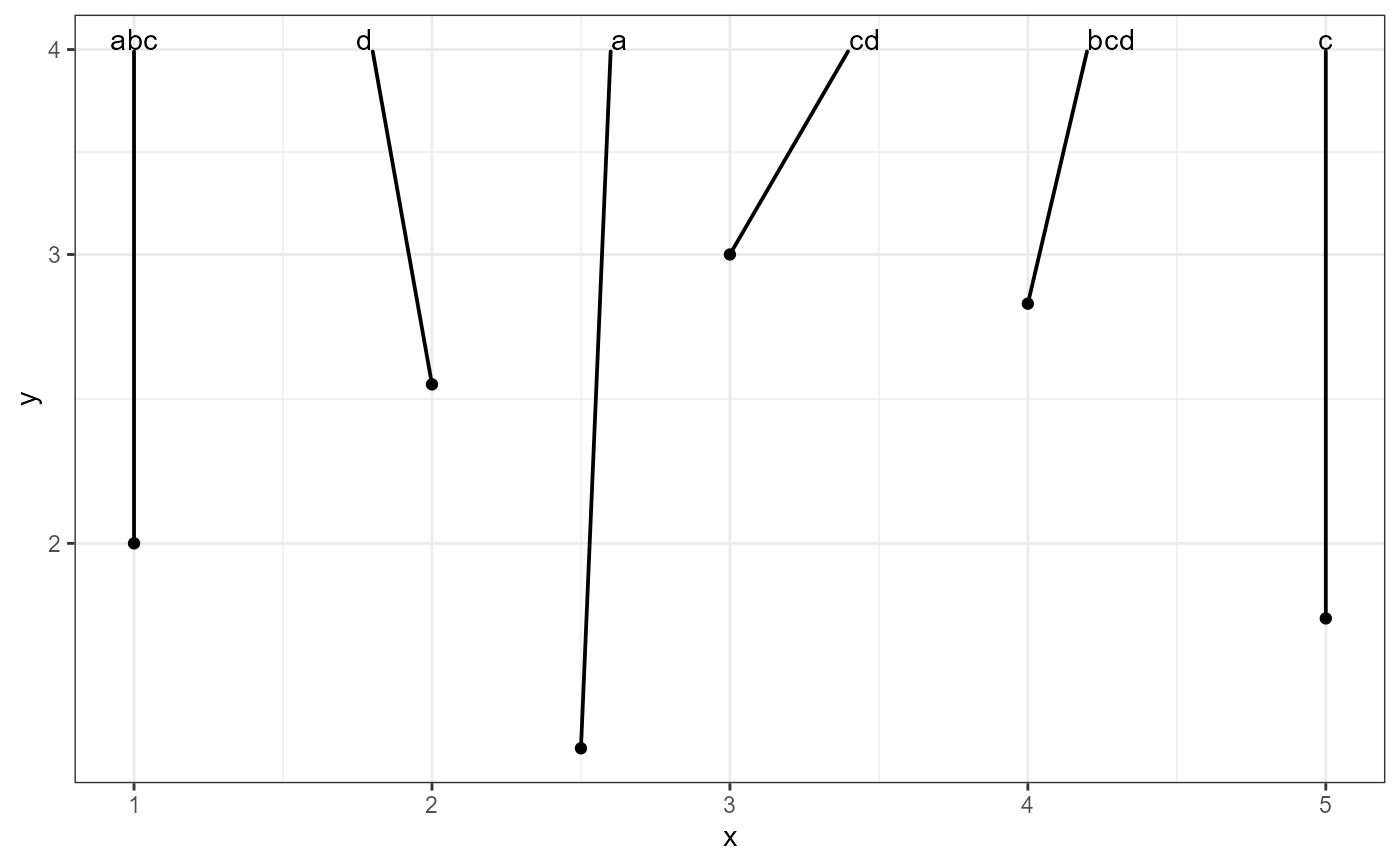

ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position =
    position_nudge_to(y = 3, x = c(2,4), x.action = "spread"),
    hjust = "center")


ggplot(df, aes(x, y, label = label)) +
  geom_point() +
  geom_text_s(position =
    position_nudge_to(y = 3, x = c(0,6), x.action = "spread"),
    hjust = "center")
