stat_dens2d_filter Filters-out/filters-in observations in regions of a plot panel with high density of observations, based on the values mapped to both x and y aesthetics. stat_dens2d_filter_g does the filtering by group instead of by panel. This second stat is useful for highlighting observations, while the first one tends to be most useful when the aim is to prevent clashes among text labels. If there is no mapping to label in data, the mapping is silently set to rownames(data).

Usage

stat_dens2d_filter(
  mapping = NULL,
  data = NULL,
  geom = "point",
  position = "identity",
  ...,
  keep.fraction = 0.1,
  keep.number = Inf,
  keep.sparse = TRUE,
  keep.these = FALSE,
  exclude.these = FALSE,
  these.target = "label",
  pool.along = c("xy", "x", "y", "none"),
  xintercept = 0,
  yintercept = 0,
  invert.selection = FALSE,
  na.rm = TRUE,
  show.legend = FALSE,
  inherit.aes = TRUE,
  h = NULL,
  n = NULL,
  return.density = FALSE
)

stat_dens2d_filter_g(
  mapping = NULL,
  data = NULL,
  geom = "point",
  position = "identity",
  ...,
  keep.fraction = 0.1,
  keep.number = Inf,
  keep.sparse = TRUE,
  keep.these = FALSE,
  exclude.these = FALSE,
  these.target = "label",
  pool.along = c("xy", "x", "y", "none"),
  xintercept = 0,
  yintercept = 0,
  invert.selection = FALSE,
  na.rm = TRUE,
  show.legend = FALSE,
  inherit.aes = TRUE,
  h = NULL,
  n = NULL,
  return.density = FALSE
)

Arguments

mapping

The aesthetic mapping, usually constructed with aes or aes_. Only needs to be set at the layer level if you are overriding the plot defaults.

data

A layer specific dataset - only needed if you want to override the plot defaults.

geom

The geometric object to use display the data.

position

The position adjustment to use for overlapping points on this layer

...

other arguments passed on to layer. This can include aesthetics whose values you want to set, not map. See layer for more details.

keep.fraction

numeric [0..1]. The fraction of the observations (or rows) in data to be retained.

keep.number

integer Set the maximum number of observations to retain, effective only if obeying keep.fraction would result in a larger number.

keep.sparse

logical If TRUE, the default, observations from the more sparse regions are retained, if FALSE those from the densest regions.

keep.these, exclude.these

character vector, integer vector, logical vector or function that takes one or more variables in data selected by these.target. Negative integers behave as in R's extraction methods. The rows from data indicated by keep.these and exclude.these are kept or excluded irrespective of the local density.

these.target

character, numeric or logical selecting one or more column(s) of data. If TRUE the whole data object is passed.

pool.along

character, one of "none", "x", "y", or "xy" indicating if selection should be done pooling the observations along the x, y, both axes or none based on quadrants given by xintercept and yintercept.

xintercept, yintercept

numeric The center point of the quadrants.

invert.selection

logical If TRUE, the complement of the selected rows are returned.

na.rm

a logical value indicating whether NA values should be stripped before the computation proceeds.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. borders.

h

vector of bandwidths for x and y directions. Defaults to normal reference bandwidth (see bandwidth.nrd). A scalar value will be taken to apply to both directions.

n

Number of grid points in each direction. Can be scalar or a length-2 integer vector

return.density

logical vector of lenght 1. If TRUE add columns "density" and "keep.obs" to the returned data frame.

Value

A plot layer instance. Using as output data a subset of the rows in input data retained based on a 2D-density-based filtering criterion.

Details

The local density of observations in 2D (x and y) is computed with function kde2d and used to select observations, passing to the geom a subset of the rows in its data input. The default is to select observations in sparse regions of the plot, but the selection can be inverted so that only observations in the densest regions are returned. Specific observations can be protected from being deselected and "kept" by passing a suitable argument to keep.these. Logical and integer vectors work as indexes to rows in data, while a character vector values are compared to the character values mapped to the label aesthetic. A function passed as argument to keep.these will receive as argument the values in the variable mapped to label and should return a character, logical or numeric vector as described above. If no variable has been mapped to label, row names are used in its place.

How many rows are retained in addition to those in keep.these is controlled with arguments passed to keep.number and keep.fraction. keep.number sets the maximum number of observations selected, whenever keep.fraction results in fewer observations selected, it is obeyed.

Computation of density and of the default bandwidth require at least two observations with different values. If data do not fulfill this condition, they are kept only if keep.fraction = 1. This is correct behavior for a single observation, but can be surprising in the case of multiple observations.

Parameters keep.these and exclude.these make it possible to force inclusion or exclusion of observations after the density is computed. In case of conflict, exclude.these overrides keep.these.

Note

Which points are kept and which not depends on how dense a grid is used and how flexible the density surface estimate is. This depends on the values passed as arguments to parameters n, bw and kernel. It is also important to be aware that both geom_text() and geom_text_repel() can avoid overplotting by discarding labels at the plot rendering stage, i.e., what is plotted may differ from what is returned by this statistic.

See also

stat_dens2d_labels and kde2d used internally. Parameters n, h in these statistics correspond to the parameters with the same name in this imported function. Limits are set to the limits of the plot scales.

Other statistics returning a subset of data: stat_dens1d_filter(), stat_dens1d_labels(), stat_dens2d_labels()

Examples


random_string <-
  function(len = 6) {
    paste(sample(letters, len, replace = TRUE), collapse = "")
  }

# Make random data.
set.seed(1001)
d <- tibble::tibble(
  x = rnorm(100),
  y = rnorm(100),
  group = rep(c("A", "B"), c(50, 50)),
  lab = replicate(100, { random_string() })
)

# filter (and here highlight) 1/10 observations in sparsest regions
ggplot(data = d, aes(x, y)) +
  geom_point() +
  stat_dens2d_filter(colour = "red")


# filter observations not in the sparsest regions
ggplot(data = d, aes(x, y)) +
  geom_point() +
  stat_dens2d_filter(colour = "blue", invert.selection = TRUE)


# filter observations in dense regions of the plot
ggplot(data = d, aes(x, y)) +
  geom_point() +
  stat_dens2d_filter(colour = "blue", keep.sparse = FALSE)


# filter 1/2 the observations
ggplot(data = d, aes(x, y)) +
  geom_point() +
  stat_dens2d_filter(colour = "red", keep.fraction = 0.5)


# filter 1/2 the observations but cap their number to maximum 12 observations
ggplot(data = d, aes(x, y)) +
  geom_point() +
  stat_dens2d_filter(colour = "red",
                     keep.fraction = 0.5,
                     keep.number = 12)

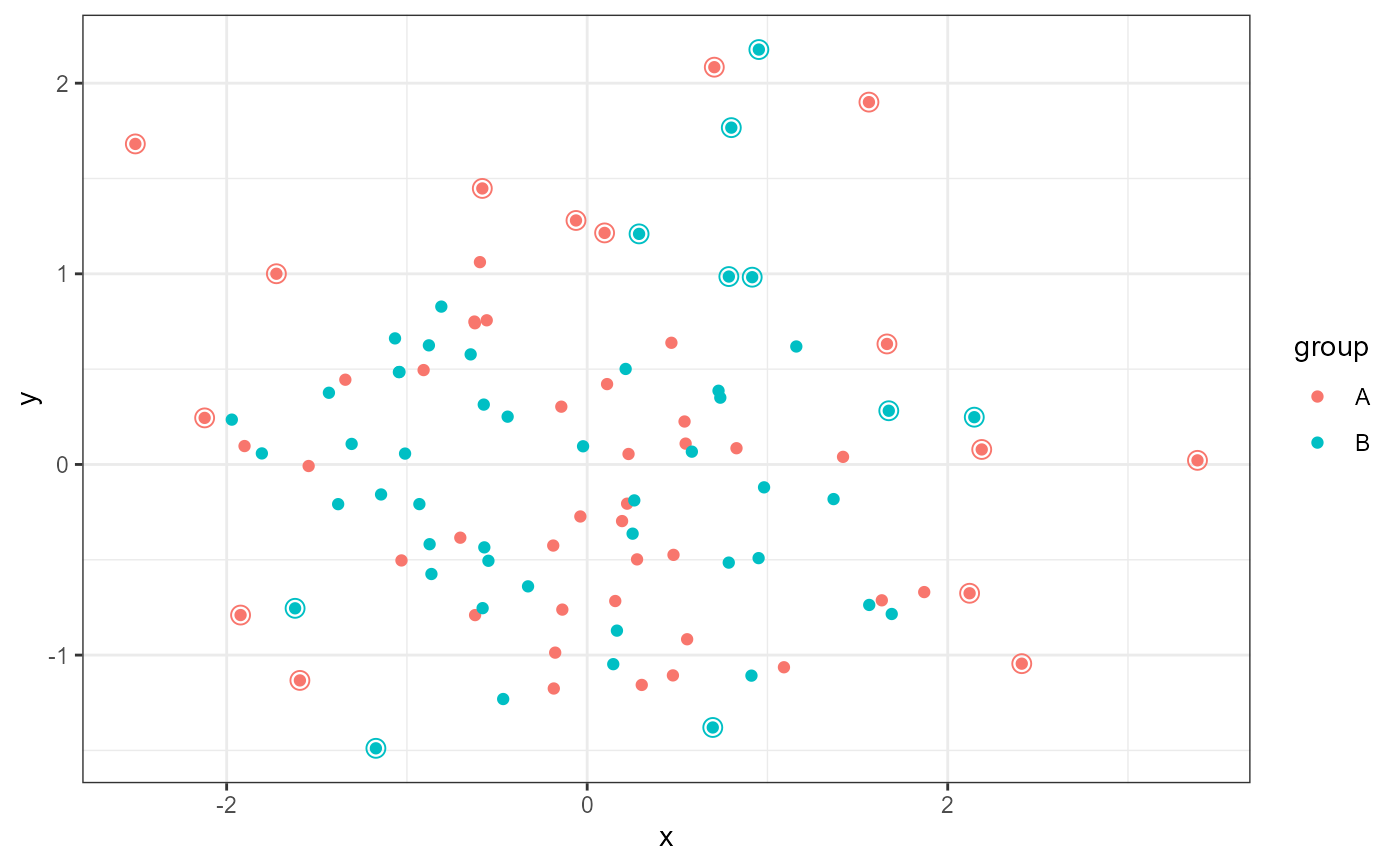

# density filtering done jointly across groups
ggplot(data = d, aes(x, y, colour = group)) +
  geom_point() +
  stat_dens2d_filter(shape = 1, size = 3, keep.fraction = 1/4)


# density filtering done independently for each group
ggplot(data = d, aes(x, y, colour = group)) +
  geom_point() +
  stat_dens2d_filter_g(shape = 1, size = 3, keep.fraction = 1/4)


# density filtering done jointly across groups by overriding grouping
ggplot(data = d, aes(x, y, colour = group)) +
  geom_point() +
  stat_dens2d_filter_g(colour = "black",
                       shape = 1, size = 3, keep.fraction = 1/4)


# label observations

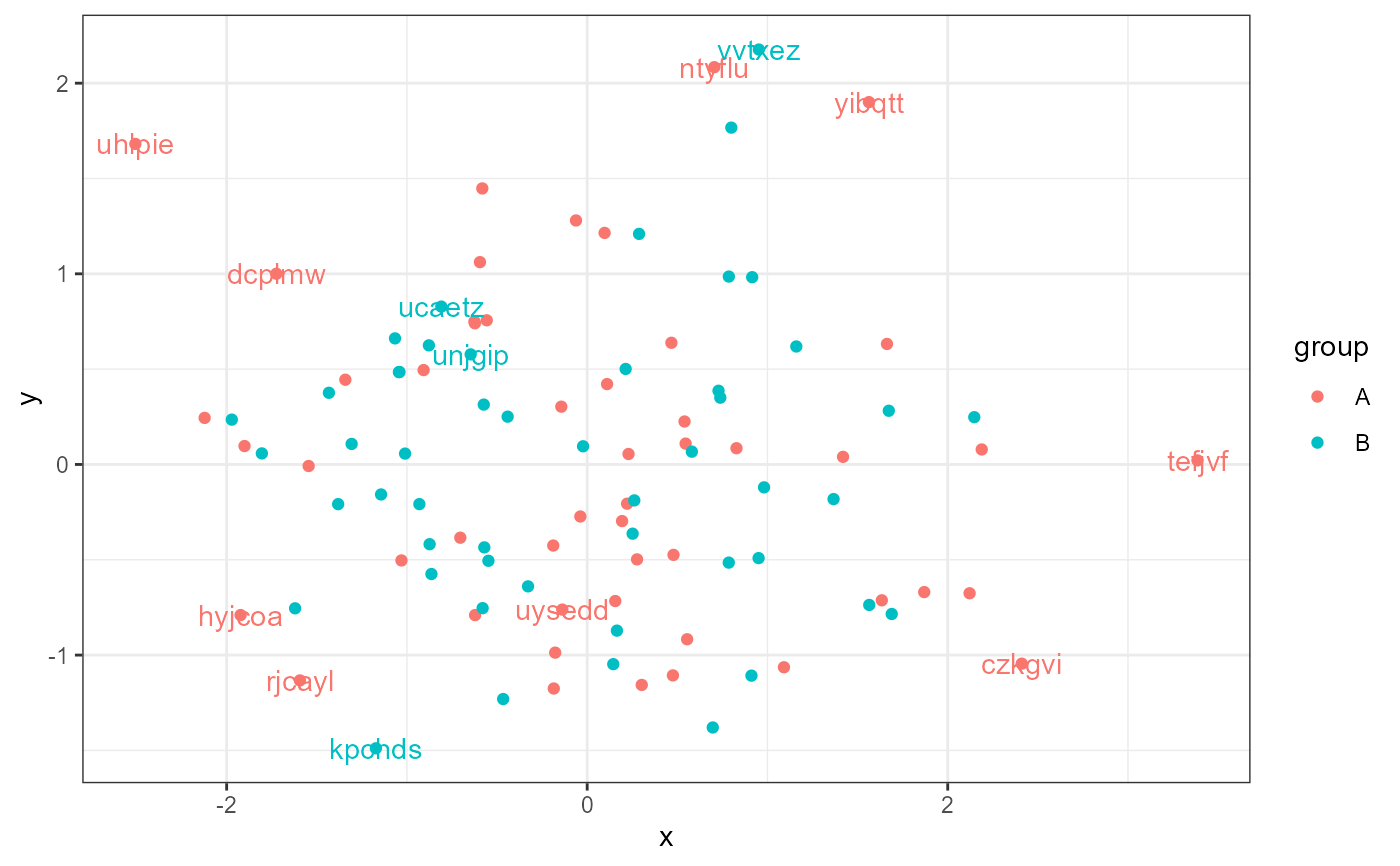

ggplot(data = d, aes(x, y, label = lab, colour = group)) +
  geom_point() +
  stat_dens2d_filter(geom = "text")


ggplot(data = d, aes(x, y, label = lab, colour = group)) +
  geom_point() +
  stat_dens2d_filter(geom = "text",
                     keep.these = function(x) {grepl("^u", x)})

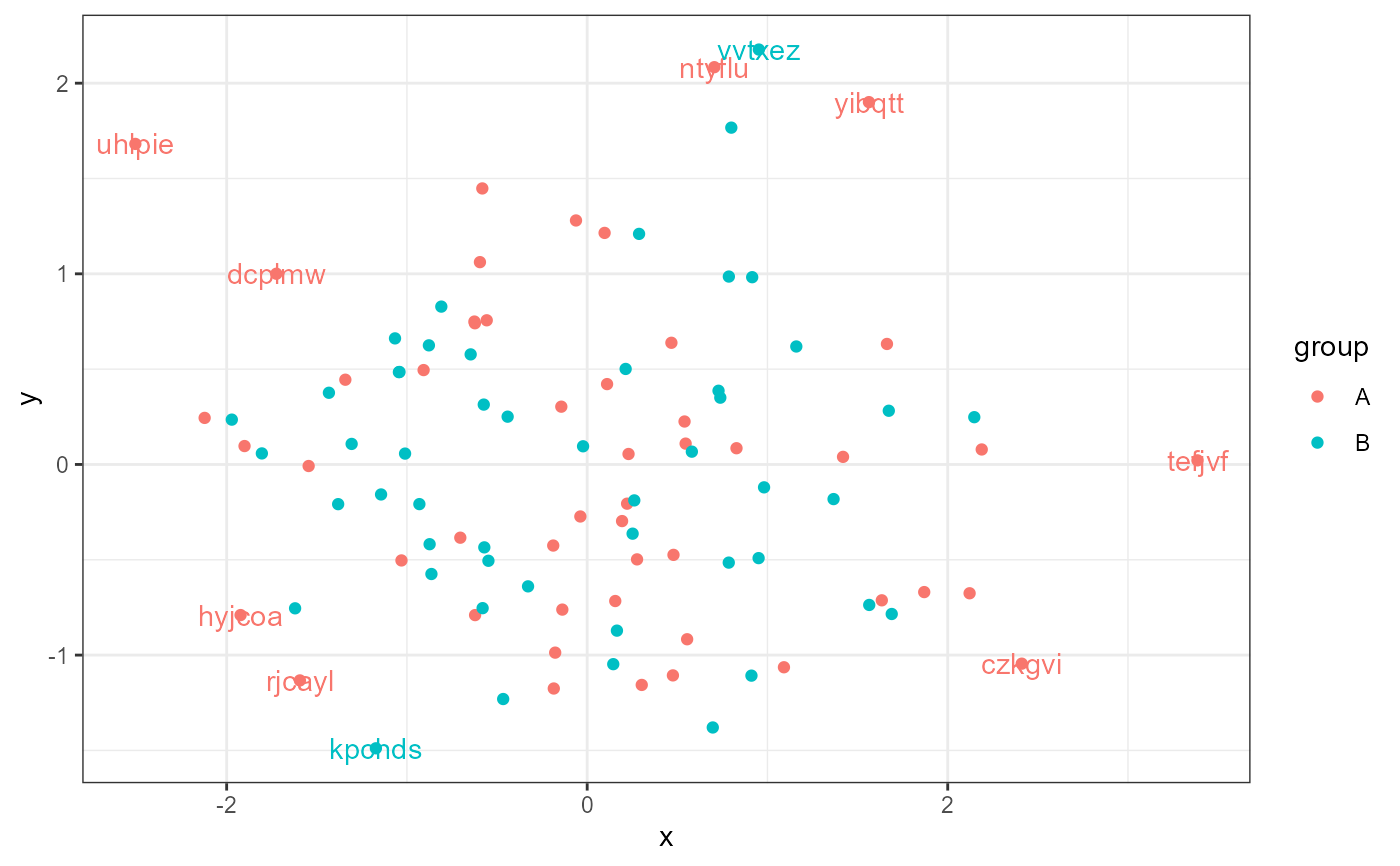

ggplot(data = d, aes(x, y, label = lab, colour = group)) +
  geom_point() +
  stat_dens2d_filter(geom = "text",
                     keep.these = function(x) {grepl("^u", x)})


ggplot(data = d, aes(x, y, label = lab, colour = group)) +
  geom_point() +
  stat_dens2d_filter(geom = "text",
                     keep.these = 1:30)


# looking under the hood with gginnards::geom_debug()
gginnards.installed <- requireNamespace("gginnards", quietly = TRUE)
if (gginnards.installed) {
  library(gginnards)

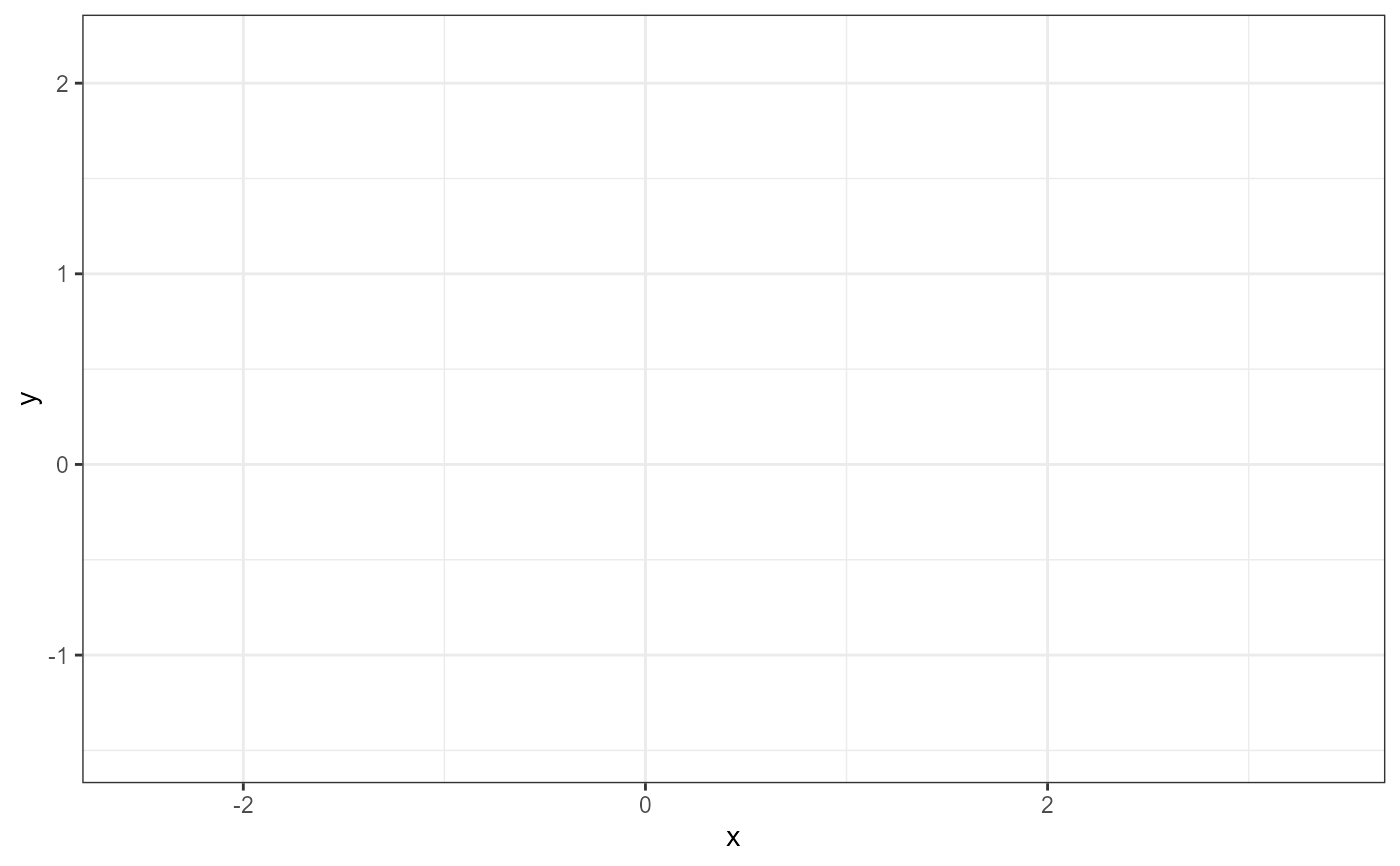

  ggplot(data = d, aes(x, y, label = lab, colour = group)) +
    stat_dens2d_filter(geom = "debug")

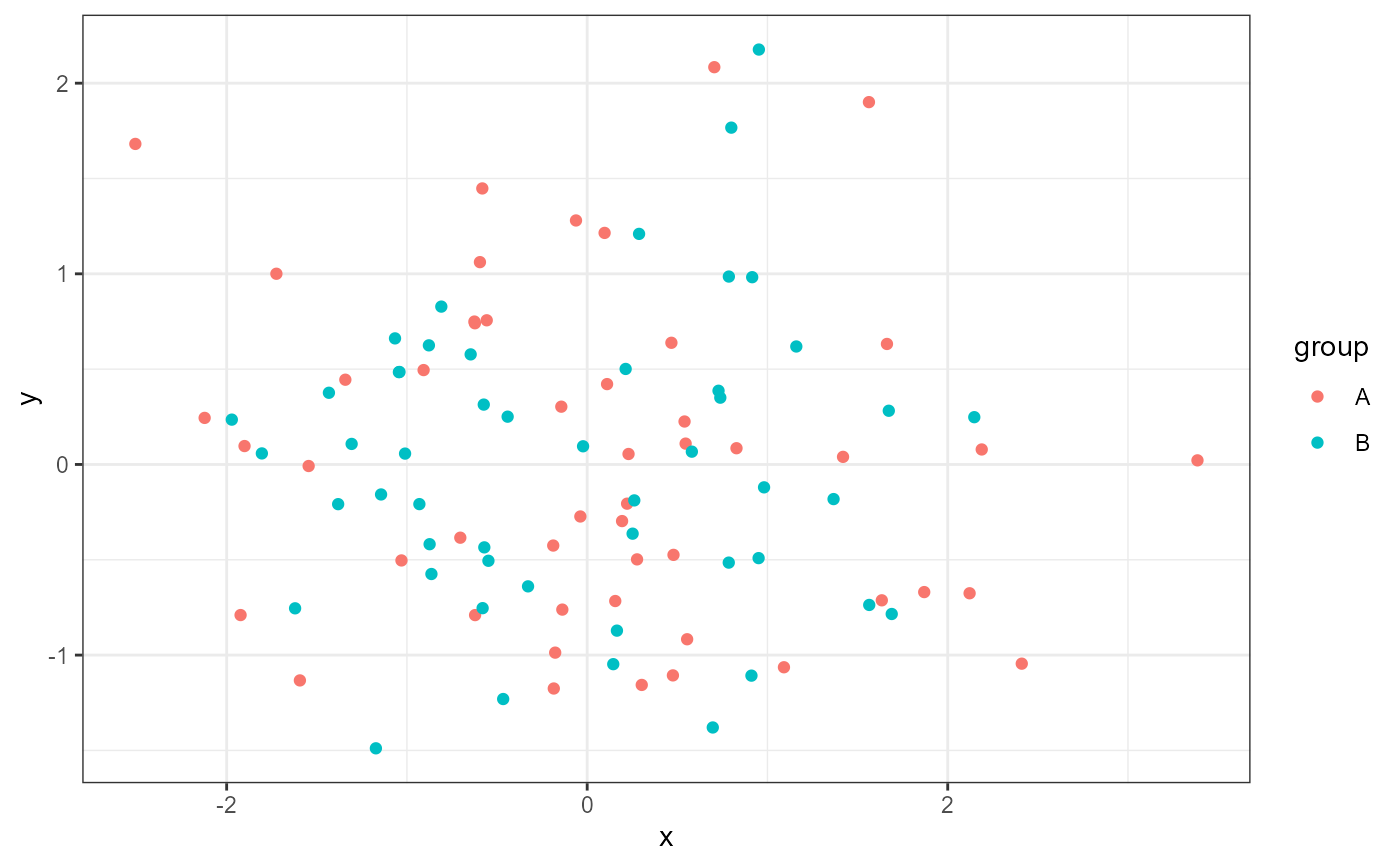

  ggplot(data = d, aes(x, y, label = lab, colour = group)) +
    geom_point() +
    stat_dens2d_filter(geom = "debug", return.density = TRUE)
}

#> [1] "PANEL 1; group(s) 1, 2; 'draw_function()' input 'data' (head):"
#>    colour          x          y  label PANEL group keep.obs    density
#> 1 #F8766D -2.5065362  1.6814089 uhlpie     1     1     TRUE 0.01009701
#> 2 #F8766D -1.5937133 -1.1328282 rjcayl     1     1     TRUE 0.02714959
#> 3 #F8766D  1.5629506  1.9006755 yibqtt     1     1     TRUE 0.01839611
#> 4 #F8766D  2.4107390 -1.0449415 czkgvi     1     1     TRUE 0.02392334
#> 5 #F8766D -1.9227946 -0.7900107 hyjcoa     1     1     TRUE 0.02708956
#> 6 #F8766D  0.7051636  2.0839521 ntyflu     1     1     TRUE 0.02646842
#>   xintercept yintercept
#> 1          0          0
#> 2          0          0
#> 3          0          0
#> 4          0          0
#> 5          0          0
#> 6          0          0
