Article: Plotting transformed spectral data

Introduction

Package ggspectra extends ggplot2 with stats, geoms, scales and annotations suitable for light spectra. It also defines ggplot() and autoplot() methods specialized for the classes defined in package photobiology for storing different types of spectral data. The autoplot() methods are described separately in vignette User Guide: 2 Autoplot Methods and the ggplot() methods, statistics, and scales in User Guide: 1 Grammar of Graphics.

The new elements can be freely combined with methods and functions defined in packages ‘ggplot2’, scales, ggrepel, gganimate, cowplot and other extensions to ‘ggplot2’.

This article, formerly the third part of the User Guide, describes how to combine manipulation of spectral data with plotting. This streamlined coding is made possible by an enhancement implemented in ‘ggspectra’ (>= 0.3.5). In addition, some of the examples make use of methods available only in ‘photobiology’ (>= 0.10.0).

In ‘ggspectra’ (>= 0.3.5) the data member of gg (ggplot) objects remains as an object of the classes for spectral data defined in ‘photobiology’ instead of being converted into a plain data.frame. This makes it possible data manipulations in layers to be done with methods specific to spectral data. In other words, the data object used as default for individual plot layers retains its original attributes, including its class. This makes it possible to use methods applicable to the original object to modify it for individual plot layers.

The examples in this vignette depend conditionally on packages ‘rlang’, ‘magrittr’, and ‘gganimate’. If these packages are not available when the article is built, the code chunks that require them are not evaluated.

Set up

library(ggplot2)
library(photobiology)

## News at https://www.r4photobiology.info/

library(photobiologyWavebands)
library(ggspectra)
# if suggested packages are available
magrittr_installed <- requireNamespace("magrittr", quietly = TRUE)
rlang_installed <- requireNamespace("rlang", quietly = TRUE)
eval_chunks <- magrittr_installed && rlang_installed
if (eval_chunks) {
  library(magrittr)
  library(rlang)
} else {
  message("Please, install packages 'rlang' and 'magrittr'.")
}

##
## Attaching package: 'rlang'

## The following object is masked from 'package:magrittr':
##
##     set_names

gganimate_installed <- requireNamespace("gganimate", quietly = TRUE)

We change the default theme.

theme_set(theme_bw())

Applying methods to spectral data in plot layers

A single spectrum

In ‘ggspectra’ (< 0.3.5) we had to pass to the data parameter of layer functions always a data frame, or a transformation based on a method with an specialization for data,frame. A simple example passing spectral data to each layer function follows. Here to be able to use a method defined for source_spct objects like sun.spct we pass sun.spct as argument to method smooth_spct().

ggplot() +
  geom_line(data = sun.spct, mapping = aes(w.length, s.e.irrad)) +
  geom_line(data = smooth_spct(sun.spct, method = "supsmu"),
            mapping = aes(w.length, s.e.irrad),
            colour = "red", linewidth = 1)

In ‘ggspectra’ (< 0.3.5) we could also use R’s own pipe operator to make it easier to see the intention of the code, but still had to supply sun.spct twice.

ggplot() +
  geom_line(data = sun.spct, mapping = aes(w.length, s.e.irrad)) +
  geom_line(data = sun.spct |> smooth_spct(method = "supsmu"),
            mapping = aes(w.length, s.e.irrad),
            colour = "red", linewidth = 1)

In ‘ggspectra’ (>= 0.3.5) the class of the spectral objects stored by calls to ggplot() methods specific to them is not stripped, neither are other attributes used by package ‘photobiology’. Consequently, transformations in layers using default data can use the specialized methods from package ‘photobiology’. The next two code chunks query the class and print a summary to demonstrate this.

p <- ggplot(sun.spct) + geom_line()
class(p$data)

## [1] "source_spct"  "generic_spct" "tbl_df"       "tbl"          "data.frame"

summary(p$data)

## Summary of source_spct [522 x 2] object: anonymous
## Wavelength range 280-800 nm, step 0.9230769-1 nm
## Label: sunlight, simulated
## Measured on 2010-06-22 09:51:00 UTC
## Measured at 60.20911 N, 24.96474 E; Kumpula, Helsinki, FI
## Variables:
##  w.length: Wavelength [nm]
##  s.e.irrad: Spectral energy irradiance [W m-2 nm-1]
## --
##     w.length       s.e.irrad
##  Min.   :280.0   Min.   :0.0000
##  1st Qu.:409.2   1st Qu.:0.4115
##  Median :539.5   Median :0.5799
##  Mean   :539.5   Mean   :0.5160
##  3rd Qu.:669.8   3rd Qu.:0.6664
##  Max.   :800.0   Max.   :0.8205

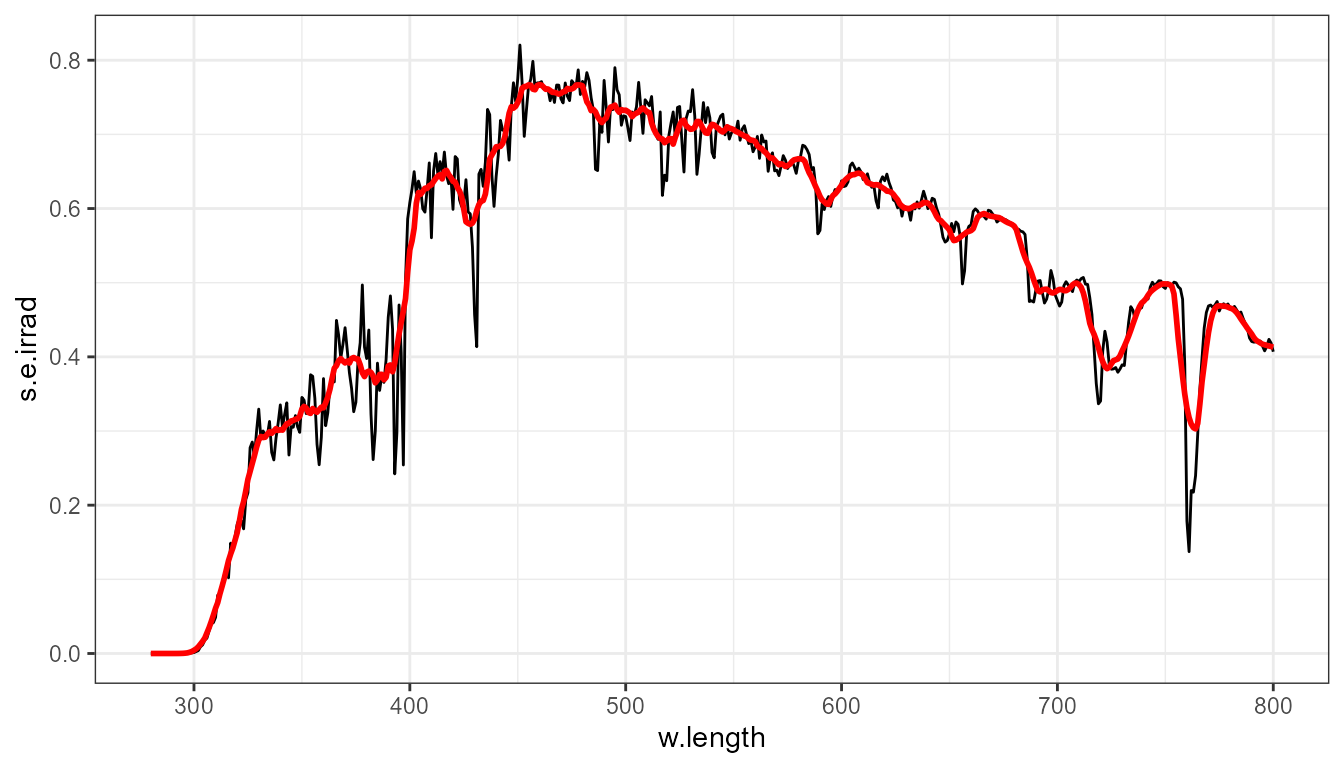

To ensure that the same data are used in both plot layers the code can be simplified using . to refer to the default data in the ggplot object (p$data in the example above). The mapping to aesthetics remains valid because smooth_spct() returns a new source_spct object with the same column names as sun.spct, which was passed as argument to data.

ggplot(sun.spct) +
  geom_line() +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red", linewidth = 1)

Alternatively, without depending on ‘magrittr’ or ‘rlang’ we can pass an anonymous function as argument to data to the same effect, but possbly less clear code.

ggplot(sun.spct) +
  geom_line() +
  geom_line(data = function(x) {smooth_spct(x, method = "supsmu")},
            colour = "red", linewidth = 1)

The easiest approach to plotting photon spectral irradiance instead of spectral energy irradiance is to temporarily change the default radiation unit. An alternative approach is to replace the first two lines in the code chunk below by: ggplot(sun.spct, unit.out = "photon") +.

photon_as_default()
ggplot(sun.spct) +
  geom_line() +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red", linewidth = 1)
unset_radiation_unit_default()

Obviously, the default plot data does not need to be plotted, so this provides a roundabout way of applying methods,

ggplot(sun.spct) +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red", linewidth = 1)

which is equivalent to doing the transformation ahead of plotting.

sun.spct |>
  smooth_spct(method = "supsmu") |>
  ggplot() +
  geom_line(colour = "red", linewidth = 1)

However, when using different transformations in different layers we need to apply them in each layer. Here we compare three different smoothing methods.

ggplot(sun.spct) +
  geom_line(data = . %>% smooth_spct(method = "custom"),
            colour = "cornflowerblue", linewidth = 0.7) +
  geom_line(data = . %>% smooth_spct(method = "lowess"),
            colour = "green", linewidth = 0.7) +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red", linewidth = 0.7)

Of course, this approach works both with geoms and stats, but one should remember that these layer functions do not “see” the original data objects (neither the default nor that passed as argument to the layers’ data parameter), but instead a new data.frame containing the mapped variables in columns named according to aesthetics. The next example demonstrates this and illustrates that smoothing displaces the wavelength of maximum spectral irradiance.

ggplot(sun.spct) +
  geom_line() +
  stat_peaks(size = 3, span = NULL) +
  stat_peaks(geom = "vline", linetype = "dotted", span = NULL) +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red", linewidth = 1) +
  stat_peaks(data = . %>% smooth_spct(method = "supsmu"),
             colour = "red", size = 3, span = NULL) +
  stat_peaks(data = . %>% smooth_spct(method = "supsmu"),
             geom = "vline", colour = "red",
             linetype = "dotted", span = NULL)

We can easily highlight a wavelength range by overplotting the same line in a different colour.

ggplot(sun.spct) +
  geom_line() +
  geom_line(data = . %>% trim_wl(range = PAR()), colour = "red")

We can highlight a range of wavelengths by plotting the points using colours matching human colour vision. Method tag() adds colour definitions as a new column named wl.color to the default data of the layer, after wavelengths outside the range of wavelengths of visible light have been dropped or “trimmed out” by method trim_wl().

ggplot(sun.spct) +
  geom_line() +
  geom_point(data = . %>% trim_wl(range = VIS()) %>% tag(),
            mapping = aes(color = wl.color),
            shape = "circle", size = 1.3) +
  scale_color_identity()

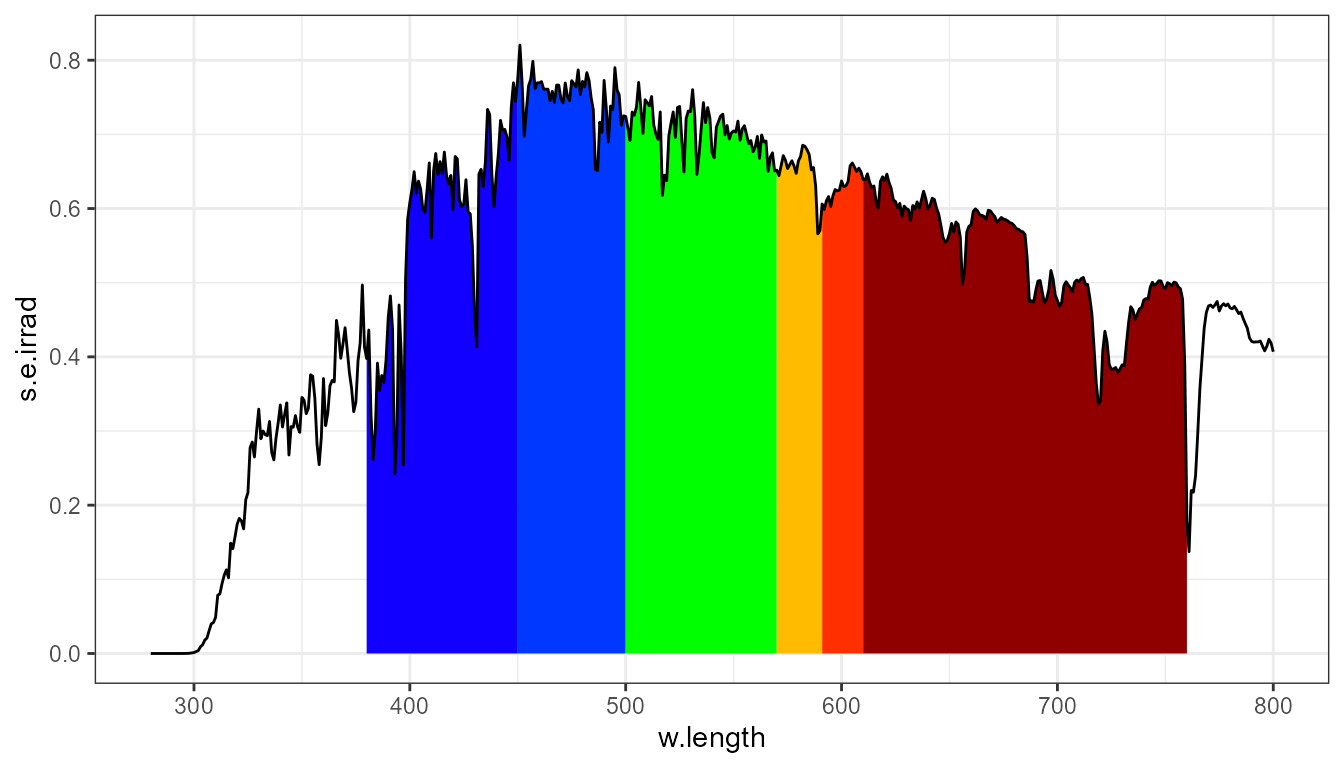

In the plot above, spectral irradiance as well as the wavelength at each data point are taken into account when computing the colours, while below, only the wavelength at the centre of each waveband is used because we passed w.band = VIS_bands() when calling tag().

ggplot(sun.spct) +
  geom_area(data = . %>% trim_wl(range = VIS()) %>% tag(w.band = VIS_bands()),
            mapping = aes(fill = wb.color)) +
  geom_line() +
  scale_fill_identity()

The examples above made use of sun.spct an object belonging to class "source_spct", containing data for a single spectrum. Package ‘photobiology’ defines classes for different types of spectral data, and a base class "generic_spct". Any object of belonging to one of these classes can be used as shown above for sun.spct. Next we show examples involving operations involving multiple spectra stored in a single R object.

Some of the methods from ‘photobiology’ are also defined for data.frame and can be used as summary functions with data that are not radiation spectra, such as any data seen by layer functions including stat_summary(). Furthermore, on-the-fly summaries and transformation can be used in any ggplot layer function and with any suitable function accepting data frames as input.

Multiple spectra

Package ‘photobiology’ supports two alternative ways of storing multiple spectra in a single R object: collections of spectra in objects of classes with names ending in _mspct such as source_mspct and in objects of classes with names ending in _spct such as source_spct in objects. When passed to ggplot() they are both added to the "gg" object as objects of one of the _spct classes. (The former are an specilaization of lists of data frames, while the second are an specialization of data frame, and, thus, compatible with ‘ggplot2’.)

We use for this example data for a time series of five spectra measured close to sunset. We need to add a mapping to the factor used to identify the individual spectra.

ggplot(data = sun_evening.spct) +
  aes(linetype = spct.idx) +
  geom_line()

Similarly as shown above for a single spectrum, we can smooth multiple spectra.

ggplot(data = sun_evening.spct) +
  aes(linetype = spct.idx) +
  geom_line(data = . %>% smooth_spct(method = "supsmu"))

If we normalize the spectra to one at their maxima we get a clearer view of how they differ in shape.

ggplot(data = sun_evening.spct) +
  aes(linetype = spct.idx) +
  geom_line(data = . %>% normalize())

It is even clearer if we scale the spectra so that the areas under the different curves are the same.

ggplot(data = sun_evening.spct) +
  aes(linetype = spct.idx) +
  geom_line(data = . %>% fscale())

The three examples above are, of course, equivalent to applying the transformation to data for the whole plot as they have a single layer. Transforming data when calling layer functions is useful, as shown in the previous section, when different transformations to the data are applied in different layers of the same plot.

While above we used sun_evening.spct, here we use sun_evening.mspct, and plot only two out of the five spectra. Objects sun_evening.spct and sun_evening.mspct contain the same data but belong to classes "source_spct" and "source_mspct", respectively.

ggplot(data = sun_evening.mspct[c(1, 5)]) +
  aes(linetype = spct.idx) +
  geom_line() +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red")

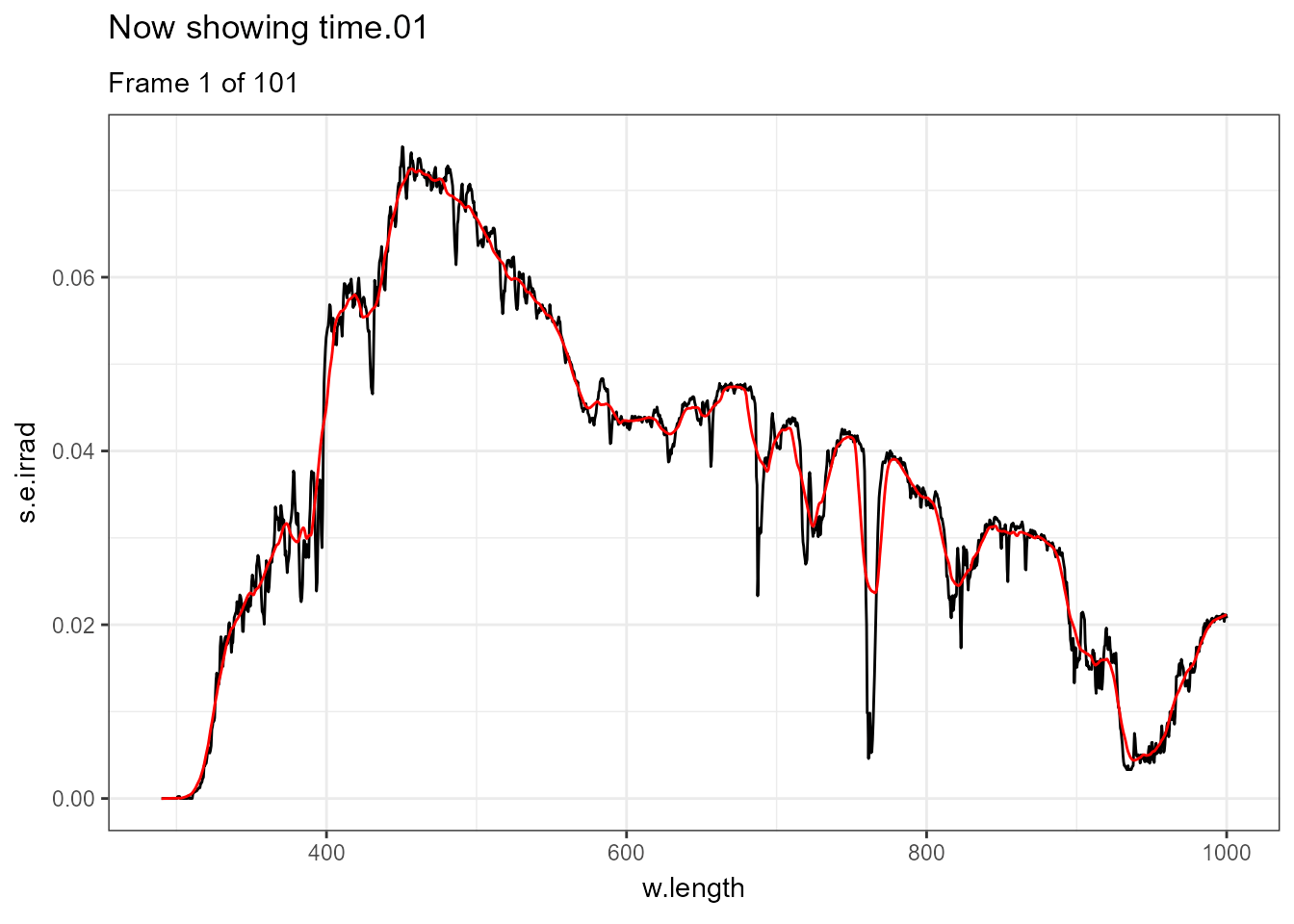

There are few situations where applying different transformations to multiple spectra does not result in overcrowded plots, one example being animated plots where different layers are displayed sequentially.

library(gganimate)
ggplot(data = sun_evening.mspct) +
  geom_line() +
  geom_line(data = . %>% smooth_spct(method = "supsmu"),
            colour = "red") +
  transition_states(spct.idx,
                    transition_length = 2,
                    state_length = 1) +
  ggtitle('Now showing {closest_state}',
          subtitle = 'Frame {frame} of {nframes}')

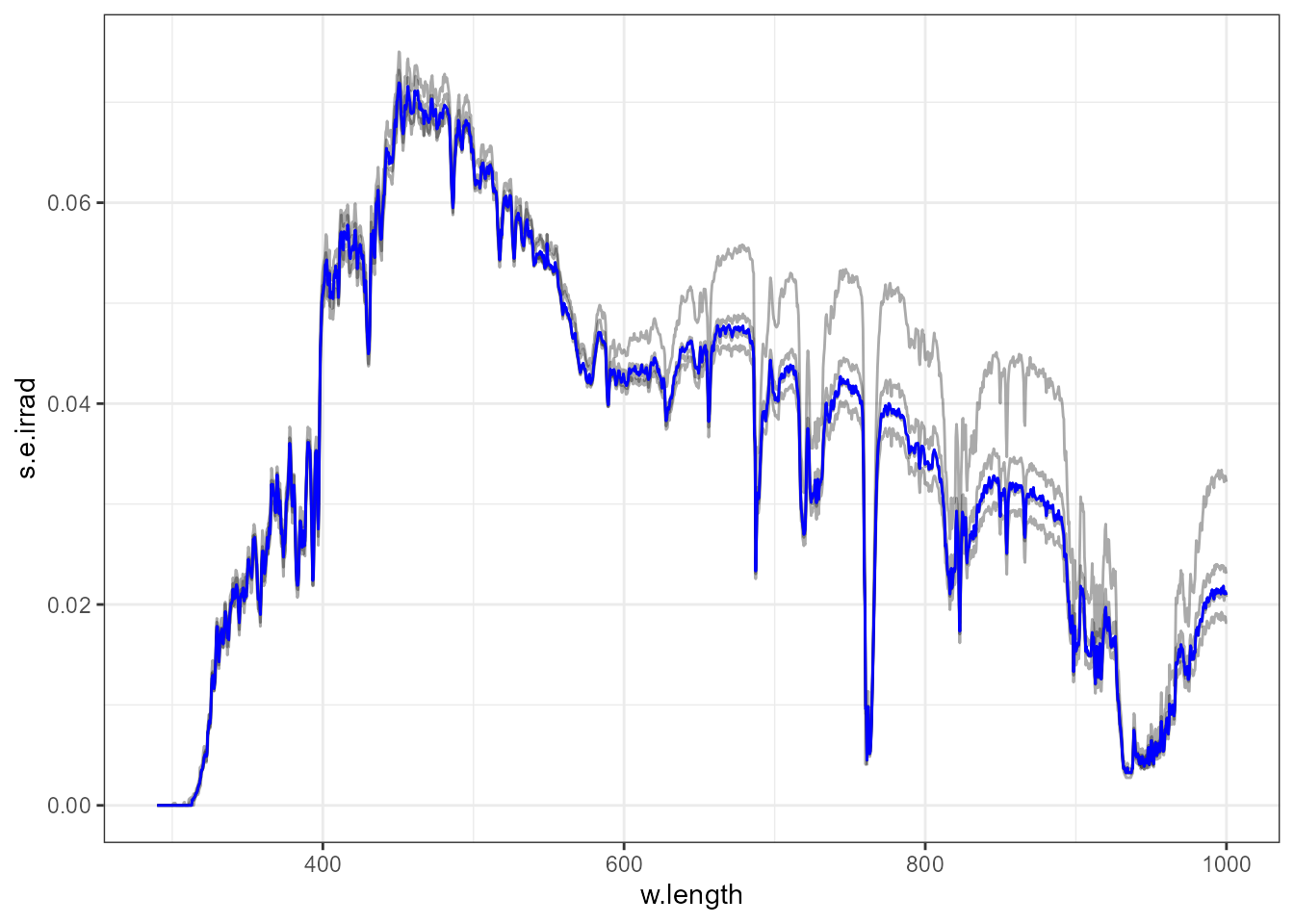

Another use case is when a layer displays a summary spectrum computed from multiple spectra shown in a different plot layer. In the example below the black line shows the median spectru. Other spectra are semitransparent and show as grey lines.

ggplot(data = sun_evening.spct) +
   geom_line(aes(group = spct.idx), alpha = 1/3) +
   geom_line(data = . %>% subset2mspct() %>% s_median())
