Add a title, subtitle and caption to a spectral plot based on automatically extracted metadata from an spectral object.
Usage
autotitle(
object,
object.label = deparse(substitute(object)),
annotations = "title",
time.format = NULL,
tz = "",
default.title = "title:objt"
)
ggtitle_spct(
object,
object.label = deparse(substitute(object)),
annotations = "title",
time.format = NULL,
tz = "",
default.title = "title:objt"
)
Arguments
- object
generic_spct or generic_mspct The spectral object plotted.
- object.label
character The name of the object being plotted.
- annotations
character vector Annotations as described for
plot()
methods, values unrelated to title are ignored.- time.format
character Format as accepted by
strptime
.- tz
character time zone used in labels.
- default.title
character vector The default used for
annotations = "title"
.
Value
The return value of ggplot2::labs()
.
Note
Method renamed as autotitle()
to better reflect its function;
ggtitle_spct()
is deprecated but will remain available for backwards
compatibility.
Title Annotations
metadata retrieved from object object
is
paased to ggplot2::ggtitle()
as arguments for title
,
subtitle
and caption
. The specification for the title is
passed as argument to annotations
, and consists in the keyword
title
with optional modifiers selecting the kind of metatdata to
use, separated by colons. Up to three keywords separated by colons are
accepted, and correspond to title, subtitle and caption. The recognized
keywords are: "objt"
, "class"
, "what"
, "when"
,
"where"
, "how"
, "inst.name"
, "inst.sn"
,
"comment"
and "none"
are recognized as modifiers to
"title"
; "none"
is a placeholder. Default is
"title:objt"
or no title depending on the context.
Examples
p <- ggplot(sun.spct) +
geom_line()

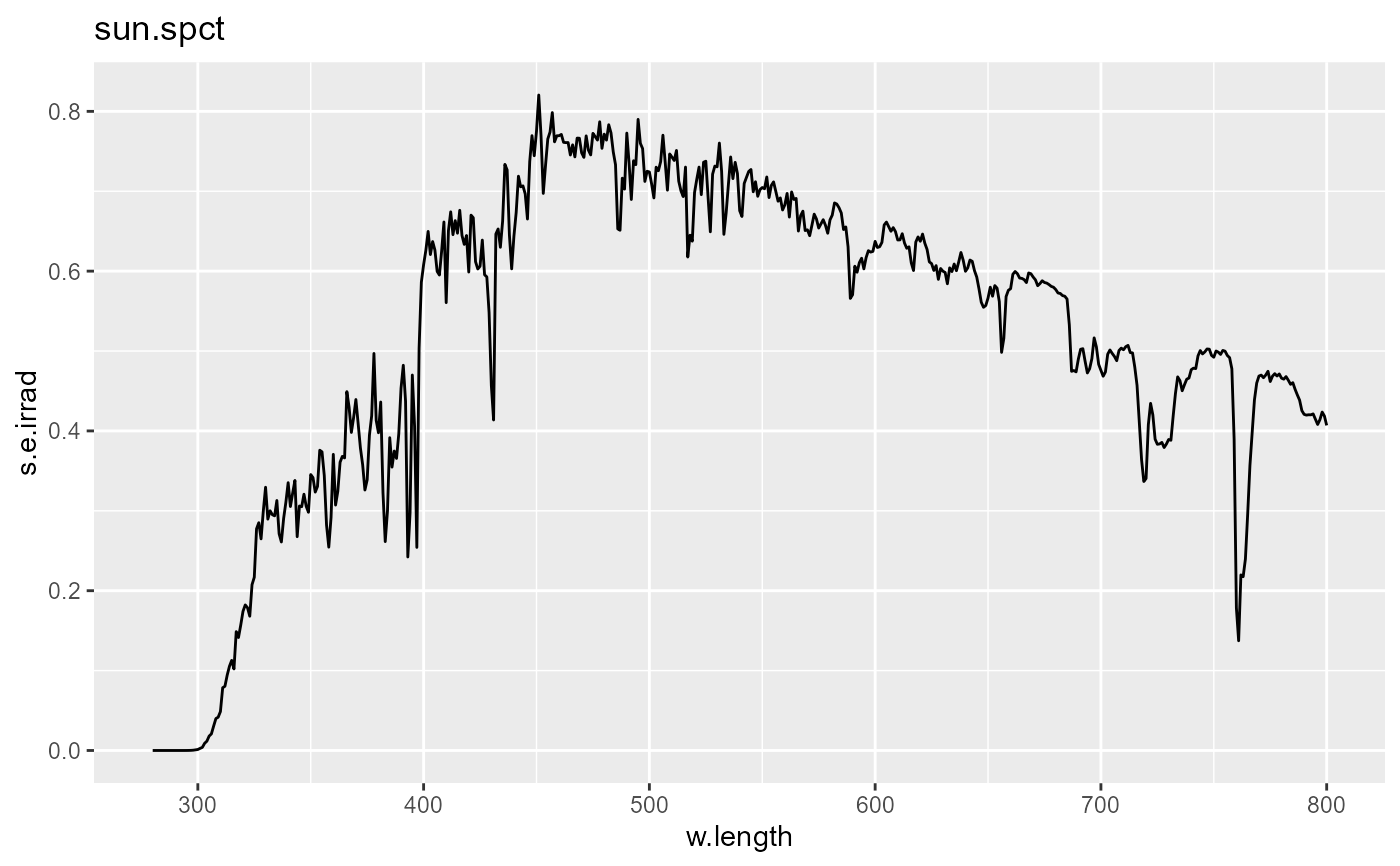

p + autotitle(sun.spct)

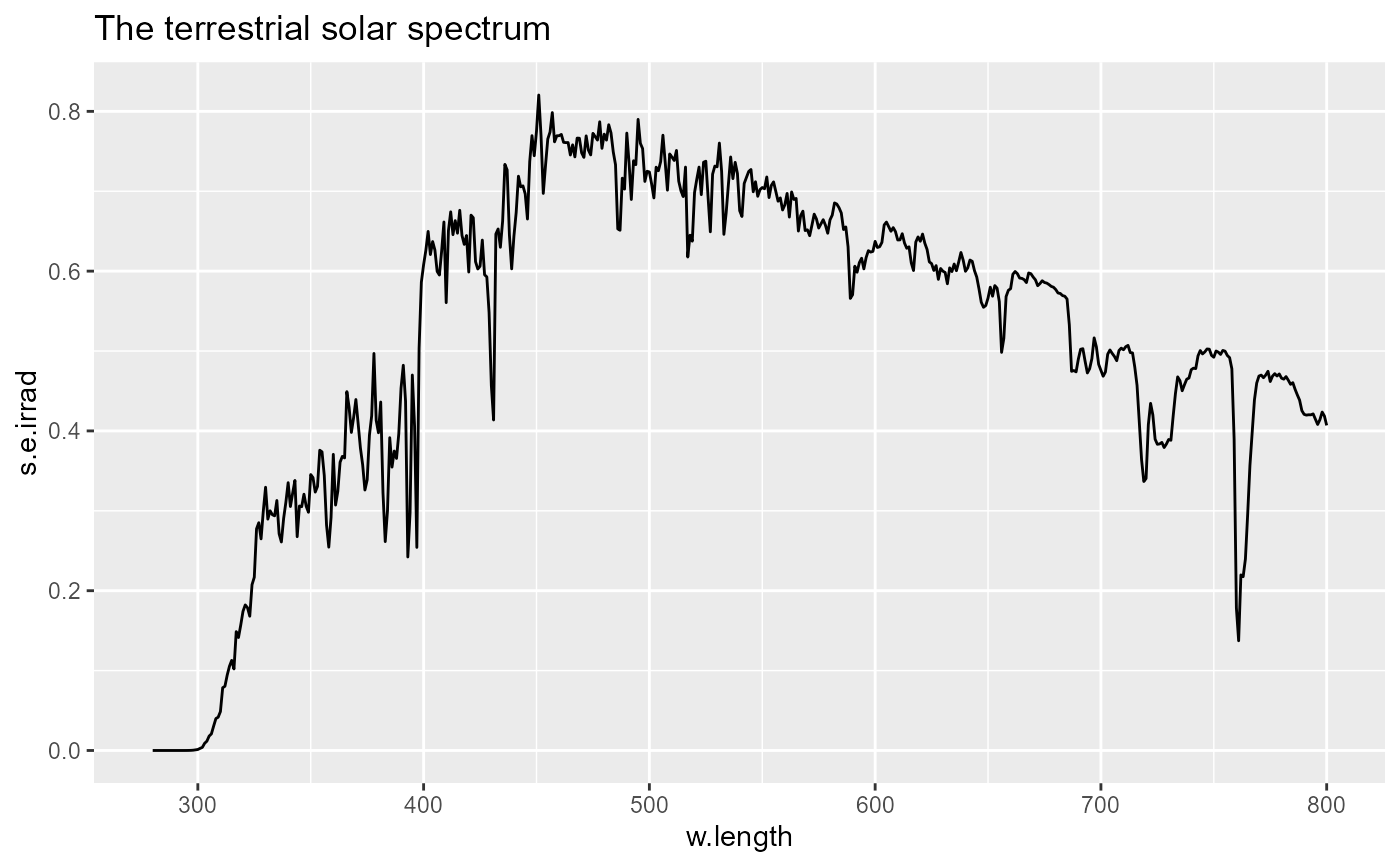

p + autotitle(sun.spct, object.label = "The terrestrial solar spectrum")

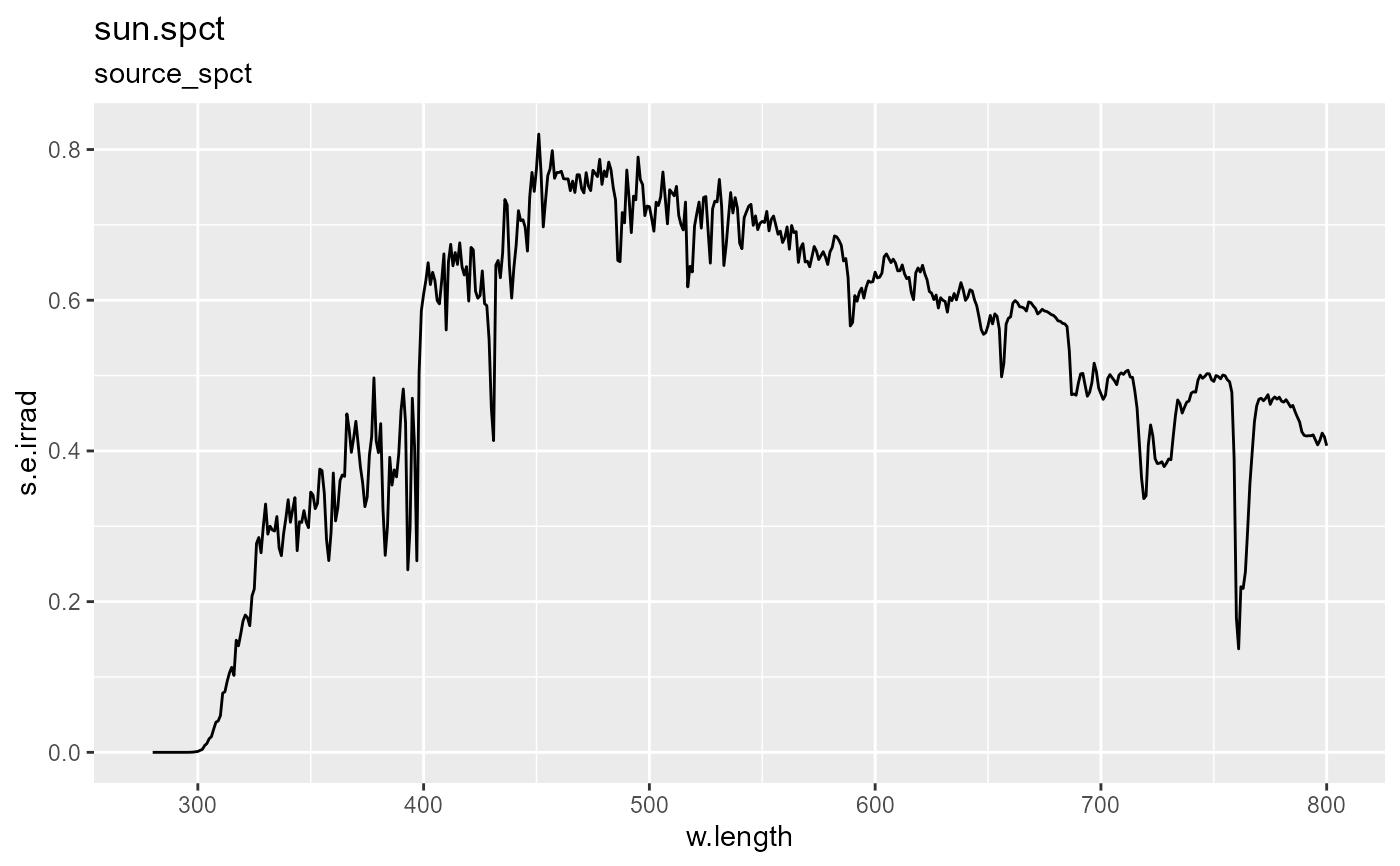

p + autotitle(sun.spct, annotations = "title:objt:class")

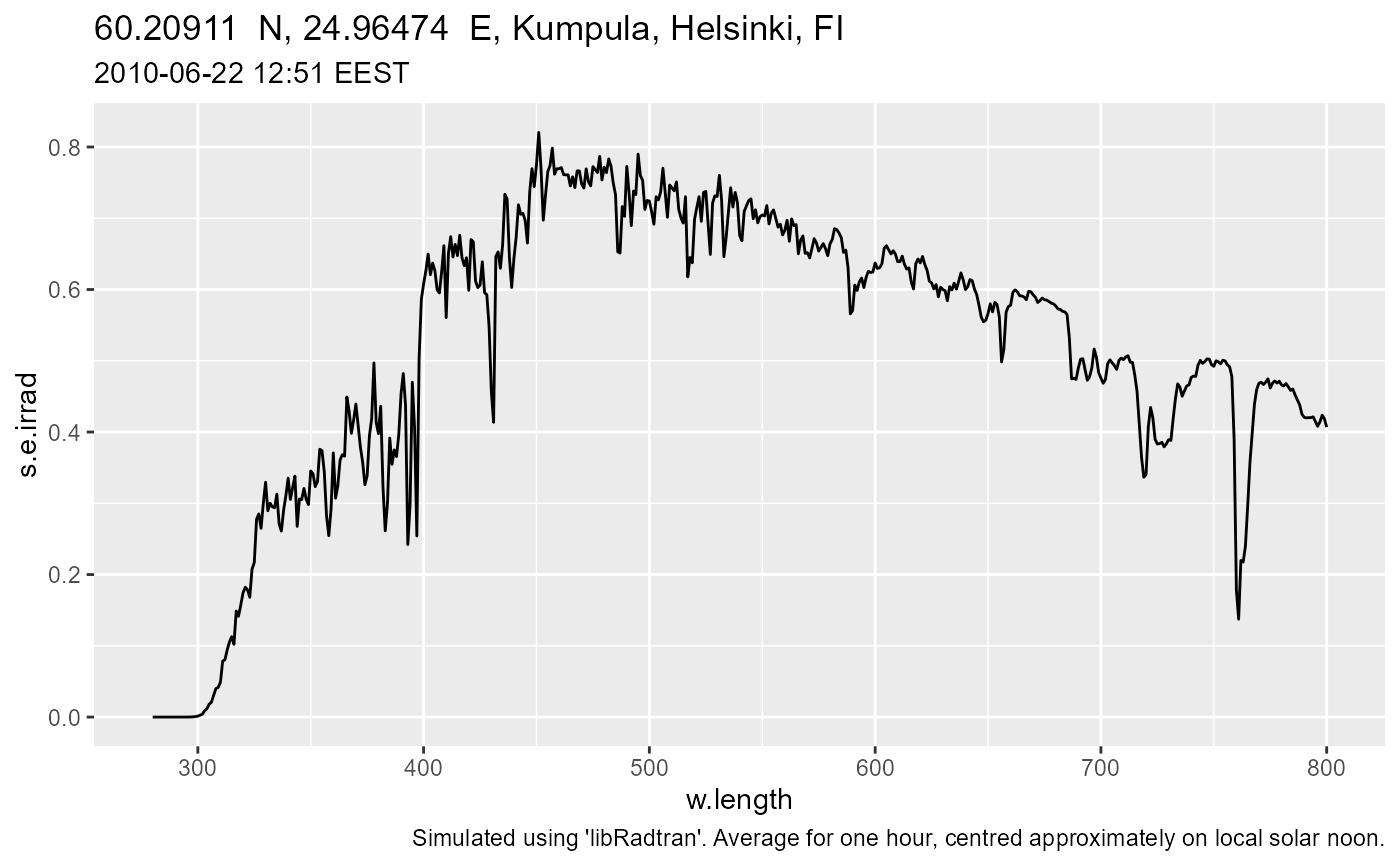

p + autotitle(sun.spct, annotations = "title:where:when:how")
p <- ggplot(sun_evening.spct) +
aes(linetype = spct.idx) +
geom_line()

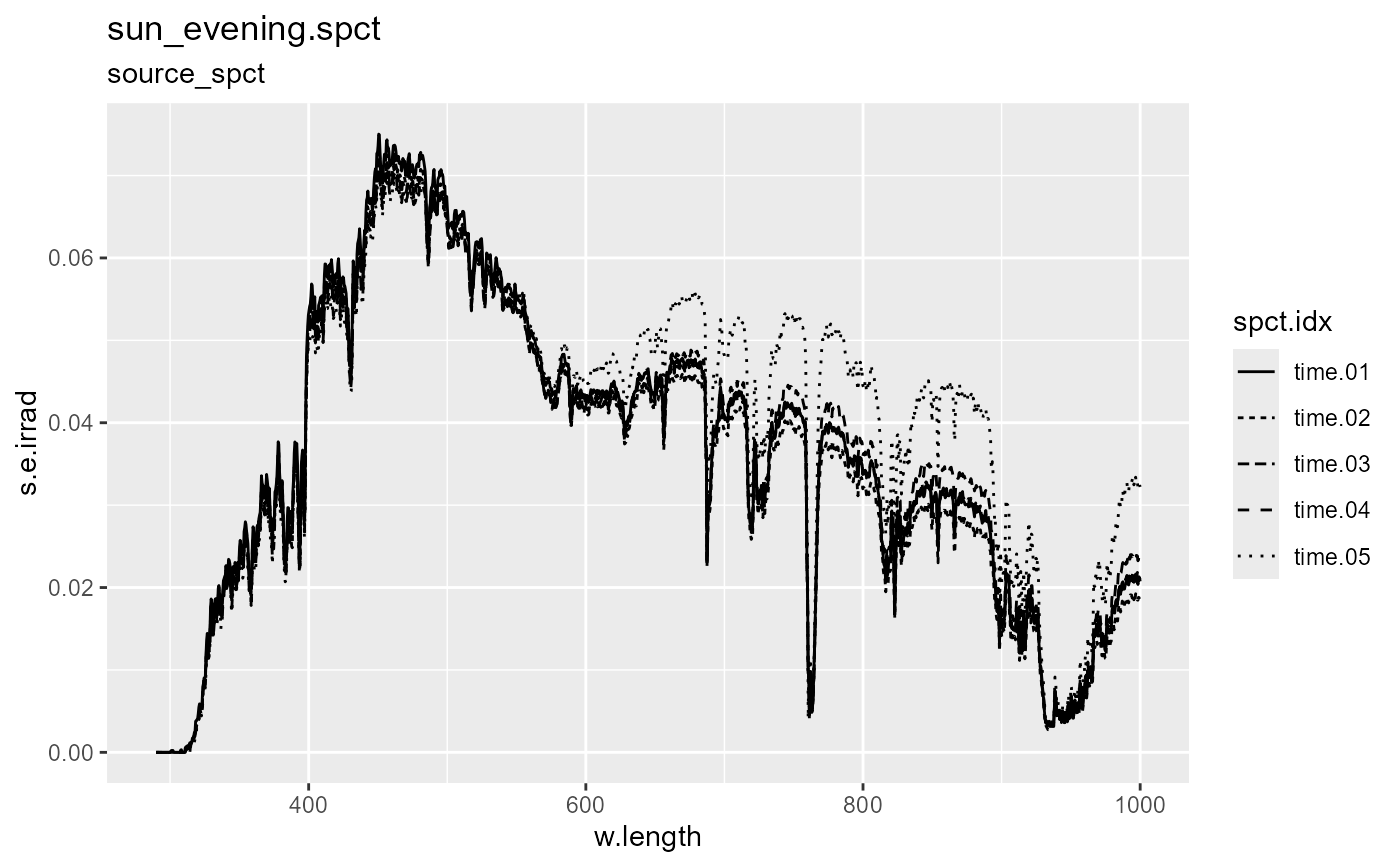

p + autotitle(sun_evening.spct, annotations = "title:objt:class")

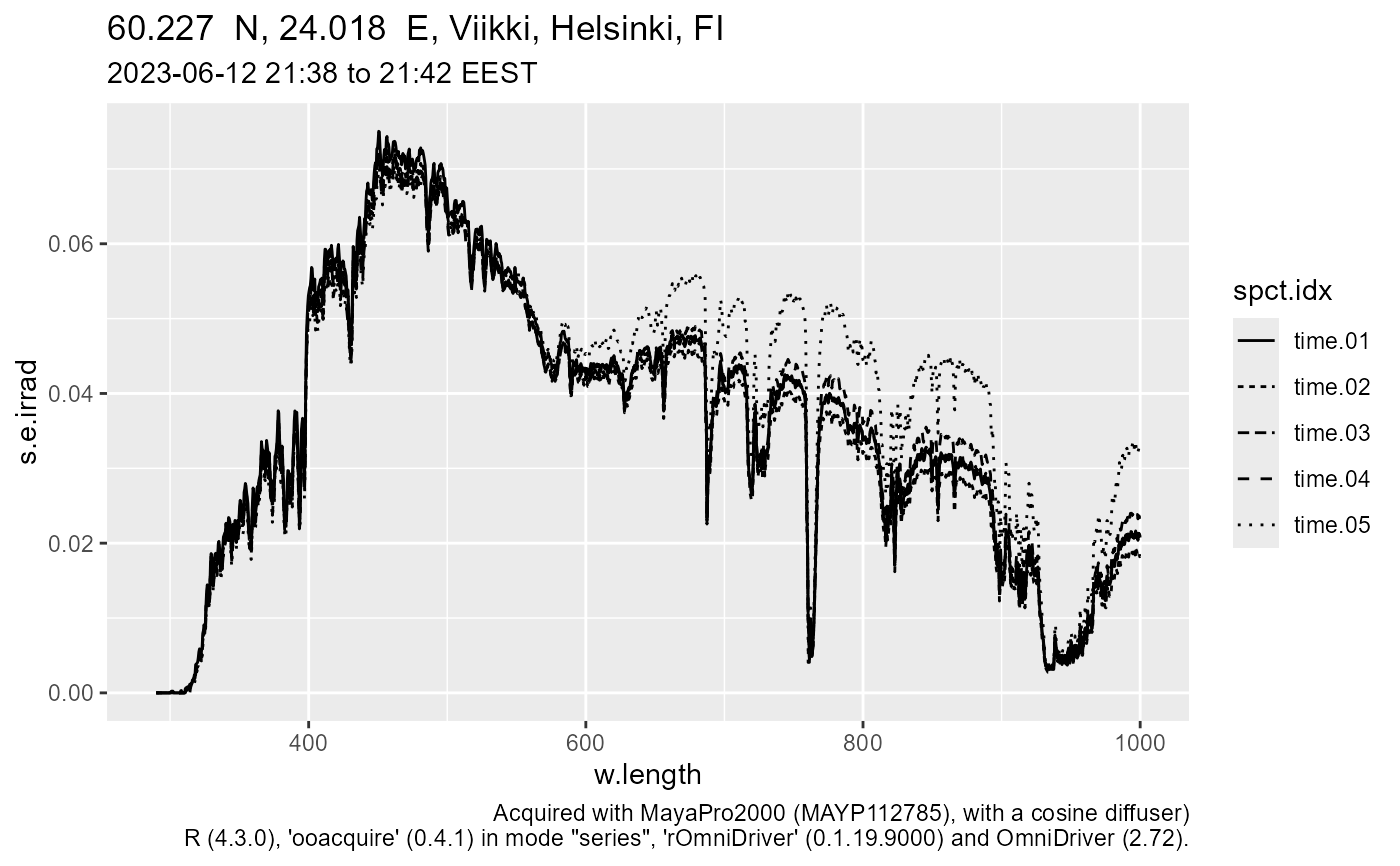

p + autotitle(sun_evening.spct, annotations = "title:where:when:how")

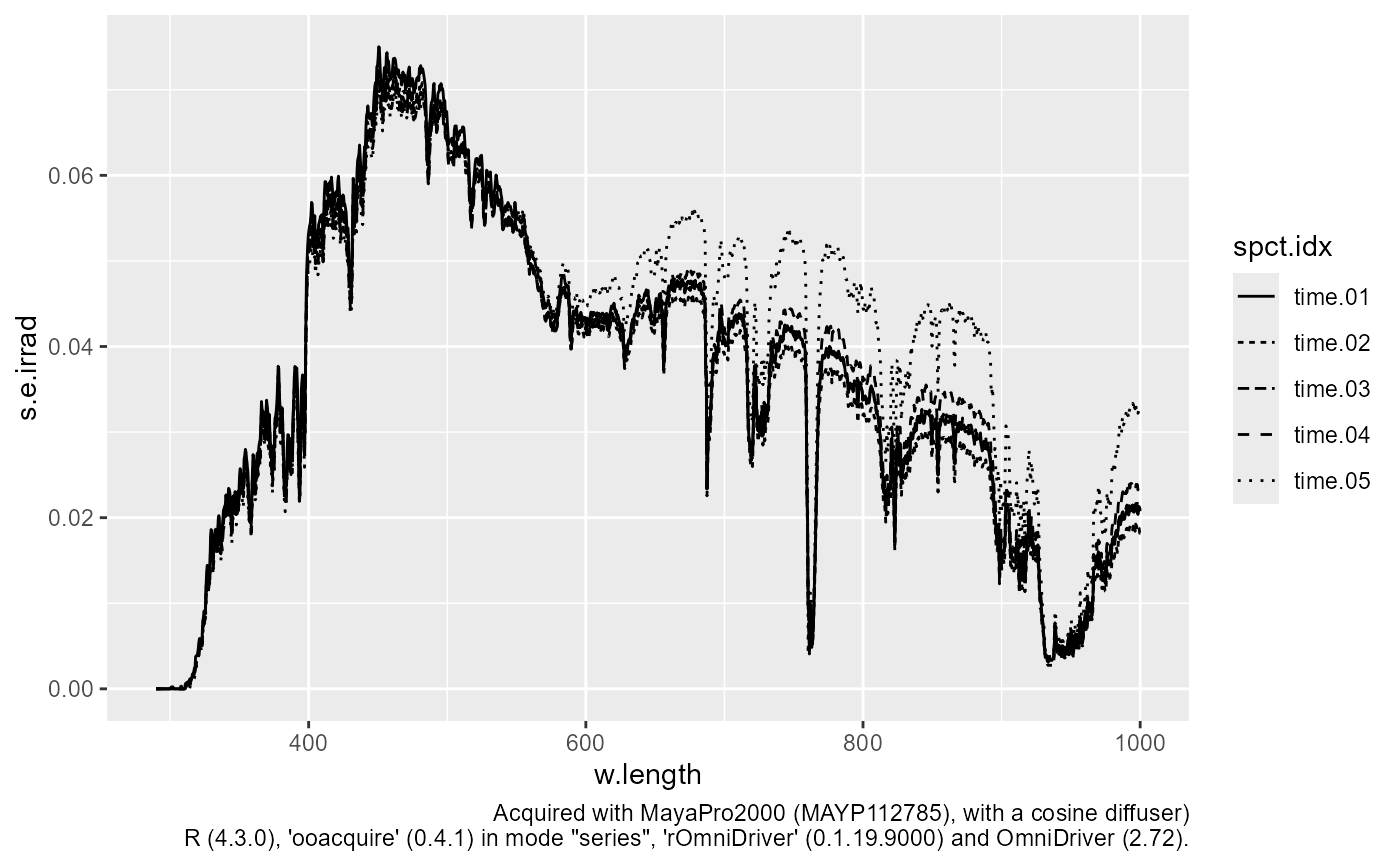

p + autotitle(sun_evening.spct, annotations = "title:none:none:how")
p <- ggplot(sun_evening.mspct) +
aes(linetype = spct.idx) +
geom_line()

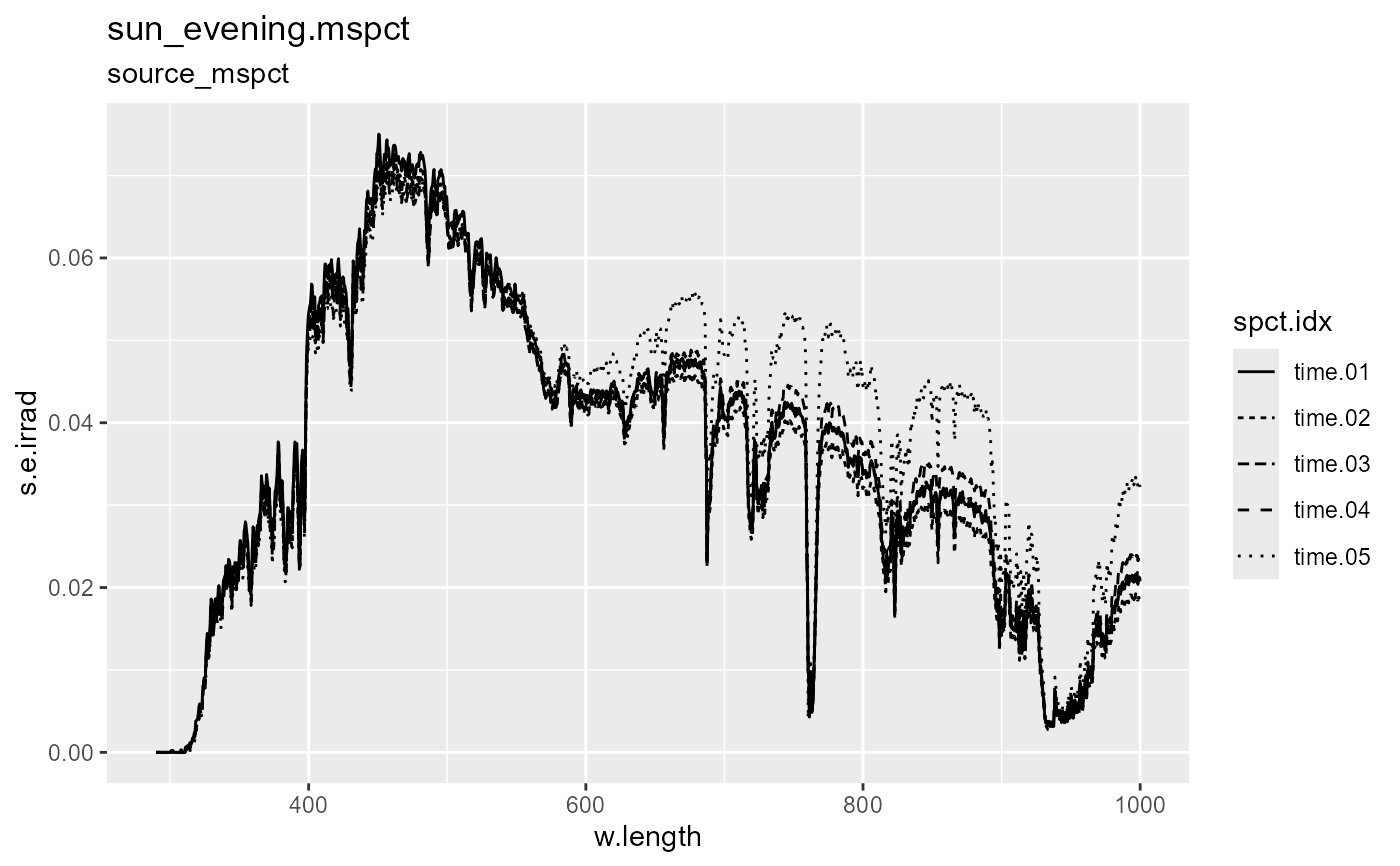

p + autotitle(sun_evening.mspct, annotations = "title:objt:class")
