Purpose

Package ‘ooacquire’ makes it possible to control, modify settings and acquire spectral data directly from within R. It can be also used off-line to read raw-counts data from files saved by Ocean Insight’s software and hardware. In both cases it implements the conversion of raw-counts data into physical quantities, with different protocols to improve the dynamic range and corrections to reduce stray-light and other sources of noise.

In sunlight, array spectrometers due to their single monochromator have a noise floor of three orders of magnitude, which makes it impossible to measure the UV-B band. With special characterization of the spectrometer, one of the procedures implemented improve the noise floor by at least one order of magnitude. With care, this allows reliable measurement of the spectral irradiance of sunlight at ground level including UV, VIS and NIR regions.

Package ‘ooacquire’ supports most types of Ocean Optics spectrometers from former Ocean Optics, now Ocean Insight (https://www.oceaninsight.com/). The free runtime of the OmniDriver SDP and Java need both to be installed before data acquisition is possible. The runtime itself and its documentation can be downloaded at https://www.oceaninsight.com/support/software-downloads/.

Warning!

Under MS-Windows with RStudio, package ‘RJava’ is not compatible with R (==4.2.0). It crashes and consequently ‘ooacquire’ cannot be loaded. Only known solution to this bug is to use R (<=4.1.3) or R (>=4.2.1).

Details

Package ‘ooacquire’ provides high level functions for spectral data acquisition built using lower level functions from package ‘rOmniDriver’ as a base. It also provides functions for reading “raw” (= detector) counts data from files and for computing physical quantities from detector counts. If package ‘rOmniDriver’ is not available, ‘ooacquire’ will enter its off-line mode in which all functions that communicate with the spectrometer are disabled or trigger an error, while other functions will be usable. Thanks to the off-line mode, raw data previously acquired with this package or with software from Ocean Insight can be processed without the need to install packages ‘rOmniDriver’ and ‘rJava’ or the OmniDriver drivers from Ocean Insight. Ocean Insight’s SPAM library is not used as all computations are done in function defined in this package using R and C++.

Acquisition is very flexible with respect to measuring protocols. It caters for all steps involved in the acquisition of spectral data from connecting to the instrument(s) and retrieving information from non-volatile memory, setting and adjusting acquisition parameters, acquiring raw counts and converting them into counts per second. It supports bracketing of the integration time for high dynamic range (HDR) protocols, both with respect to data acquisition and merging/splicing of spectra. It also supports protocols in which the total measuring time is kept constant by adjusting in coordination integration time and number of scans averaged. It works seamlessly together with package photobiology on which it also depends.

In addition to directly acquiring RAW counts data, raw-counts data can be read from files with automatic decoding of the corresponding acquisition metadata from file headers. Files saved by OceanView or SpectraSuite software from Ocean Optics, or directly by Jaz spectrometers can be read. Raw data read from files and acquired directly is stored in the same format. Consequently, data from either origin can be used as the starting point for the computation of spectra expressed as corrected counts-per-second with the same flexibility and code.

High level functions in this package and in package photobiology allow the easy conversion of counts-per-second into the physical quantities of interest such as spectral irradiance, spectral transmittance, spectral reflectance, spectral absorptance and spectral absorbance.

Functions in ‘ooacquire’ related to data acquisition use the free OmniDriver run-time which in turn requires Java. Once these are installed, there is no other set up needed, just plug a spectrometer to an USB port. The first time you connect an instrument the operating system will install the drivers as they are made available by the OmniDriver installation.

Direct acquisition has been tested with our Maya2000Pro, Flame and Jaz instruments under MS-windows 7 and MS-Windows 10, but can be expected also to work with any other modern spectrometer from Ocean Optics, and under OS X, and Linux in addition to MS-Windows. Package ‘ooacquire’ manages acquisition settings semi-automatically storing all the settings needed for acquisition into a single data object. Functions for automatic tuning of integration time are also provided. Settings used for acquisition of spectra and a descriptor of the instrument are stored at the time of acquisition as attributes of the object where the raw counts are stored. These metadata are preserved through all processing steps. Most of these metadata are also available in the header of data files created with software from Ocean Insight. When raw-counts data are read from files, these metadata are read and saved to the objects together with the data. The aim is to make traceabilty of the origin of the data automatic.

Technical aspects

Package ‘rOmniDriver’ makes available in R the API functions from the OmniDriver SDP by wrapping the Java calls in R functions of the same name and doing argument type conversions when needed. OmniDriver allows to change settings and acquire spectra using most Ocean Optics USB-connected spectrometer. As support from some older devices has been discontinued in recent versions of OmniDriver, to use, for example, the formerly very popular USB2000 spectrometer, it is necessary to install an old version of OmniDriver* instead of the current one.*

Installation of the released version

The ‘ooacquire’ package should be installed only after the system requirements are met by installing drivers and software required at the operating system level. Please, read carefully the whole installation instructions before attempting to install this package.

The package is not hosted in CRAN, but instead at a private “CRAN-like” repository. In recent versions of R an option can be set to make this repository visible to R, before installing this package and ‘rOmniDriver’ as usual.

repos <- getOption("repos", default = list())
repos[["r4photobiology"]] <- "https://r.r4photobiology.info"
options(repos = repos)

Installation of Java/Temurin and OmniDriver should be done first.

  1. Temurin 8 OpenJDK or Java 8 JDK (Java Open development kit). The Java run-time is not enough! Temurin OpenJDK is free in contrast to Oracle’s Java 8 JDK.
  2. rOmniDriver run-time from Ocean Optics which is a free download. It is the same installer as for the non-free SDP, but if run-time is selected during installation no key/password are asked for.
  3. Install ‘ooacquire’ after setting the repos option, which ensures dependencies will be installed automatically. Once the option is set installation is as for packages hosted at CRAN. Using the menu entry in RStudio or RGui or the code below.
install.packages("ooacquire")

As long as the repos option is set as described above, updates can be done as for packages hosted at CRAN. Using the menu entry in RStudio or RGui or the code below.

Steps 1 and 2 are described in the README file of ‘rOmniDriver’, which can be found in its on-line documentation site. Make sure to read it, follow step by step the installation, testing success after each step making sure all the required software is properly installed before attempting to install ‘ooacquire’.

Installation of the under development version

The latest, possibly buggy, development version can be installed from the Git repository at GitHub. For this we can use package ‘remotes’. As package’s ‘ooacquire’ although coded mainly in R but includes one function in C++, the build chain for R packages needs to be installed. In MS-Windows this is achieved by installing Rtools.

Assuming that R and the build tools are installed the following steps should be done in sequence:

  1. Install the Java 8 OpenJDK (Java Open development kit). The Java run-time is not enough! Temurin’s OpenJDK is free in contrast to Oracle’s Java 8 JDK.
  2. Install the rOmniDriver run-time from Ocean Optics which is a free download. It is the same installer as for the non-free SDP, but if run-time is selected during installation no key/password are asked for.
  3. Install the R packages ‘photobiology’, ‘photobiologyInOut’, ‘ggspectra’ plus the ‘tidyverse’, all available from CRAN.
  4. Install ‘rOmniDriver’ from GitHub.
  5. Install ‘ooacquire’ from GitHub.

Steps 1, 2, 3 and 4 are described in the README file of ‘rOmniDriver’, which can be found in its on-line documentation site. Make sure to read it, follow step by step the installation, testing success after each step making sure all the required software is properly installed before attempting to install ‘ooacquire’.

Installation of the current version from GitHub:

# install.packages("remotes")
remotes::install_github("aphalo/ooacquire")

The package includes calibration data for the spectrometers used in testing the package and that are used by myself and collaborators. The last step before being able to use the package is to obtain calibration data for the spectrometers to be used and their descriptor and saving them in a suitable format. At least one correction method needs also to be defined for each spectrometer. Depending on how detailed has been the characterization of the spectrometer different corrections are possible. The source package includes a folder ‘data-raw’ with examples of how this can be done. The process cannot be easily automated as bad pixels and suitable reference wavelengths need to be chosen based both on the instrument used and light source to be measured.

Documentation and examples

Documentation includes six vignettes in addition to help pages. The examples in the vignettes and help pages use spectral data from measurements done with this package as well as output files created by Ocean Optics’s software. These data files are in folder exdata. Scripts containing examples that can be in most cases used with only small changes are in folder example-scripts of this package.

Examples

A simple example using no dark reference scans.

library(ooacquire)
folderpath <- system.file("extdata", package = "ooacquire")
file_names <- list(light = paste(folderpath,
                                 "irrad-files/light-short.txt", sep = "/"))
one_file.spct <-
  s_irrad_corrected(x = file_names,
                    descriptor = which_descriptor("2016-10-11" ,
                                                  MAYP11278_descriptors),
                    correction.method = MAYP11278_ylianttila.mthd)

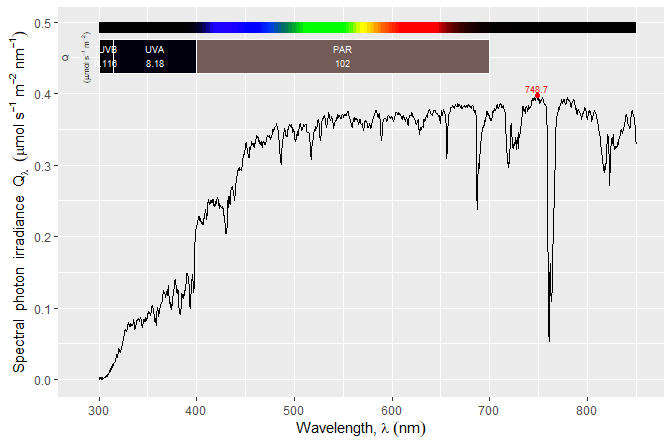

autoplot(one_file.spct, unit.out = "photon", range = c(300, 850))

Non-commercial status

Packages ‘rOmniDriver’ and ‘ooacquire’ are both open source and released under a GPL license. Neither ‘rOmniDriver’ nor ‘ooacquire’ require the commercial software OceanView or SpectraSuite to be installed, but should be able to coexist with either of them. They do not require the purchase of any software from Ocean Optics, but the use of these packages or the free OmniDriver runtime is not supported in any way by Ocean Optics, unless you acquire a license to the OmniDriver SDP. The OmniDriver SDP is not open source and is proprietary software copyrighted by Ocean Optics and supporting only the use of hardware sold by this company (https://oceanoptics.com/).

Documentation

HTML documentation for this package is available at (https://docs.r4photobiology.info/ooacquire/), including a User Guide and a description of the algorithms.

The API documentation for the OmniDriver SDP is available from Ocean Insight on-line from Ocean Insight.

News about updates are regularly posted at (https://www.r4photobiology.info/).

Contributing

Please report bugs and request new features at (https://github.com/aphalo/ooacquire/issues). Pull requests are welcome at (https://github.com/aphalo/ooacquire).

Citation

If you use ‘ooacquire’ to produce scientific or commercial publications, acknowledge this by citing the package according to:

citation("ooacquire")
#>
#> To cite package 'ooacquire' in publications use:
#>
#>   Aphalo P, Ylianttila L (2023). _ooacquire: Acquire Data from OO
#>   Spectrometers_. https://docs.r4photobiology.info/ooacquire/,
#>   https://github.com/aphalo/ooacquire.
#>
#> A BibTeX entry for LaTeX users is
#>
#>   @Manual{,
#>     title = {ooacquire: Acquire Data from OO Spectrometers},
#>     author = {Pedro J. Aphalo and Lasse Ylianttila},
#>     year = {2023},
#>     note = {https://docs.r4photobiology.info/ooacquire/,
#> https://github.com/aphalo/ooacquire},
#>   }

License

© 2016-2023 Pedro J. Aphalo () for the code. Lasse Ylianttila developed the majority of the algorithms used. Released under the GPL, version 2 or greater. This software carries no warranty of any kind.
