Introduction

This package, is a data only package, part of a suite, which has package ‘photobiology’ at its core. Please visit (https://www.r4photobiology.info/) for more details. For more details on plotting spectra, please consult the documentation for package ‘ggspectra’, and for information on the calculation of summaries and maths operations between spectra, please, consult the documentation for package ‘photobiology’.

In this brief User Guide we describe how to re-scale the normalized spectra, and how to access individual spectra or subsets of spectra.

Spectra in the package are contained in one collection: sensors.mspct contains spectral data for various types of broadband sensors.

In addition to the objects containing the data itself, several character vectors of names of spectra are provide to facilitate the retrieval of subsets of spectra.

Accessing individual spectra

The response_spct member objects in sensors.mspct can be accessed through their names or through a numeric index. As the numeric indexes are likely to change with updates to the package, their use is discouraged. Names as character strings should be used instead. They can also be retrieved with method names().

names(sensors.mspct)
##  [1] "ams_TSL254R"                      "ams_TSL257"
##  [3] "Analytik_Jena_UVX25"              "Analytik_Jena_UVX31"
##  [5] "Analytik_Jena_UVX36"              "apogee_s2_131_FR"
##  [7] "apogee_s2_131_R"                  "apogee_sq_100X"
##  [9] "apogee_sq_500"                    "apogee_sq_610"
## [11] "apogee_su_200"                    "Berger_UV_Biometer"
## [13] "DeltaT_BF5"                       "flat_e"
## [15] "flat_q"                           "KIPP_CUV_5"
## [17] "KIPP_PQS1"                        "KIPP_UVS_A"
## [19] "KIPP_UVS_B"                       "KIPP_UVS_E"
## [21] "LICOR_LI_190SA"                   "LICOR_LI_200"
## [23] "LICOR_LI_210"                     "LICOR_LI_190"
## [25] "LICOR_LI_190R"                    "LICOR_LI_210R"
## [27] "sglux_TOCON_blue4"                "sglux_SG01D_A"
## [29] "sglux_SG01D_B"                    "sglux_SG01D_C"
## [31] "sglux_SG01L"                      "Skye_SKE510"
## [33] "Skye_SKL310"                      "Skye_SKP210"
## [35] "Skye_SKP215"                      "Skye_SKR110_FR"
## [37] "Skye_SKR110_R"                    "Skye_SKS1110"
## [39] "Skye_SKU421"                      "Skye_SKU421a"
## [41] "Skye_SKU430a"                     "Skye_SKU440a"
## [43] "SolarLight_501_Biometer_high_UVA" "SolarLight_501_Biometer_low_UVA"
## [45] "SolarLight_501_Biometer_typical"  "Solarmeter_SM60"
## [47] "Specmeters_3415F"                 "Thies_E1c"
## [49] "Vishay_VEML6075_UVA"              "Vishay_VEML6075_UVB"
## [51] "Vital_BW_20"

We can use a character string as index to extract an individual response_spct object.

sensors.mspct$LICOR_LI_190R
## Object: response_spct [182 x 2]
## Wavelength range 380.76093-797.90271 nm, step 0.5007704-4.006164 nm
## Label: LICOR LI 190R light sensor
## Time unit 1s
##
## # A tibble: 182 × 2
##    w.length s.e.response
##       <dbl>        <dbl>
##  1     381.      0.00164
##  2     385.      0.00405
##  3     386.      0.00653
##  4     387.      0.00775
##  5     388.      0.0110
##  6     389.      0.0130
##  7     393.      0.0305
##  8     397.      0.0529
##  9     398.      0.0626
## 10     398.      0.0738
## # ℹ 172 more rows
sensors.mspct[["LICOR_LI_190R"]]
## Object: response_spct [182 x 2]
## Wavelength range 380.76093-797.90271 nm, step 0.5007704-4.006164 nm
## Label: LICOR LI 190R light sensor
## Time unit 1s
##
## # A tibble: 182 × 2
##    w.length s.e.response
##       <dbl>        <dbl>
##  1     381.      0.00164
##  2     385.      0.00405
##  3     386.      0.00653
##  4     387.      0.00775
##  5     388.      0.0110
##  6     389.      0.0130
##  7     393.      0.0305
##  8     397.      0.0529
##  9     398.      0.0626
## 10     398.      0.0738
## # ℹ 172 more rows

Be aware that according to R’s rules, using single square brackets will return a response_mspct object possibly of length one. This statement is not equivalent to the one in the chunk immediately above.

sensors.mspct["LICOR_LI_190R"]
## Object: response_mspct [1 x 1]
## --- Member: LICOR_LI_190R ---
## Object: response_spct [182 x 2]
## Wavelength range 380.76093-797.90271 nm, step 0.5007704-4.006164 nm
## Label: LICOR LI 190R light sensor
## Time unit 1s
##
## # A tibble: 182 × 2
##    w.length s.e.response
##       <dbl>        <dbl>
##  1     381.      0.00164
##  2     385.      0.00405
##  3     386.      0.00653
##  4     387.      0.00775
##  5     388.      0.0110
##  6     389.      0.0130
##  7     393.      0.0305
##  8     397.      0.0529
##  9     398.      0.0626
## 10     398.      0.0738
## # ℹ 172 more rows
##
## --- END ---

Accessing subsets of spectra

We can subset sensors.mspct object by indexing with vectors of character strings. The package provides some predefined ones, and users can easily define their own, either as constants or through computation. Here we use a vector defined by the package.

sensors.mspct[berger_sensors]
## Object: response_mspct [1 x 1]
## --- Member: Berger_UV_Biometer ---
## Object: response_spct [21 x 2]
## Wavelength range 279.872-378.458 nm, step 3.311-5.284 nm
## Label: Berger UV Biometer light sensor
## Time unit 1s
##
## # A tibble: 21 × 2
##    w.length s.e.response
##       <dbl>        <dbl>
##  1     280.      0.747
##  2     285.      0.912
##  3     290.      1
##  4     295.      0.985
##  5     300.      0.770
##  6     305.      0.471
##  7     310.      0.215
##  8     315.      0.0782
##  9     320.      0.0263
## 10     325.      0.00845
## # ℹ 11 more rows
##
## --- END ---

More generally one can search for matching names within the collection of spectra.

sensors.mspct[grep("berger", names(sensors.mspct), ignore.case = TRUE)]
## Object: response_mspct [1 x 1]
## --- Member: Berger_UV_Biometer ---
## Object: response_spct [21 x 2]
## Wavelength range 279.872-378.458 nm, step 3.311-5.284 nm
## Label: Berger UV Biometer light sensor
## Time unit 1s
##
## # A tibble: 21 × 2
##    w.length s.e.response
##       <dbl>        <dbl>
##  1     280.      0.747
##  2     285.      0.912
##  3     290.      1
##  4     295.      0.985
##  5     300.      0.770
##  6     305.      0.471
##  7     310.      0.215
##  8     315.      0.0782
##  9     320.      0.0263
## 10     325.      0.00845
## # ℹ 11 more rows
##
## --- END ---

Set algebra operations can be used with the indexing vectors as each vector describes a single property: color, brand, type, etc.

sensors.mspct[intersect(licor_sensors, par_sensors)]
## Object: response_mspct [1 x 1]
## --- Member: LICOR_LI_190 ---
## Object: response_spct [194 x 2]
## Wavelength range 381.85375-798.83668 nm, step 0.5005798-4.004638 nm
## Label: LICOR LI 190 light sensor
## Time unit 1s
##
## # A tibble: 194 × 2
##    w.length s.e.response
##       <dbl>        <dbl>
##  1     382.       0.0272
##  2     382.       0.0291
##  3     383.       0.0310
##  4     384.       0.0349
##  5     386.       0.0425
##  6     389.       0.0559
##  7     390.       0.0613
##  8     390.       0.0650
##  9     391.       0.0689
## 10     392.       0.0766
## # ℹ 184 more rows
##
## --- END ---

Calculating summaries from the normalized data

The spectra are normalized, and consequently, several summaries expressed in absolute units are undefined, and trigger errors. Summaries like ratios which are not affected by normalization are allowed and valid. The data have been normalized as the measuring conditions used are not all the same, and in many cases not well characterized (e.g. distance to nearby reflecting walls, or exact alignment of the spectrometer input optics with respect to light sources).

What we will do in this section is to rescale the spectral data so that after conversion a given target value for a summary quantity will be true. As an example, we will rescale one spectrum so that it yields a response of 100 mol-1 m2for the range 400 to 700 nm.

my.spct <- fscale(sensors.mspct$LICOR_LI_190R,
                  range = PhR(),
                  q_response,
                  target = 100,
                  set.scaled = FALSE)
q_response(my.spct, PhR())
## R[/q]_PhR
##       100
## attr(,"time.unit")
## [1] "second"
## attr(,"radiation.unit")
## [1] "total photon response"
q_response(my.spct, UVA())
## R[/q]_]UVA.ISO
##      0.3119866
## attr(,"time.unit")
## [1] "second"
## attr(,"radiation.unit")
## [1] "total photon response"

If we want to treat the rescaled spectral data, as if they were true readings with no scaling we can reset the attribute with method setScaled(). With method getScaled() we can test if a spectrum has been scaled.

getScaled(my.spct)
## [1] FALSE

If for some obscure reason we want to simply “pretend” that the spectral data have not been normalized, we can permanently override the attribute on a copy of the data. Most of the time this is a very bad idea!

my2nd.spct <- sensors.mspct$LICOR_LI_190
setNormalized(my2nd.spct)
q_response(my2nd.spct)
## R[/q]_Total
##    49405060
## attr(,"time.unit")
## [1] "second"
## attr(,"radiation.unit")
## [1] "total photon response"

Plotting the spectra

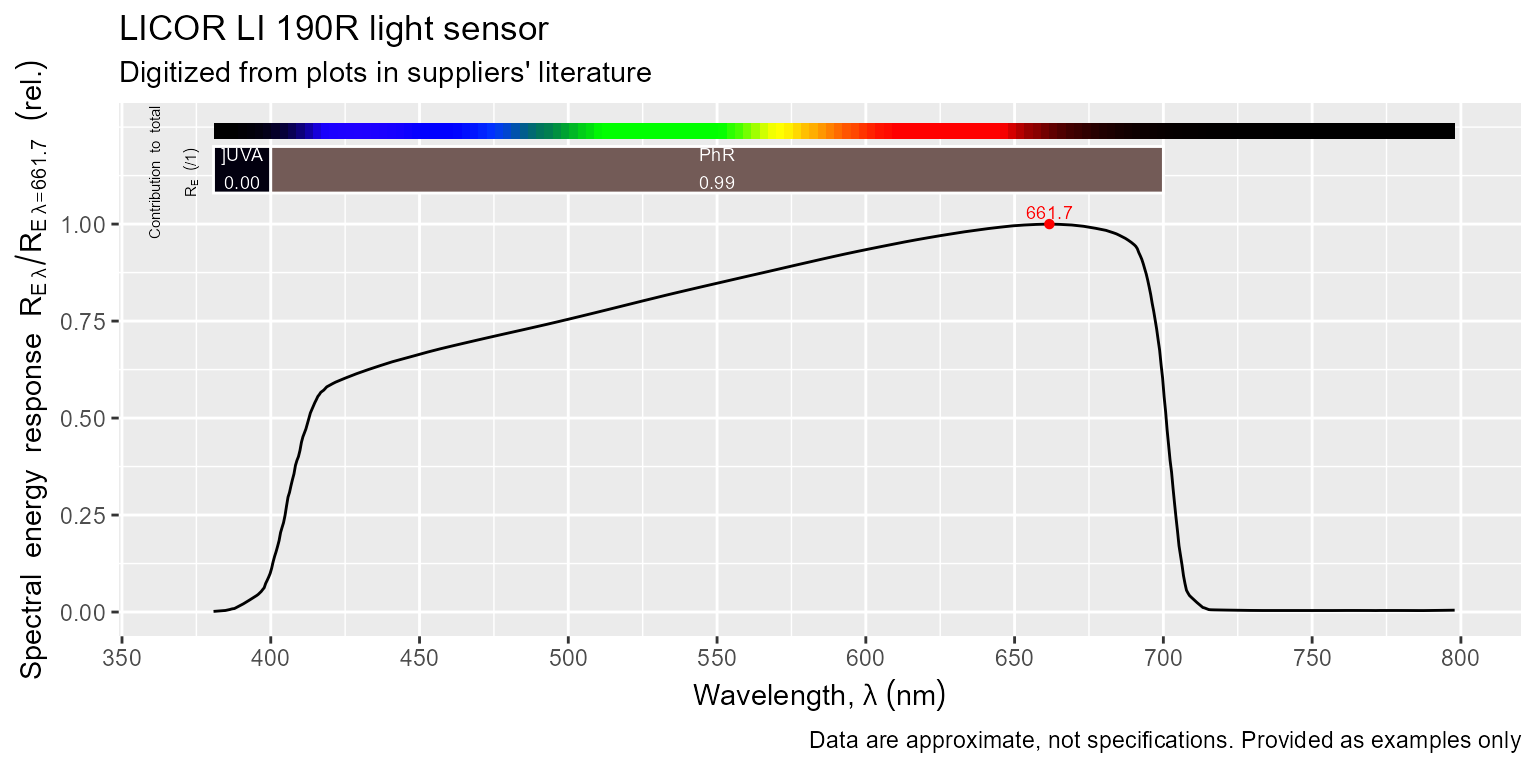

Using autoplot() methods for spectra defined in package ‘ggspectra’ annotated plotting is automatic. The defaults can be easily changed, please see the documentation in package ‘ggspectra’.

autoplot(sensors.mspct$LICOR_LI_190R,
         annotations = c("+", "title:what:how:comment"))

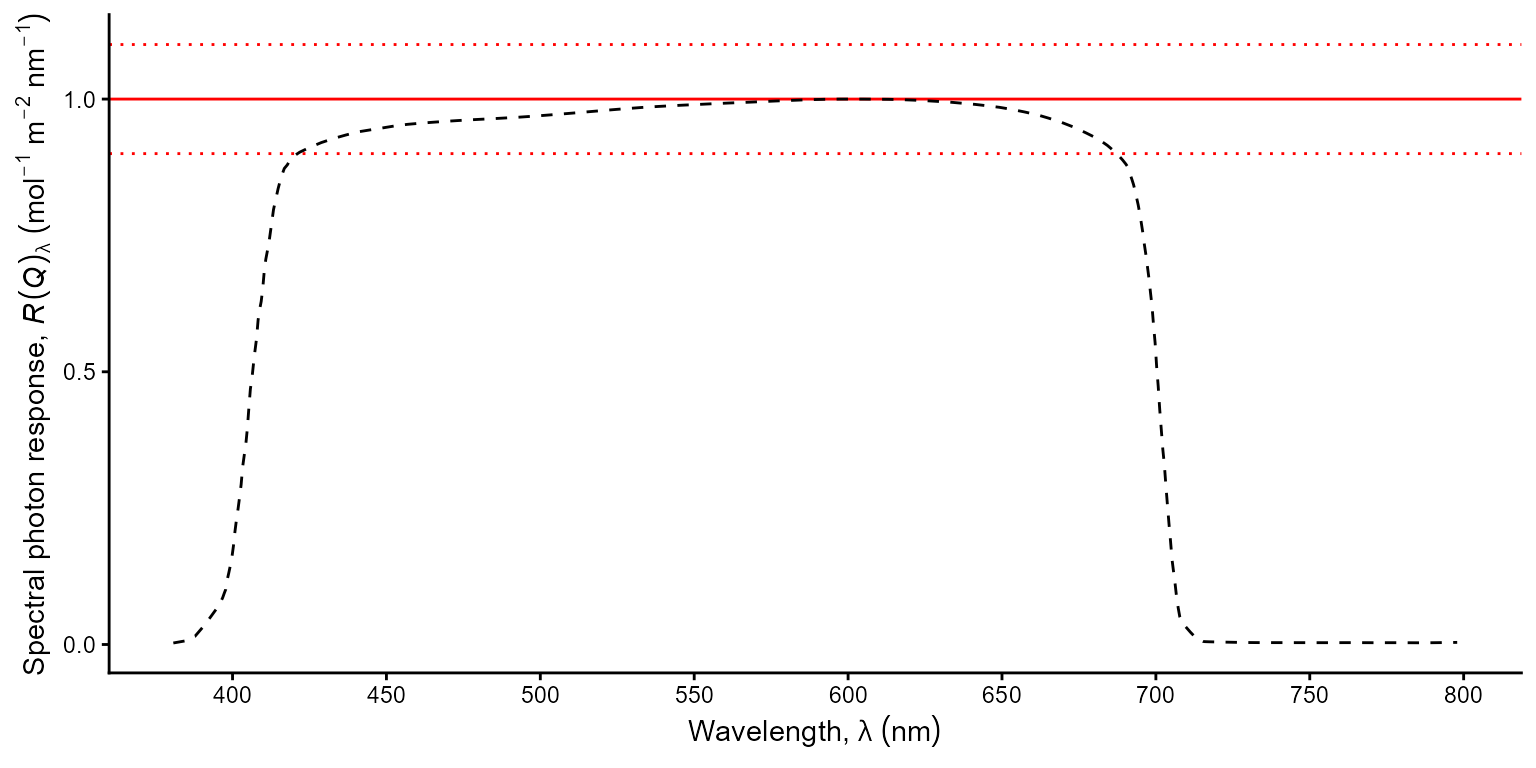

Using the ggplot() method for spectra from package ‘ggspectra’ plus geometries and statistics from package ‘ggplot2’ we gain additional control on the design.

ggplot(sensors.mspct$LICOR_LI_190R, unit.out = "photon") +
  geom_hline(yintercept = 1, colour = "red") +
  geom_hline(yintercept = c(0.9, 1.1), colour = "red", linetype = "dotted") +
  geom_line(linetype = "dashed") +
  scale_y_s.q.response_continuous(breaks = c(0, 0.5, 1)) +
  scale_x_wl_continuous() +
  theme_classic()

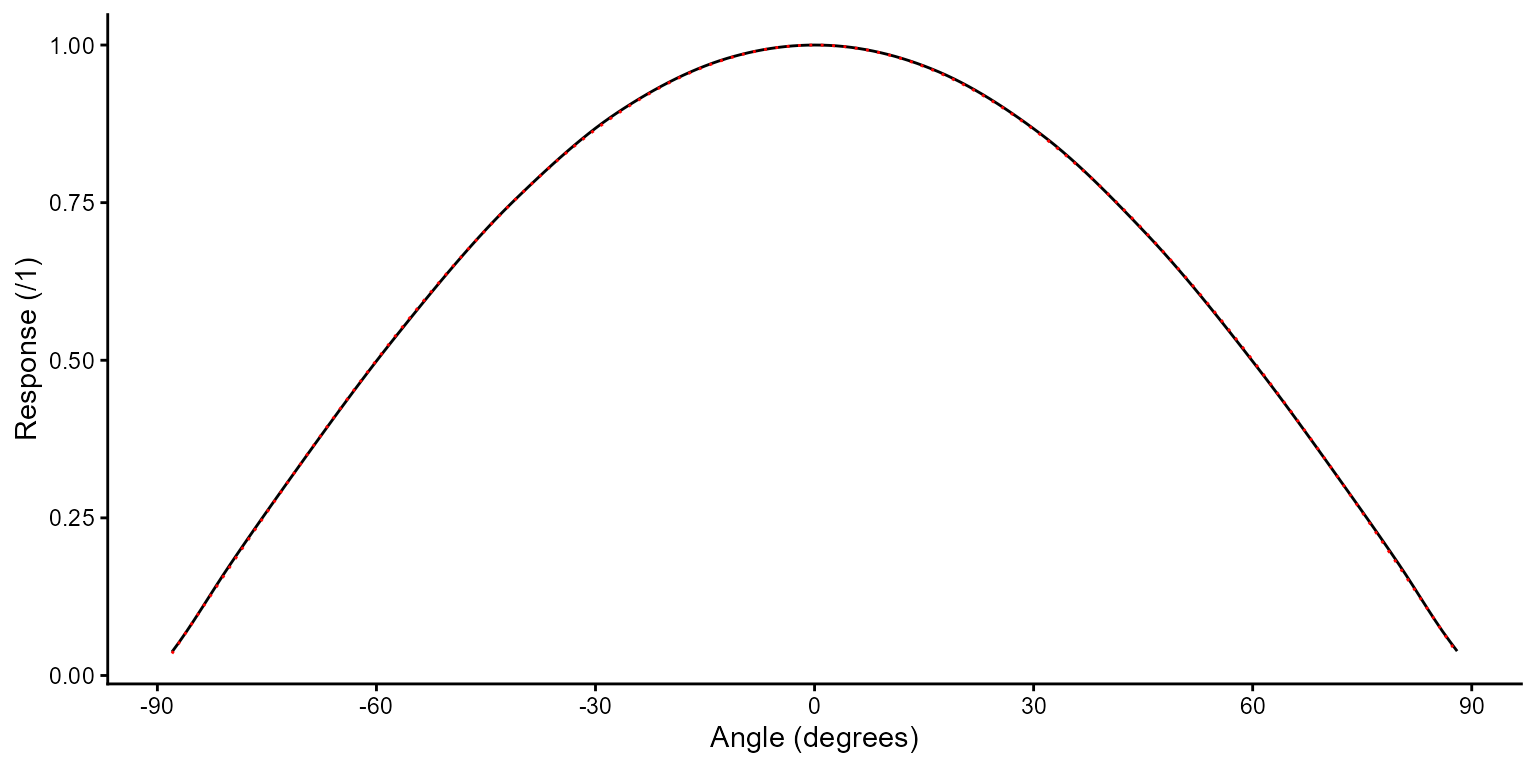

Angular response

ggplot(diffusers.lst$bentham.D7, aes(angle.deg, response)) +
  geom_line() +
  geom_line(aes(y = cos(angle.deg * pi / 180)), linetype = "dotted", color = "red") +
  scale_x_continuous(name = "Angle (degrees)", breaks = c(-90, -60, -30, 0, 30, 60, 90)) +
  scale_y_continuous(name = "Response (/1)") +
  theme_classic()

Using the data in other contexts

As response_mspct is a class derived from list, and response_spct is derived from tibble::tible which is a (mostly) compatible reimplementation of data.frame the data can be used very easily with any R function.

head(as.data.frame(sensors.mspct$LICOR_LI_190R))
##   w.length s.e.response
## 1 380.7609  0.001644911
## 2 384.7671  0.004052161
## 3 386.2694  0.006525339
## 4 386.7702  0.007746274
## 5 388.2725  0.011006905
## 6 388.7733  0.013019329

Of course attach and with also work as expected.

attach(sensors.mspct)
head(LICOR_LI_190R)
## Object: response_spct [6 x 2]
## Wavelength range 380.76093-388.77325 nm, step 0.5007704-4.006164 nm
## Label: LICOR LI 190R light sensor
## Time unit 1s
##
## # A tibble: 6 × 2
##   w.length s.e.response
##      <dbl>        <dbl>
## 1     381.      0.00164
## 2     385.      0.00405
## 3     386.      0.00653
## 4     387.      0.00775
## 5     388.      0.0110
## 6     389.      0.0130
detach(sensors.mspct)
attach(sensors.mspct)
with(LICOR_LI_190, max(w.length))
## [1] 798.8367
detach(sensors.mspct)
with(sensors.mspct, wl_range(LICOR_LI_190))
## [1] 381.8537 798.8367
