Margin points can supplement a 2d display with annotations. Margin points
can highlight individual values along a margin. The geometries
geom_x_margin_point()
and geom_y_margin_point()
behave
similarly geom_vline()
and geom_hline()
and share their "double
personality" as both annotations and geometries.
Usage
geom_x_margin_point(
mapping = NULL,
data = NULL,
stat = "identity",
position = "identity",
...,
xintercept,
sides = "b",
point.shift = 0.017,
na.rm = FALSE,
show.legend = FALSE,
inherit.aes = FALSE
)
geom_y_margin_point(
mapping = NULL,
data = NULL,
stat = "identity",
position = "identity",
...,
yintercept,
sides = "l",
point.shift = 0.017,
na.rm = FALSE,
show.legend = FALSE,
inherit.aes = FALSE
)
Arguments
- mapping
The aesthetic mapping, usually constructed with
aes
. Only needs to be set at the layer level if you are overriding the plot defaults.- data
A layer specific dataset - only needed if you want to override the plot defaults.
- stat
The statistical transformation to use on the data for this layer, as a string.
- position
Position adjustment, either as a string, or the result of a call to a position adjustment function.
- ...
other arguments passed on to
layer
. This can include aesthetics whose values you want to set, not map. Seelayer
for more details.- xintercept, yintercept
numeric Parameters that control the position of the marginal points. If these are set, data, mapping and show.legend are overridden.
- sides
A string that controls which sides of the plot the rugs appear on. It can be set to a string containing any combination of
"trbl"
, for top, right, bottom, and left.- point.shift
numeric value expressed in npc units for the shift of the rug points inwards from the edge of the plotting area.
- na.rm
If
FALSE
(the default), removes missing values with a warning. IfTRUE
silently removes missing values.- show.legend
logical. Should this layer be included in the legends?
NA
, the default, includes if any aesthetics are mapped.FALSE
never includes, andTRUE
always includes.- inherit.aes
If
FALSE
, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g.borders
.
See also
Other Geometries for marginal annotations in ggplots:
geom_x_margin_arrow()
,
geom_x_margin_grob()
Examples
p <- ggplot(mtcars, aes(wt, mpg)) +
geom_point()
p
p + geom_x_margin_point(xintercept = 3.5)

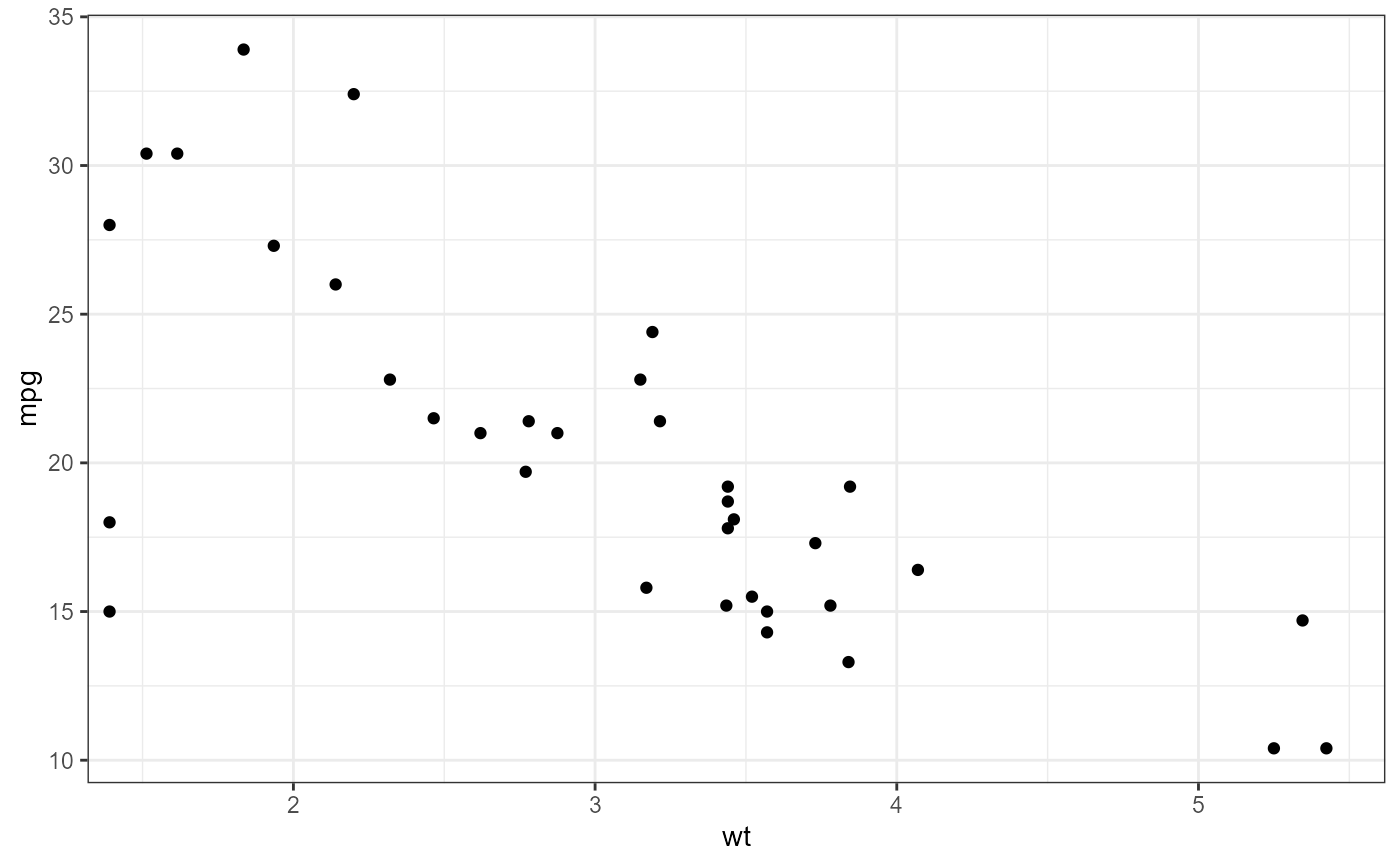

p + geom_y_margin_point(yintercept = c(18, 28, 15))

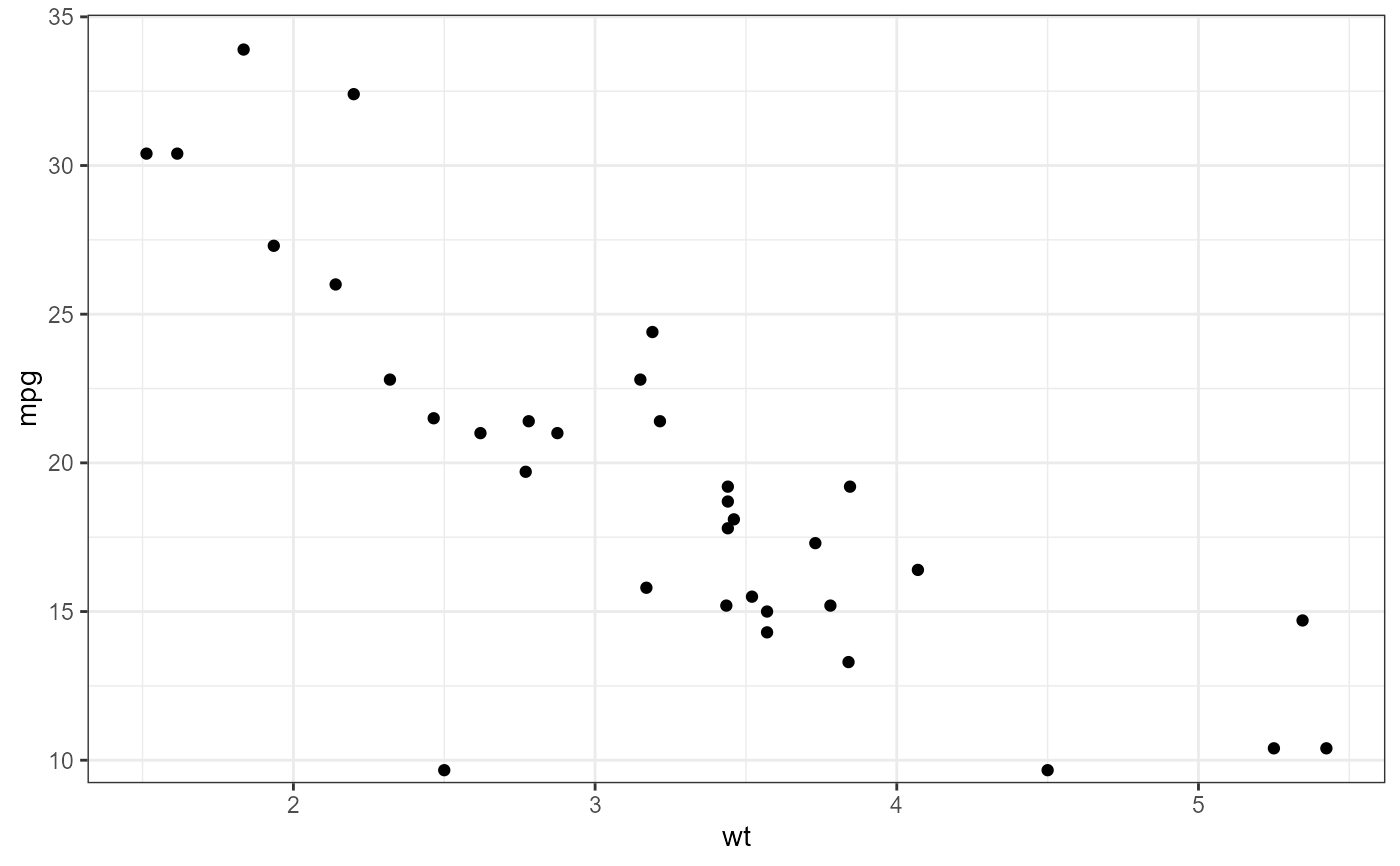

p + geom_x_margin_point(data = data.frame(x = c(2.5, 4.5)),
mapping = aes(xintercept = x))

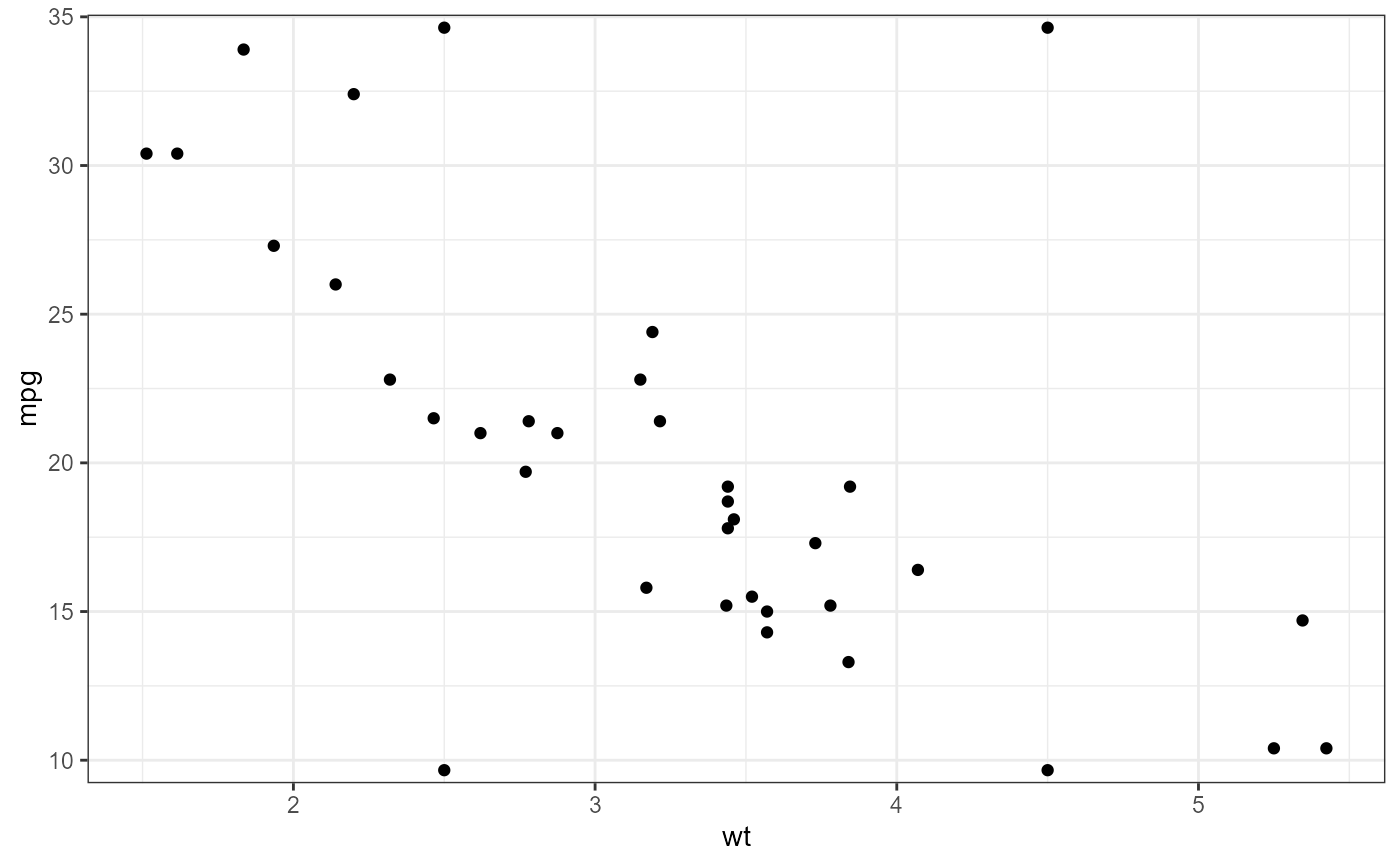

p + geom_x_margin_point(data = data.frame(x = c(2.5, 4.5)),
mapping = aes(xintercept = x),
sides = "tb")
