Wavenumber x-scale — scale_x_wavenumber

Scale x continuous with defaults suitable for wavelengths expressed as wavenumbers [\(m^{-2}\)].

Usage

scale_x_wavenumber_continuous(
  unit.exponent = -6,
  name = w_number_label(unit.exponent = unit.exponent, label.text = label.text,
    axis.symbols = axis.symbols),
  breaks = scales::pretty_breaks(n = 7),
  labels = SI_pl_format(exponent = -unit.exponent),
  label.text = axis_labels()[["w.number"]],
  axis.symbols = getOption("ggspectra.axis.symbols", default = TRUE),
  ...
)

Arguments

unit.exponent: integer
name: The name of the scale, used for the axis-label.
breaks: The positions of ticks or a function to generate them.
labels: The tick labels or a function to generate them from the tick positions.
label.text: character Textual portion of the labels.
axis.symbols: logical If TRUE symbols of the quantities are added to the name. Supported only by format = "R.expression".
...: other named arguments passed to scale_y_continuous

Details

This scale automates the generation of axis labels when the variable mapped to the x aesthetic contains numeric values for wavelengths expressed wavenumbers. This is not how spectral data are stored in all the packages of the R for Photobiology suite and can be used in plots built with ggplot2() with explicit mapping using a conversion function. If desired, a secondary axis can be added manually as described in sec_axis.

Note

This function only alters two default arguments, please, see documentation for scale_continuous

Examples


ggplot(sun.spct, aes(x = wl2wavenumber(w.length), y = s.e.irrad)) +
  geom_line() +
  scale_x_wavenumber_continuous()

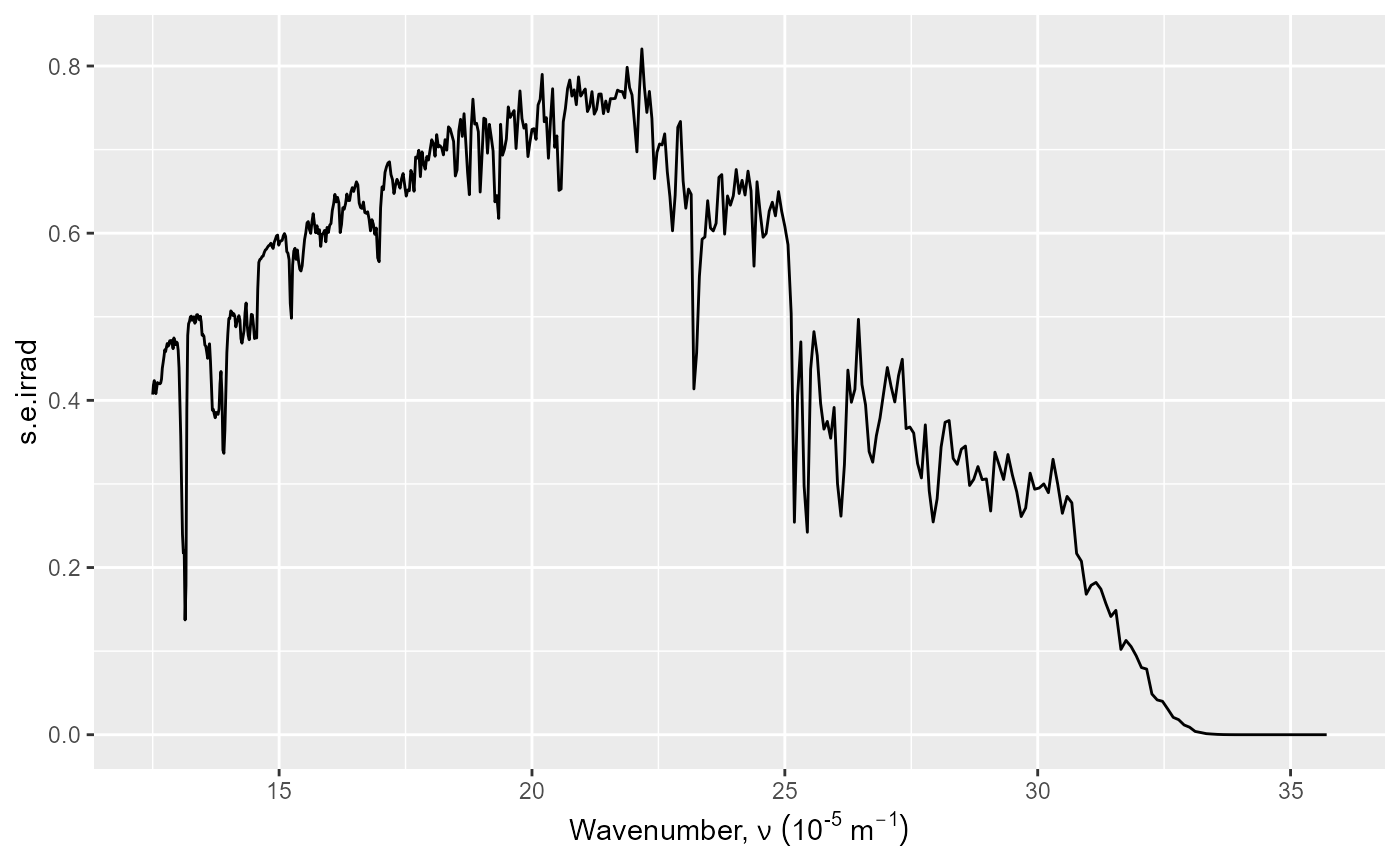

ggplot(sun.spct, aes(x = wl2wavenumber(w.length), y = s.e.irrad)) +
  geom_line() +
  scale_x_wavenumber_continuous(unit.exponent = -5)
