`position_nudge_line()`

is generally useful for adjusting the starting
position of labels or text to be repelled while preserving the original
position as the start of the segments. The difference compared to
`position_nudge_center`

is that the nudging is away from from a
line or curve fitted to the data points or supplied as coefficients. While
`position_nudge_center()`

is most useful for "round-shaped", vertically-
or horizontally elongated clouds of points, `position_nudge_line()`

is
most suitable when observations follow a linear or curvilinear relationship
between *x* and *y* values. In contrast to
`position_nudge`

, `position_nudge_line()`

returns
in `data` both the original coordinates and the nudged coordinates.

## Arguments

- x, y
Amount of vertical and horizontal distance to move. A numeric vector of length 1 or longer.

- xy_relative
Nudge relative to

*x*and*y*data expanse, ignored unless`x`

and`y`

are both`NA`

s.- abline
a vector of length two giving the intercept and slope.

- method
One of

`"spline"`

,`"lm"`

or`"auto"`

.- formula
A model formula for

`lm`

when`method = "lm"`

. Ignored otherwise.- direction
One of

`"automatic"`

,`"none"`

, or`"split"`

.- line_nudge
A positive multiplier >= 1, increasing nudging away from the curve or line compared to nudging from points.

- kept.origin
One of

`"original"`

or`"none"`

.

## Details

The default amount of nudging is 3
*x* and *y* axes, which in most cases is good. In most cases it is best to
apply nudging along a direction perpendicular to the line or curve, if this
is the aim, passing an argument to only one of `x`

, `y`

or
`xy_relative`

will be enough. When `direction = "split"`

nudging
is away from an implicit line or curve on either side with positive
nudging. The line or curve can be smooth spline or linear regression fitted
on-the-fly to the data points, or a straight line defined by its
coefficients passed to `abline`

. The fitting is well defined only if
the observations fall roughly on a curve or straight line that is monotonic
in `y`

. By means of `line_nudge`

one can increment nudging away
from the line or curve compared to away from the points, which is useful
for example to keep labels outside of a confidence band. Direction defaults
to `"split"`

when `line_nudge`

> 1, and otherwise to
`"none"`

.

## Note

For `method = "lm"`

only model formulas corresponding to
polynomials with no missing terms are supported. If using`poly`

in the model formula, `raw = TRUE`

is required.

In practice, `x`

and `y`

should have the same sign for nudging to
work correctly.

This position is most useful when labeling points conforming a cloud along an arbitrary curve or line.

## See also

`position_nudge`

,
`position_nudge_repel`

.

Other position adjustments:
`position_dodgenudge()`

,
`position_jitternudge()`

,
`position_nudge_center()`

,
`position_nudge_keep()`

,
`position_nudge_to()`

,
`position_stacknudge()`

## Examples

```
set.seed(16532)
df <- data.frame(
x = -10:10,
y = (-10:10)^2,
yy = (-10:10)^2 + rnorm(21, 0, 4),
yyy = (-10:10) + rnorm(21, 0, 4),
l = letters[1:21]
)
# Setting the nudging distance
ggplot(df, aes(x, y, label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text(position = position_nudge_line())

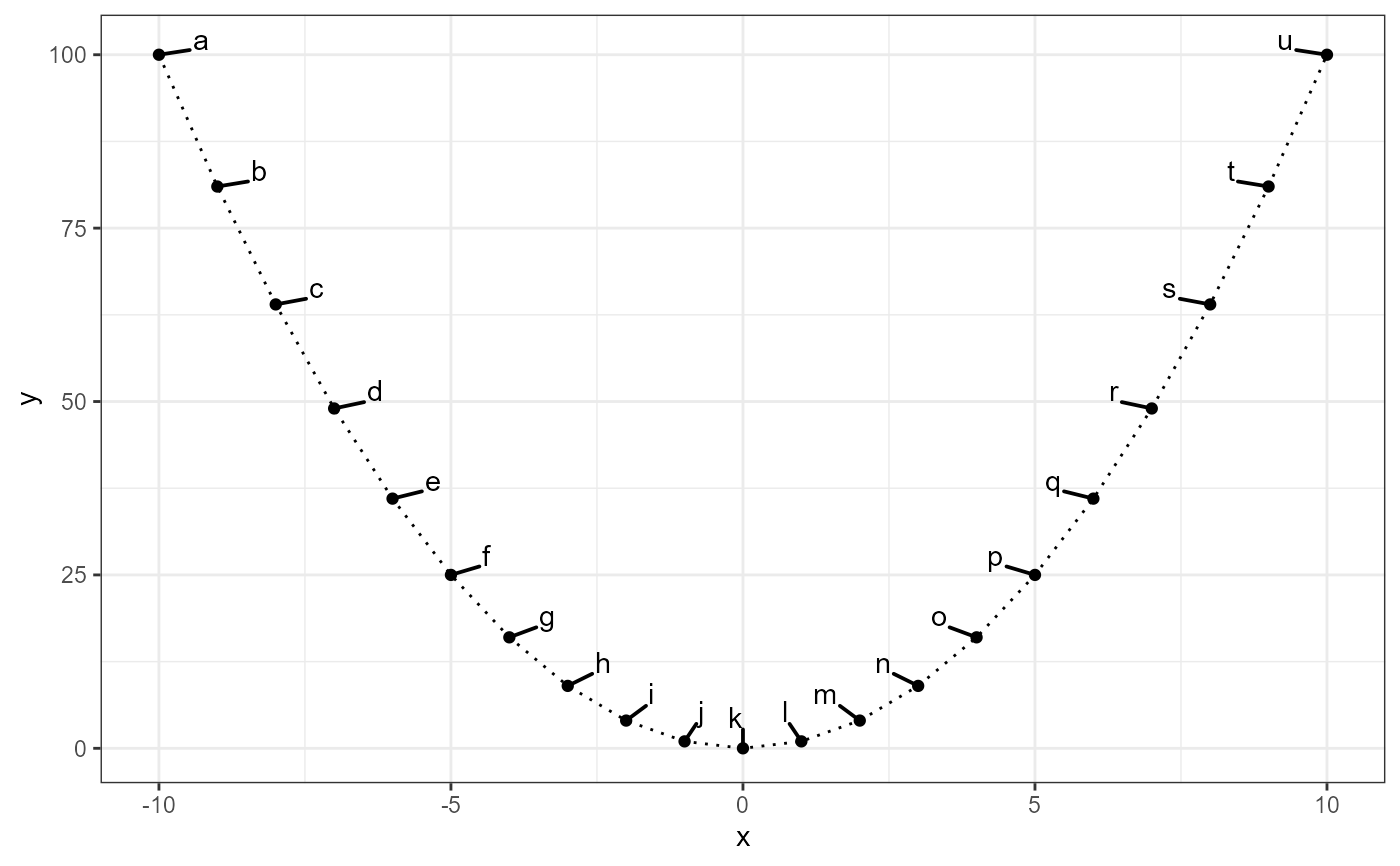

ggplot(df, aes(x, y, label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text_s(position = position_nudge_line())

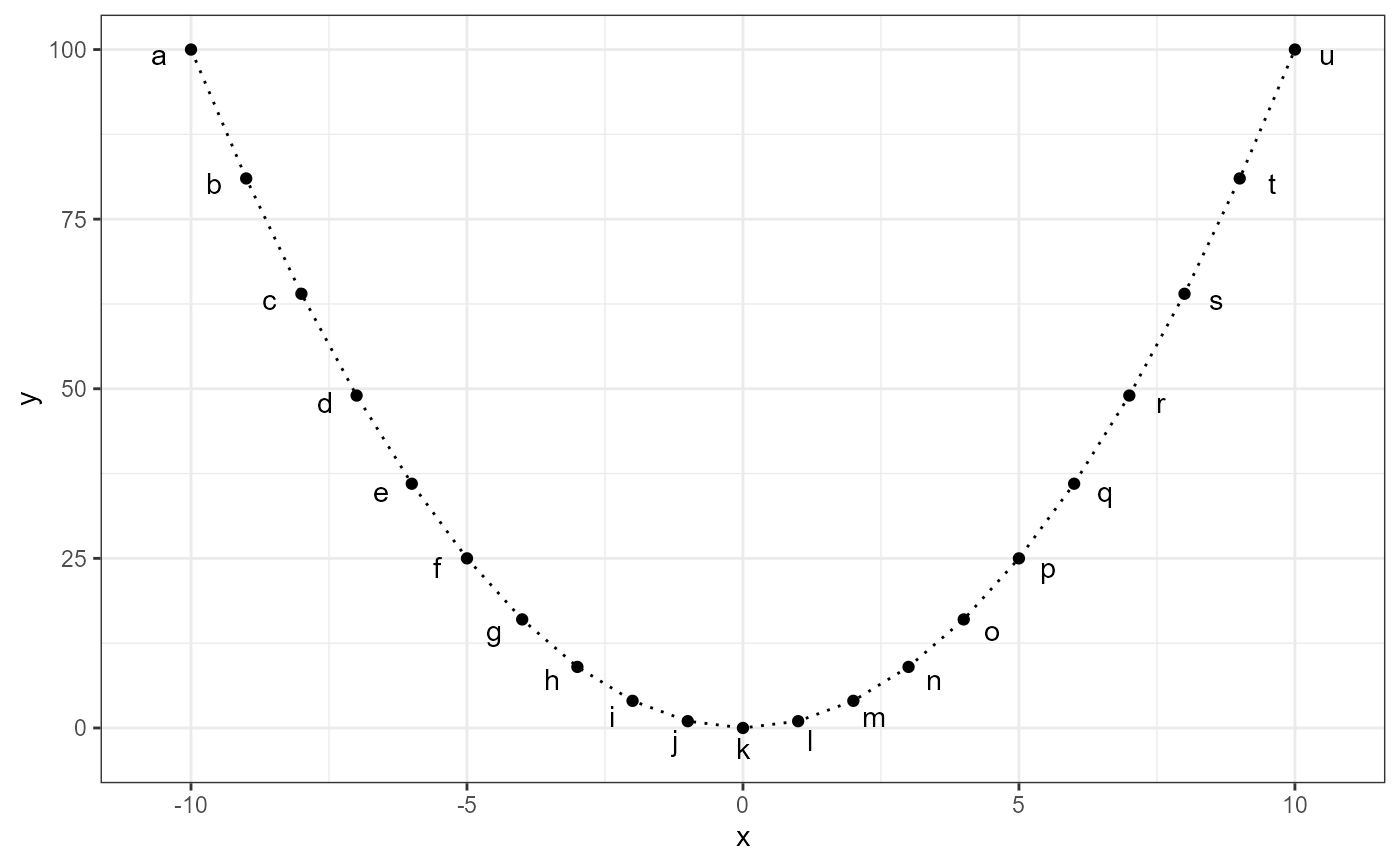

ggplot(df, aes(x, y, label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text(position = position_nudge_line(xy_relative = -0.03))

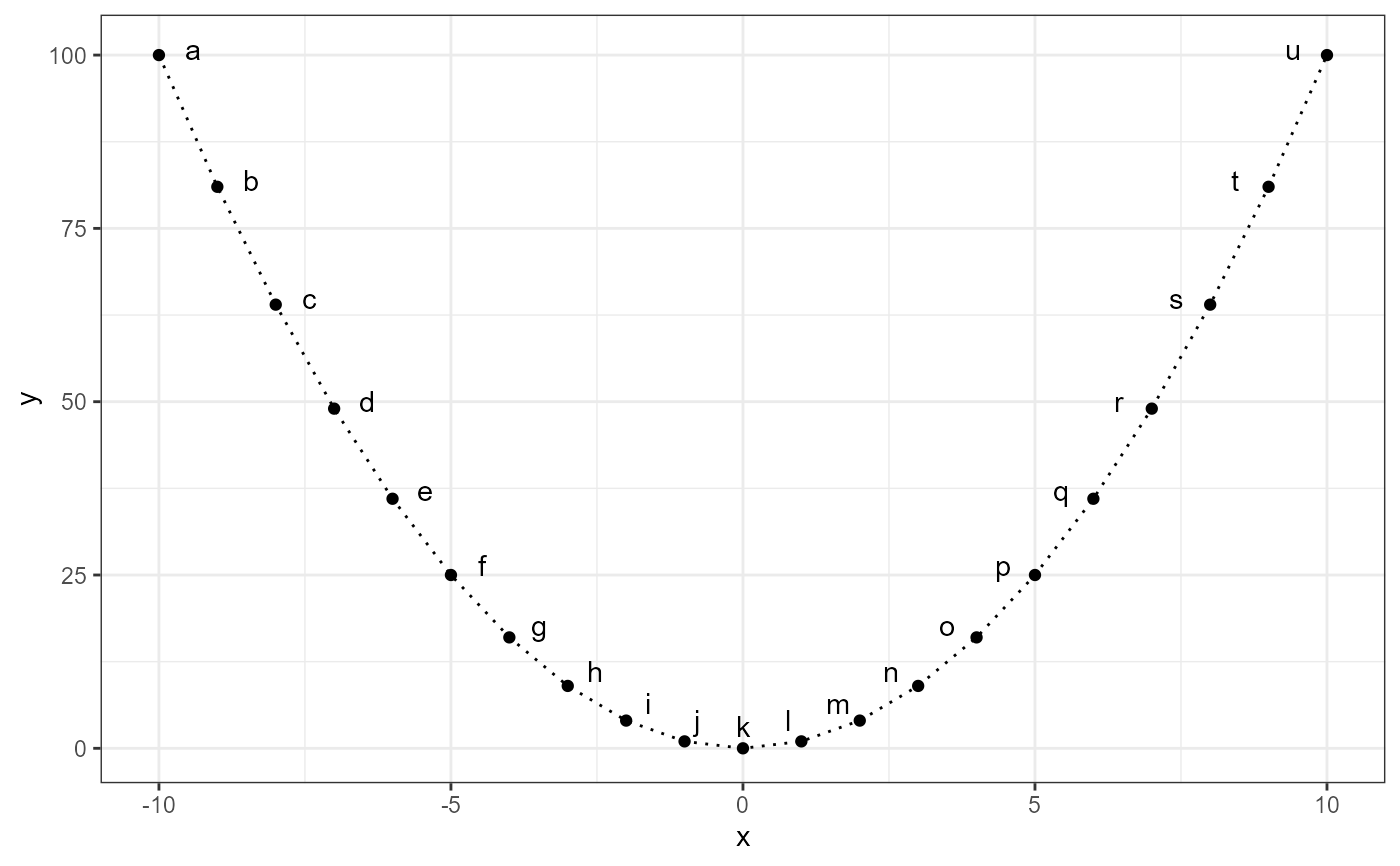

ggplot(df, aes(x, y, label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text(position = position_nudge_line(x = 0.6, y = 3.2))
ggplot(df, aes(x, y, label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text(position = position_nudge_line(x = -0.6, y = -4))

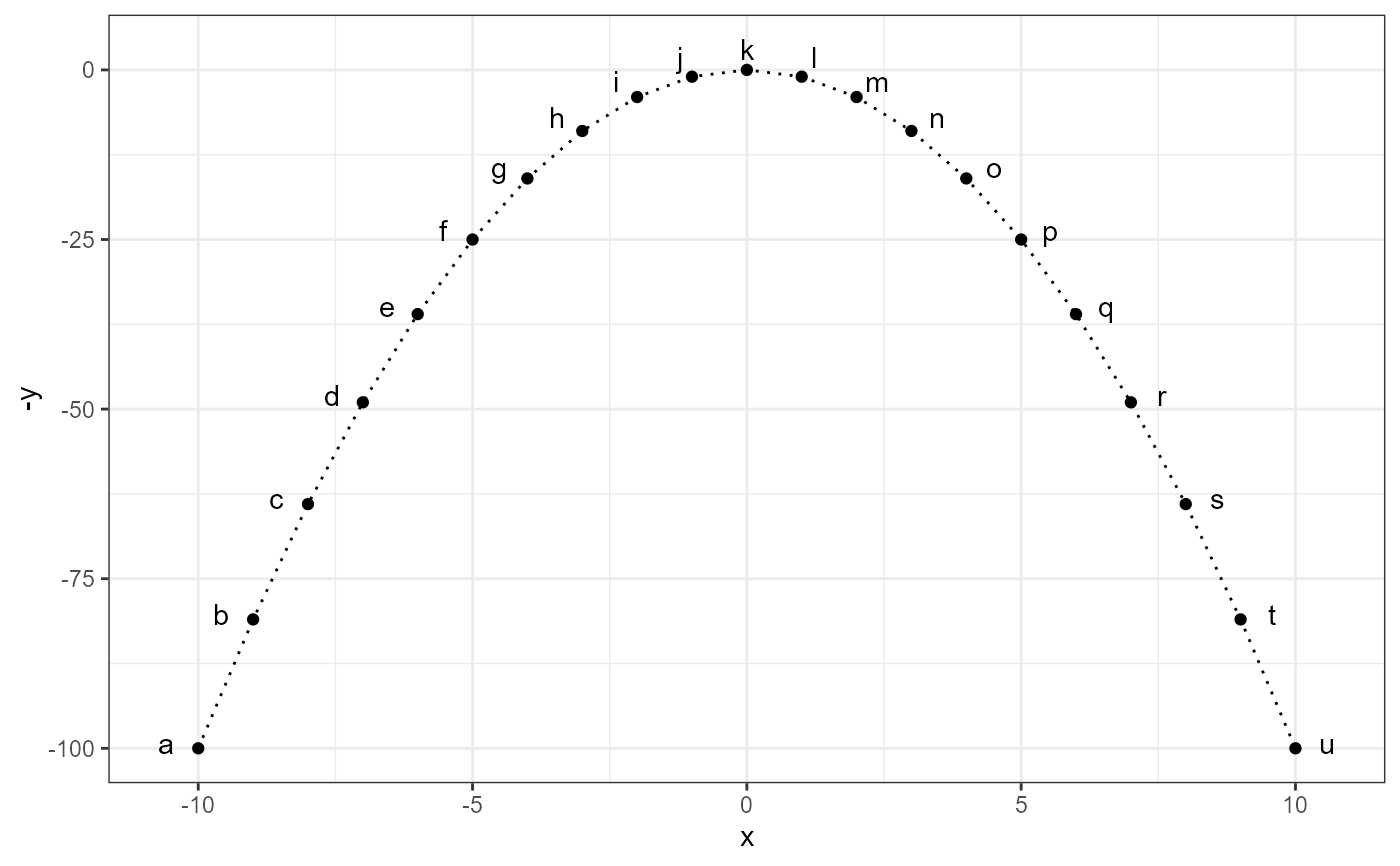

# Other curves, using defaults
ggplot(df, aes(x, -y, label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text(position = position_nudge_line())
ggplot(subset(df, x >= 0), aes(y, sqrt(y), label = l)) +
geom_line(linetype = "dotted") +
geom_point() +
geom_text(position = position_nudge_line())
# Points scattered near a curve or line, we use 'direction = "split"'
ggplot(df, aes(x)) +
geom_line(aes(y = y), linetype = "dotted") +
geom_point(aes(y = yy)) +
geom_text(aes(y = yy, label = l),
position = position_nudge_line(direction = "split"))
ggplot(subset(df, x >= 0), aes(y, yy)) +
stat_smooth(method = "lm", formula = y ~ x) +
geom_point() +
geom_text(aes(label = l),
position = position_nudge_line(direction = "split"))

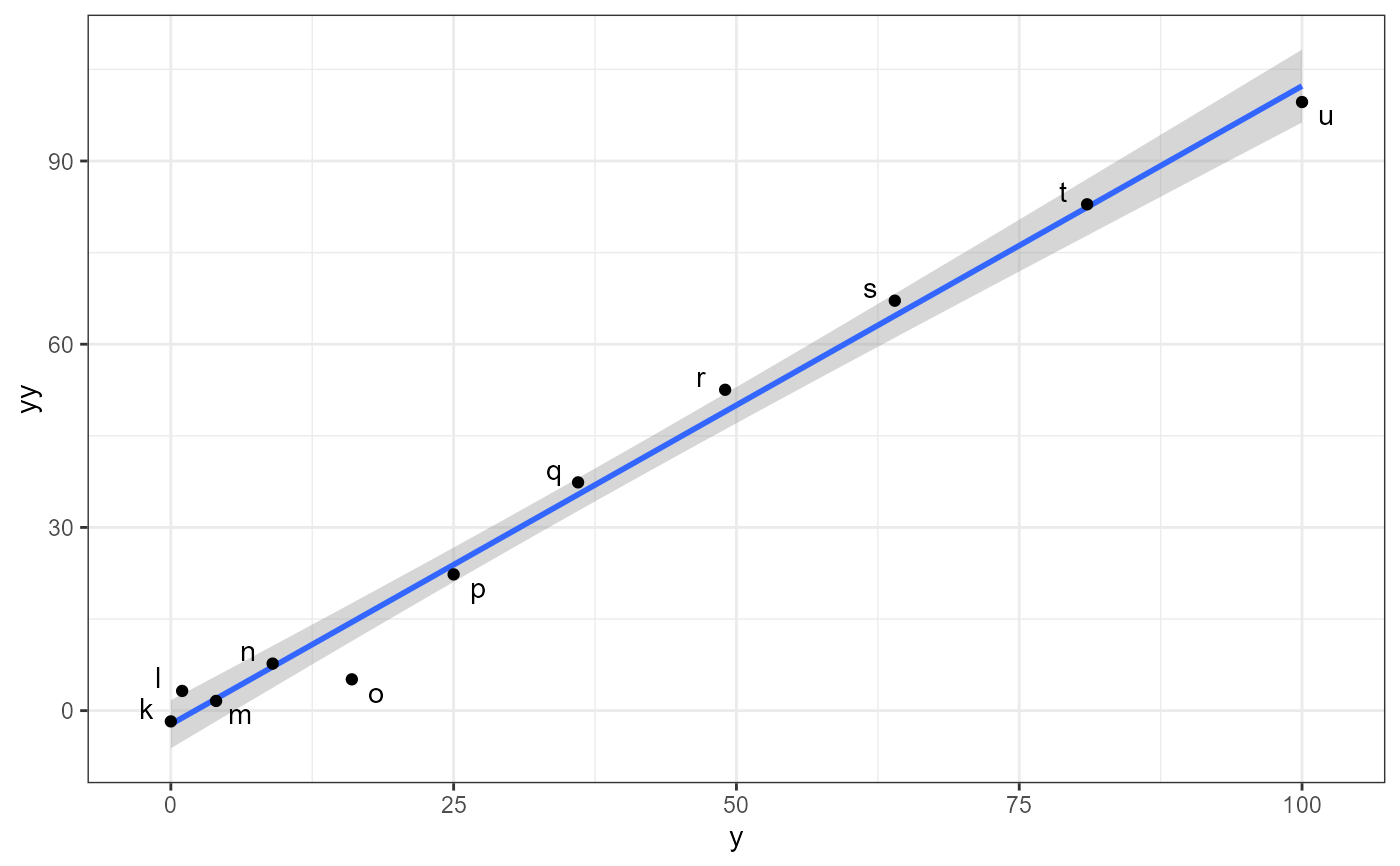

# increasing the nudging for labels near the line
ggplot(subset(df, x >= 0), aes(y, yy)) +
stat_smooth(method = "lm", formula = y ~ x) +
geom_point() +
geom_text(aes(label = l),
position = position_nudge_line(line_nudge = 2,
direction = "split"))
# fitting a linear model instead of the default spline
ggplot(subset(df, x >= 0), aes(y, yy)) +
stat_smooth(method = "lm", formula = y ~ x) +
geom_point() +
geom_text(aes(label = l),
position = position_nudge_line(method = "lm",
direction = "split"))
ggplot(subset(df, x >= 0), aes(x, x^2)) +
stat_smooth(method = "lm", formula = y ~ poly(x, 2, raw = TRUE)) +
geom_point() +
geom_text(aes(label = l),
position = position_nudge_line(method = "lm",
formula = y ~ poly(x, 2, raw = TRUE)))
```
