Integrate ranges under curve.

stat_wb_hbar computes means under a curve. It first integrates the area under a spectral curve and also the mean expressed per nanaometre of wavelength for each waveband in the input. Sets suitable default aesthetics for geoms "errorbarh" and "hline" from 'ggplot', and "linerangeh", and "errorbarh" from 'ggstance'. x-scale transformations and axis flipping are currently not supported.

Usage

stat_wb_hbar(
  mapping = NULL,
  data = NULL,
  geom = "linerange",
  position = "identity",
  ...,
  w.band = NULL,
  integral.fun = integrate_xy,
  chroma.type = "CMF",
  ypos.fixed = NULL,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

The aesthetic mapping, usually constructed with aes or aes_. Only needs to be set at the layer level if you are overriding the plot defaults.

data

A layer specific dataset - only needed if you want to override the plot defaults.

geom

The geometric object to use display the data

position

The position adjustment to use for overlapping points on this layer

...

other arguments passed on to layer. This can include aesthetics whose values you want to set, not map. See layer for more details.

w.band

a waveband object or a list of waveband objects or numeric vector of at least length two.

integral.fun

function on $x$ and $y$.

chroma.type

character one of "CMF" (color matching function) or "CC" (color coordinates) or a chroma_spct object.

ypos.fixed

numeric If not NULL used a constant value returned in y.

na.rm

a logical value indicating whether NA values should be stripped before the computation proceeds.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. borders.

Value

A data frame with one row for each waveband object in the argument to w.band. Wavebeand outside the range of the spectral data are trimmed or discarded.

Note

If the argument passed to w.band is a BSWF it is silently converted to a wavelength range and the average of spectral values without any weighting is returned as default value for y.

Computed variables

What it is named integral below is the result of appying integral.fun, with default integrate_xy.

x

w.band-midpoint

xmin

w.band minimum

xmax

w.band maximum

ymin

data$y minimum

ymax

data$y maximum

yint

data$y integral for the range of w.band

ymean

yint divided by wl_expanse(w.band)

y

ypos.fixed or mean of data

wb.color

color of the w.band

wb.name

label of w.band

Default aesthetics

Set by the statistic and available to geoms.

xmin

..xmin..

xmax

..xmax..

yintercept

..ymean..

height

(..ymax.. - ..ymin..) * 2e-2

color

..wb.color..

Required aesthetics

Required by the statistic and need to be set with aes().

x

numeric, wavelength in nanometres

y

numeric, a spectral quantity

See also

Other stats functions: stat_color(), stat_find_qtys(), stat_find_wls(), stat_label_peaks(), stat_peaks(), stat_spikes(), stat_wb_box(), stat_wb_column(), stat_wb_contribution(), stat_wb_irrad(), stat_wb_label(), stat_wb_mean(), stat_wb_relative(), stat_wb_sirrad(), stat_wb_total(), stat_wl_strip(), stat_wl_summary()

Examples

library(photobiologyWavebands)
# ggplot() methods for spectral objects set a default mapping for x and y.

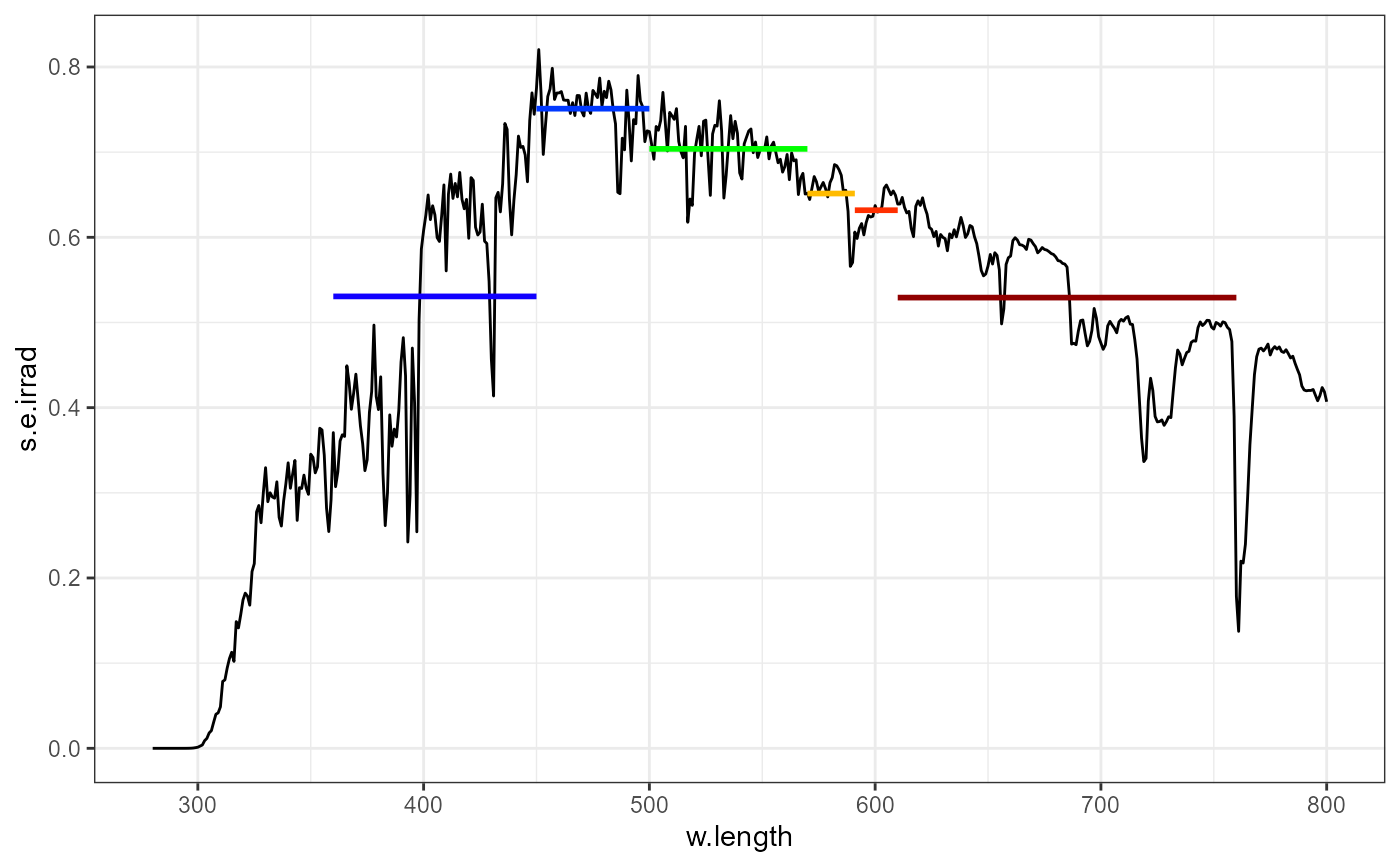

ggplot(sun.spct) +
  geom_line() +
  stat_wb_hbar(w.band = VIS_bands(), size = 1) +
  scale_color_identity() +
  theme_bw()
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.

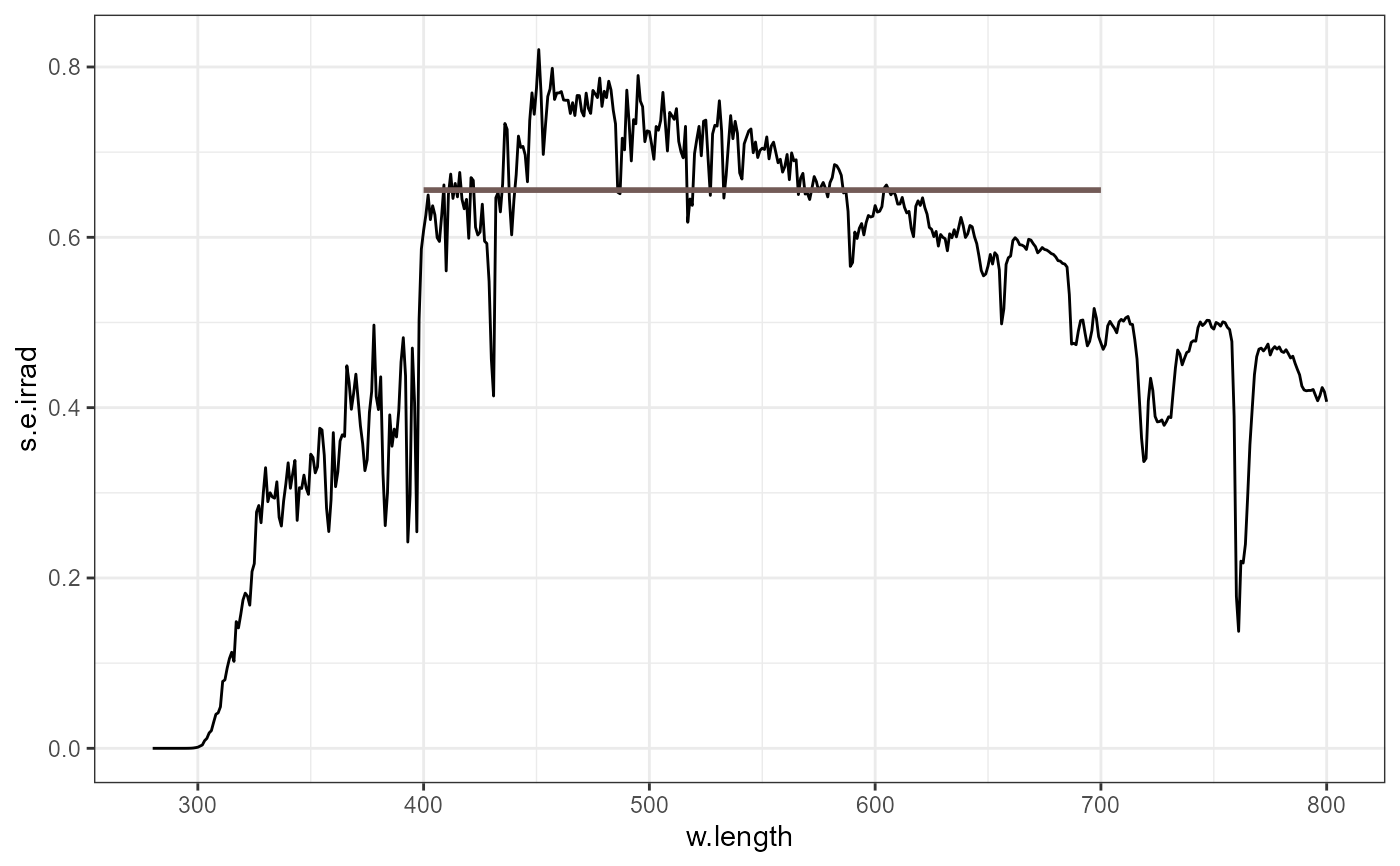

ggplot(sun.spct) +
  geom_line() +
  stat_wb_hbar(w.band = PAR(), size = 1) +
  scale_color_identity() +
  theme_bw()

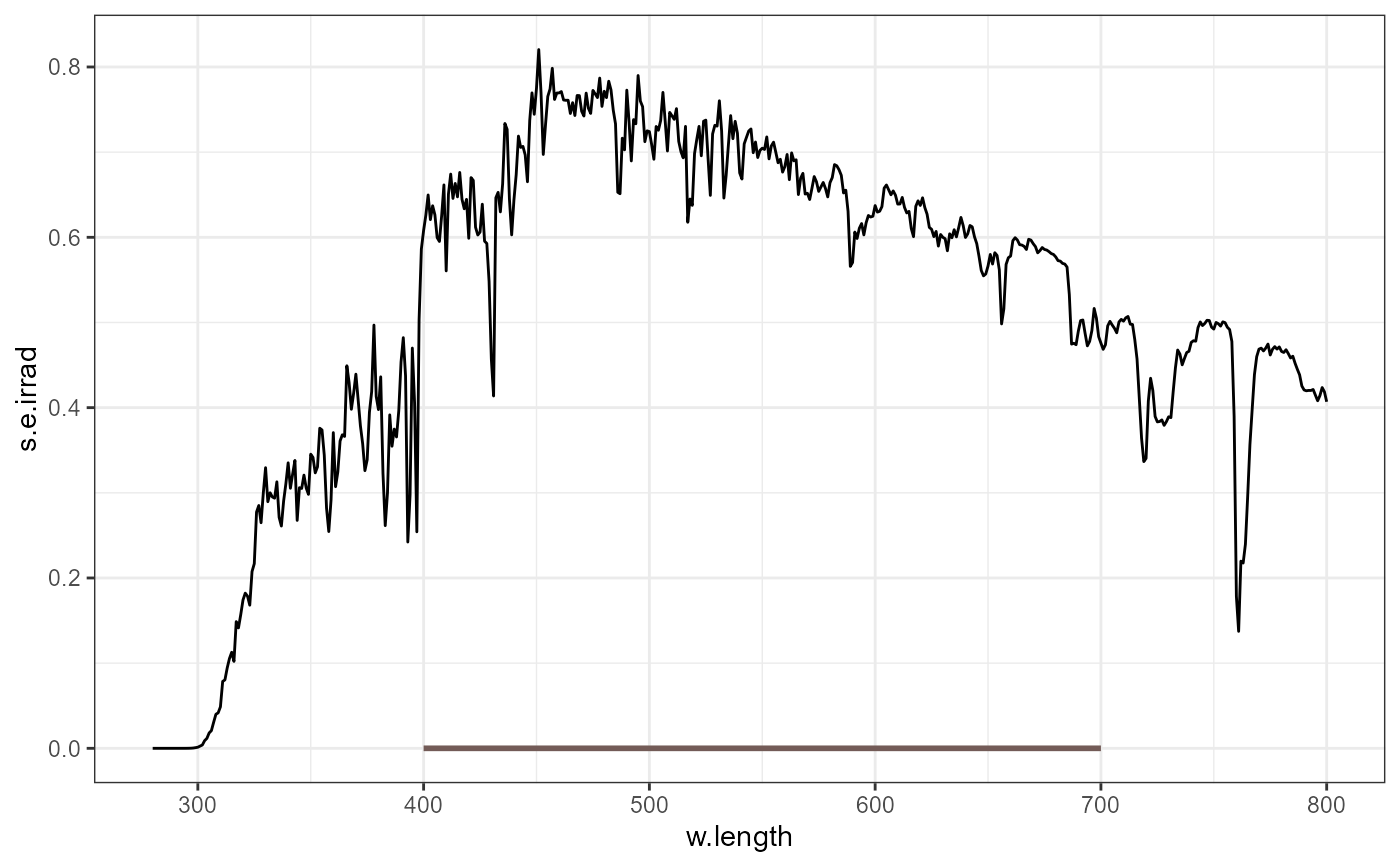

ggplot(sun.spct) +
  geom_line() +
  stat_wb_hbar(w.band = PAR(), size = 1, ypos.fixed = 0) +
  scale_color_identity() +
  theme_bw()

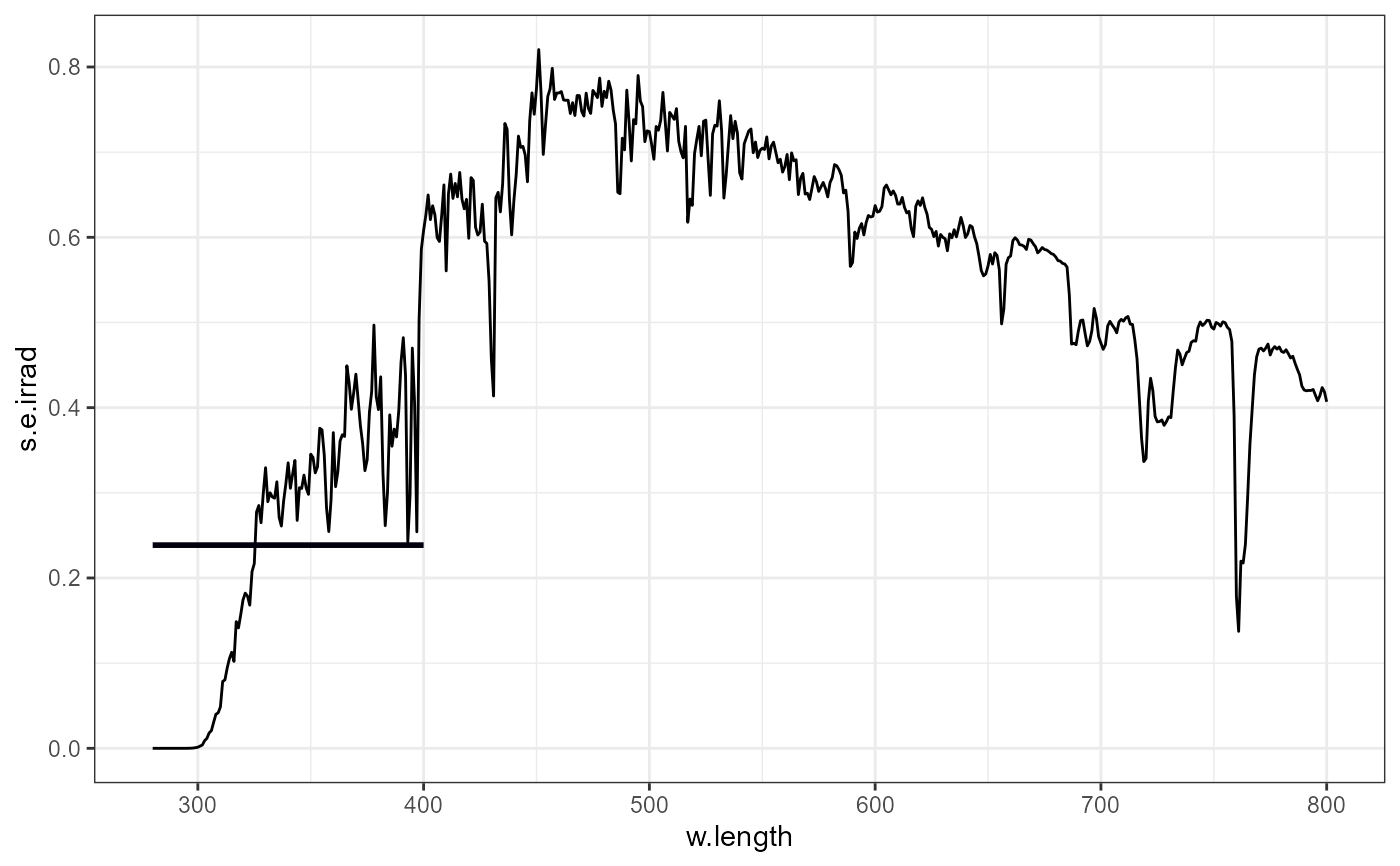

ggplot(sun.spct) +
  geom_line() +
  stat_wb_hbar(w.band = CIE(), size = 1) +
  scale_color_identity() +
  theme_bw()
