Colour and fill scales for ternary outcomes

Source: R/scale-colour-outcome.r
scale_colour_outcome.Rd

Manual scales for colour and fill aesthetics with defaults suitable for the three way outcome from some statistical tests.

Usage

scale_colour_outcome(
  ...,
  name = "Outcome",
  ns.colour = "grey80",
  up.colour = "red",
  down.colour = "dodgerblue2",
  de.colour = "goldenrod",
  na.colour = "black",
  values = "outcome:updown",
  drop = TRUE,
  aesthetics = "colour"
)

scale_color_outcome(
  ...,
  name = "Outcome",
  ns.colour = "grey80",
  up.colour = "red",
  down.colour = "dodgerblue2",
  de.colour = "goldenrod",
  na.colour = "black",
  values = "outcome:updown",
  drop = TRUE,
  aesthetics = "colour"
)

scale_fill_outcome(
  ...,
  name = "Outcome",
  ns.colour = "grey80",
  up.colour = "red",
  down.colour = "dodgerblue2",
  de.colour = "goldenrod",
  na.colour = "black",
  values = "outcome:both",
  drop = TRUE,
  aesthetics = "fill"
)

Arguments

...

other named arguments passed to scale_colour_manual.

name

The name of the scale, used for the axis-label.

ns.colour, down.colour, up.colour, de.colour

The colour definitions to use for each of the three possible outcomes.

na.colour

colour definition used for NA.

values

a set of aesthetic values to map data values to. The values will be matched in order (usually alphabetical) with the limits of the scale, or with breaks if provided. If this is a named vector, then the values will be matched based on the names instead. Data values that don't match will be given na.value. In addition the special values "outcome:updown", "outcome:de" and "outcome:both" set predefined values, with "outcome:both" as default.

drop

logical Should unused factor levels be omitted from the scale? The default, TRUE, uses the levels that appear in the data; FALSE uses all the levels in the factor.

aesthetics

Character string or vector of character strings listing the name(s) of the aesthetic(s) that this scale works with. This can be useful, for example, to apply colour settings to the colour and fill aesthetics at the same time, via aesthetics = c("colour", "fill").

Details

These scales only alter the breaks, values, and na.value default arguments of scale_colour_manual() and scale_fill_manual(). Please, see documentation for scale_manual for details.

Note

In 'ggplot2' (3.3.4, 3.3.5, 3.3.6) scale_colour_manual() and scale_fill_manual() do not obey drop, most likely due to a bug as this worked in version 3.3.3 and earlier. This results in spureous levels in the plot legend when using versions 3.3.4, 3.3.5, 3.3.6 of 'ggplot2'.

See also

Other Functions for quadrant and volcano plots: FC_format(), outcome2factor(), scale_shape_outcome(), scale_y_Pvalue(), xy_outcomes2factor()

Examples


set.seed(12346)
outcome <- sample(c(-1, 0, +1), 50, replace = TRUE)
my.df <- data.frame(x = rnorm(50),
                    y = rnorm(50),
                    outcome2 = outcome2factor(outcome, n.levels = 2),
                    outcome3 = outcome2factor(outcome))

ggplot(my.df, aes(x, y, colour = outcome3)) +
  geom_point() +
  scale_colour_outcome() +
  theme_bw()


ggplot(my.df, aes(x, y, colour = outcome2)) +
  geom_point() +
  scale_colour_outcome() +
  theme_bw()

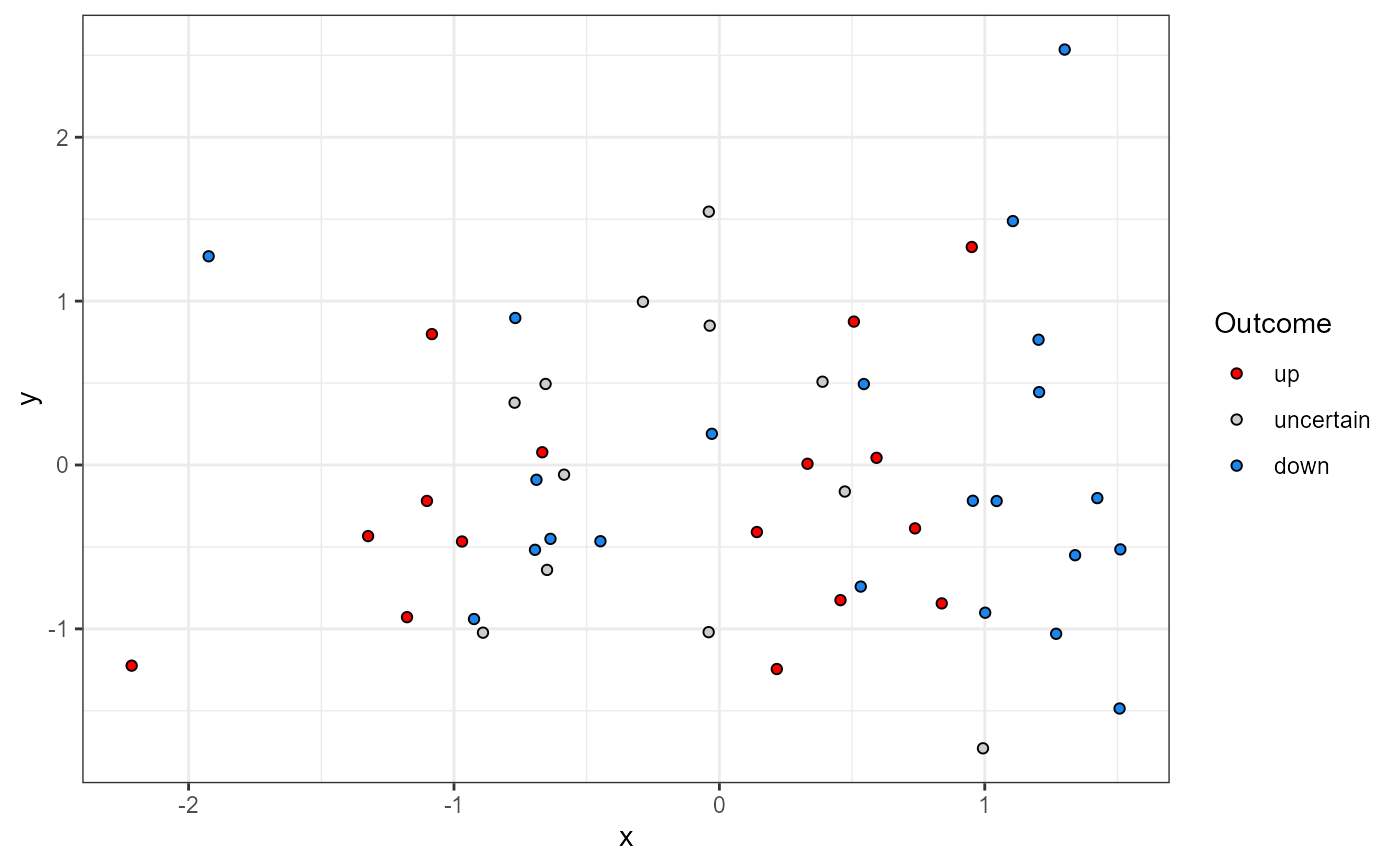

ggplot(my.df, aes(x, y, fill = outcome3)) +
  geom_point(shape = 21) +
  scale_fill_outcome() +
  theme_bw()
